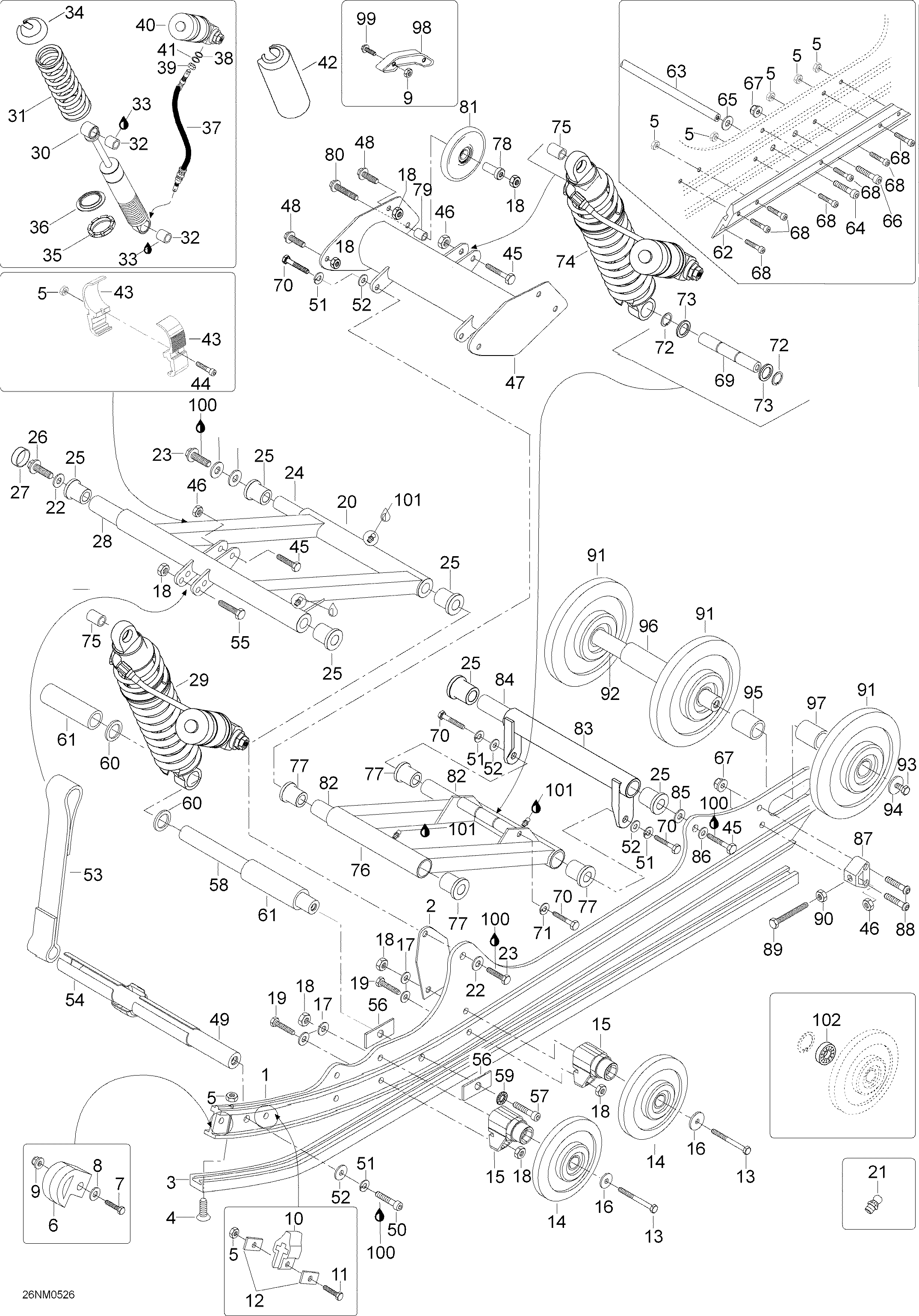

08- Rear Suspension для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1605250436 RunnerRunner
-
2605452387 Support plateSupport plate
-
3605351309 ShoeShoe
-
440059 Socket head screw M6 x 60Socket head screw M6 x 60
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6605348954 Runner protectorRunner protector
-
740031 Hex. screw M6 x 25Hex. screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
105442328 Rubber stopperRubber stopper
-
1140032 Hex. screw M6 x 30Hex. screw M6 x 30
-
12548470 WasherWasher
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503190802 Idler wheel, 135/BlackIdler wheel, 135/Black
-
15605450182 SupportSupport
-
16503183100 Aluslevy M8 hardenedAluslevy M8 hardened
-
1720104 Aluslevy M8 hardenedAluslevy M8 hardened
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
1940037 Hex. screw M8 x 25Hex. screw M8 x 25
-
205145588 Front armFront arm
-
2134011 Grease nippleGrease nipple
-
2220090 WasherWasher
-
2340099 Hex. screw M12 x 45Hex. screw M12 x 45
-
24605352730 ShaftShaft
-
2531024 CushionCushion
-
2640243 Hex. screw M12 x 60Hex. screw M12 x 60
-
275448025 CapCap
-
285346135 ShaftShaft
-
29605351554 Shock ass'y, front arm. Includes 29 to 41Shock ass'y, front arm. Includes 29 to 41
-
3023210 Shock, front armShock, front arm
-
3023211 Shock, rear armShock, rear arm
-
3125073 Spring, front armSpring, front arm
-
3125056 Spring, rear armSpring, rear arm
-
3231094 CushionCushion
-
33320006 Loctite 641, 50mlLoctite 641, 50ml
-
345346750 Spring stopperSpring stopper
-
35230048 CamCam
-
36230049 Spring guideSpring guide
-
37230111 Hose, front arm shockHose, front arm shock
-
37619300001 Hose, rear arm shockHose, rear arm shock
-
38230112 WasherWasher
-
40619300002 ReservoirReservoir
-
41619300003 O-ringO-ring
-
425346754 ProtectorProtector
-
43605352257 BracketBracket
-
4440806 Socket head screw M6 x 50Socket head screw M6 x 50
-
4540016 Hex. screw M10 x 45Hex. screw M10 x 45
-
4633012 Elastic stop nut M10Elastic stop nut M10
-
47605249846 Upper armUpper arm
-
4840058 Locking screw M8 x 20Locking screw M8 x 20
-
495343471 ShaftShaft
-
5040134 Socket head screw M10 x 45Socket head screw M10 x 45
-
5120047 Lock washer B10Lock washer B10
-
5220105 Washer, hardened, 10mmWasher, hardened, 10mm
-
53605449385 Stopper strapStopper strap
-
54605349381 LimiterLimiter
-
5540008 Hex. screw M8 x 45Hex. screw M8 x 45
-
56605449294 Support plateSupport plate
-
5740371 Socket head screw M12 x 55Socket head screw M12 x 55
-
58605350691 ShaftShaft
-
5920074 Lock washer 12mmLock washer 12mm
-
6031013 ShimShim
-
61605349896 SleeveSleeve
-
62605352384 Runner reinforcementRunner reinforcement
-
63605449400 ShaftShaft
-
6440135 Socket head screw M8 x 30Socket head screw M8 x 30
-
6520004 Washer A8,4Washer A8,4
-
6640289 Socket head screw M8 x 25Socket head screw M8 x 25
-
6733201 Elastic flanged nut M8Elastic flanged nut M8
-
6840052 Socket head screw M6 x 20Socket head screw M6 x 20
-
69605451897 ShaftShaft
-
7040014 Hex. screw M10 x 40Hex. screw M10 x 40
-
7120068 Lock washer 10mmLock washer 10mm
-
7231007 CirclipCirclip
-
7331091 ShimShim
-
74605351555 Shock ass'y, rear arm. Includes 30 to 41Shock ass'y, rear arm. Includes 30 to 41
-
755446652 SleeveSleeve
-
76605349313 Rear armRear arm
-
7731027 CushionCushion
-
785446700 SleeveSleeve
-
795446701 SleeveSleeve
-
8040376 Locking screw M8 x 80Locking screw M8 x 80
-
8146027 Idler wheelIdler wheel
-
82605352731 ShaftShaft
-
835345535 Rear armRear arm
-
84605352732 ShaftShaft
-
8520116 WasherWasher
-
86512056700 Lock washerLock washer
-
875341633 TensionerTensioner
-
8840392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8940239 Hex. screw M10 x 100Hex. screw M10 x 100
-
9033004 Nut M10Nut M10
-
91503190232 Idler wheel 180/blackIdler wheel 180/black
-
925341511 ShaftShaft
-
9340050 Hex. screw M10 x 35Hex. screw M10 x 35
-
94503183300 Aluslevy M10 hardenedAluslevy M10 hardened
-
955441512 SleeveSleeve
-
965448027 SleeveSleeve
-
975444099 SleeveSleeve
-
985343191 Slide partSlide part
-
9940064 Locking screw M6 x 40Locking screw M6 x 40
-
100293800005 Loctite 271, 10mlLoctite 271, 10ml
-
101293550033 Synthetic grease, 400Synthetic grease, 400
-
102503190795 Ball bearingBall bearing
