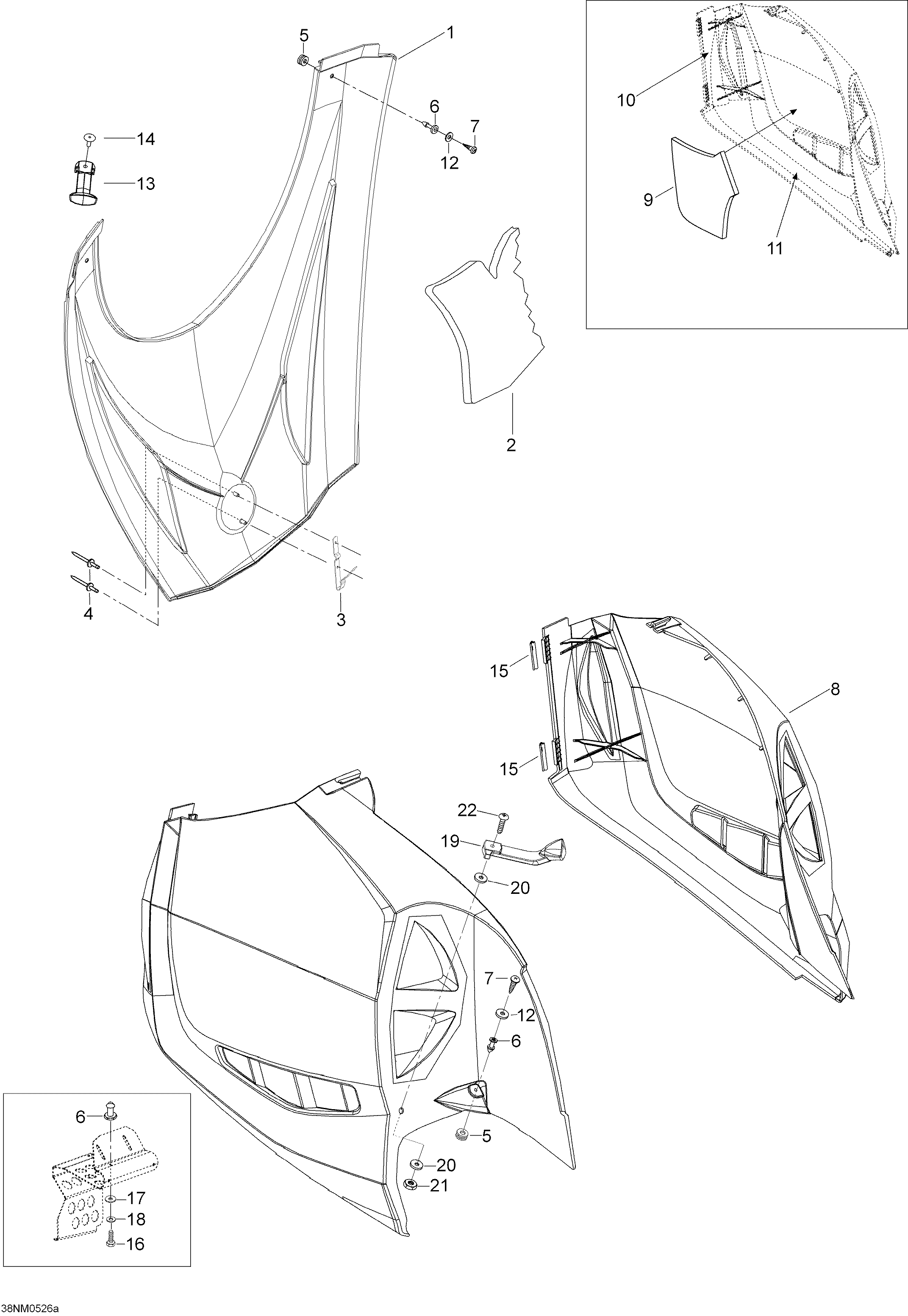

09- Hood для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1605152361 Hood, pre ass'y. Includes 1 to 2Hood, pre ass'y. Includes 1 to 2
-
2605252248 FoamFoam
-
3605353185 BracketBracket
-
436004 RivetRivet
-
5517302841 GrommetGrommet
-
6517245800 KnobKnob
-
7208651481 Screw M5 x 14Screw M5 x 14
-
8605152873 R.H. Panel, pre ass'yR.H. Panel, pre ass'y
-
8605152874 L.H. Panel, pre ass'yL.H. Panel, pre ass'y
-
9605251679 R.H. FoamR.H. Foam
-
9605252003 L.H. FoamL.H. Foam
-
10605252369 R.H. Reflection sheetR.H. Reflection sheet
-
11605252370 L.H. Reflection sheetL.H. Reflection sheet
-
12250200025 WasherWasher
-
13570027100 LatchLatch
-
1436037 RivetRivet
-
15517302823 Hinge lockHinge lock
-
1640366 Hex. screw M5 x 16Hex. screw M5 x 16
-
1720008 Washer A5,3Washer A5,3
-
1820013 Lock washer A5Lock washer A5
-
195342952 LatchLatch
-
2020008 Washer A5,3Washer A5,3
-
2133009 Elastic stop nut M5Elastic stop nut M5
-
2240156 Screw M5 x 20Screw M5 x 20
