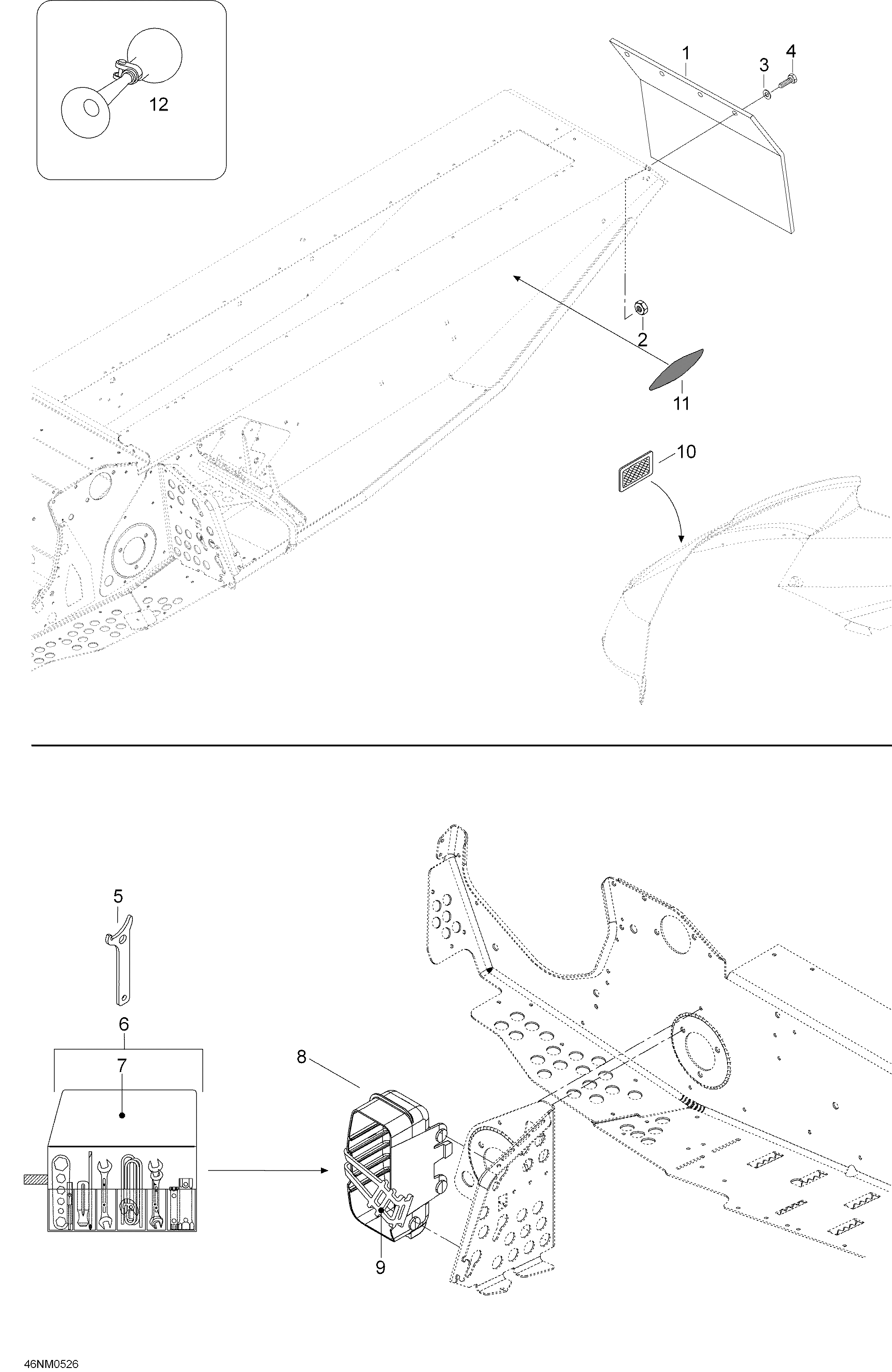

09- Utilities для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1605153104 Snow guardSnow guard
-
233200 Elastic flanged nut M6Elastic flanged nut M6
-
320009 Washer A6.4Washer A6.4
-
440078 Hex. screw M6 x 22Hex. screw M6 x 22
-
5529032900 Wrench adjusterWrench adjuster
-
6529035596 Tool set. Sisaltaa osat 7-8Tool set. Sisaltaa osat 7-8
-
7520000047 Tool boxTool box
-
8520000322 TrunkTrunk
-
9570069700 LatchLatch
-
1021118 Reflector, BrightReflector, Bright
-
1121135 Reflector, yellowReflector, yellow
-
1221003 HornHorn
