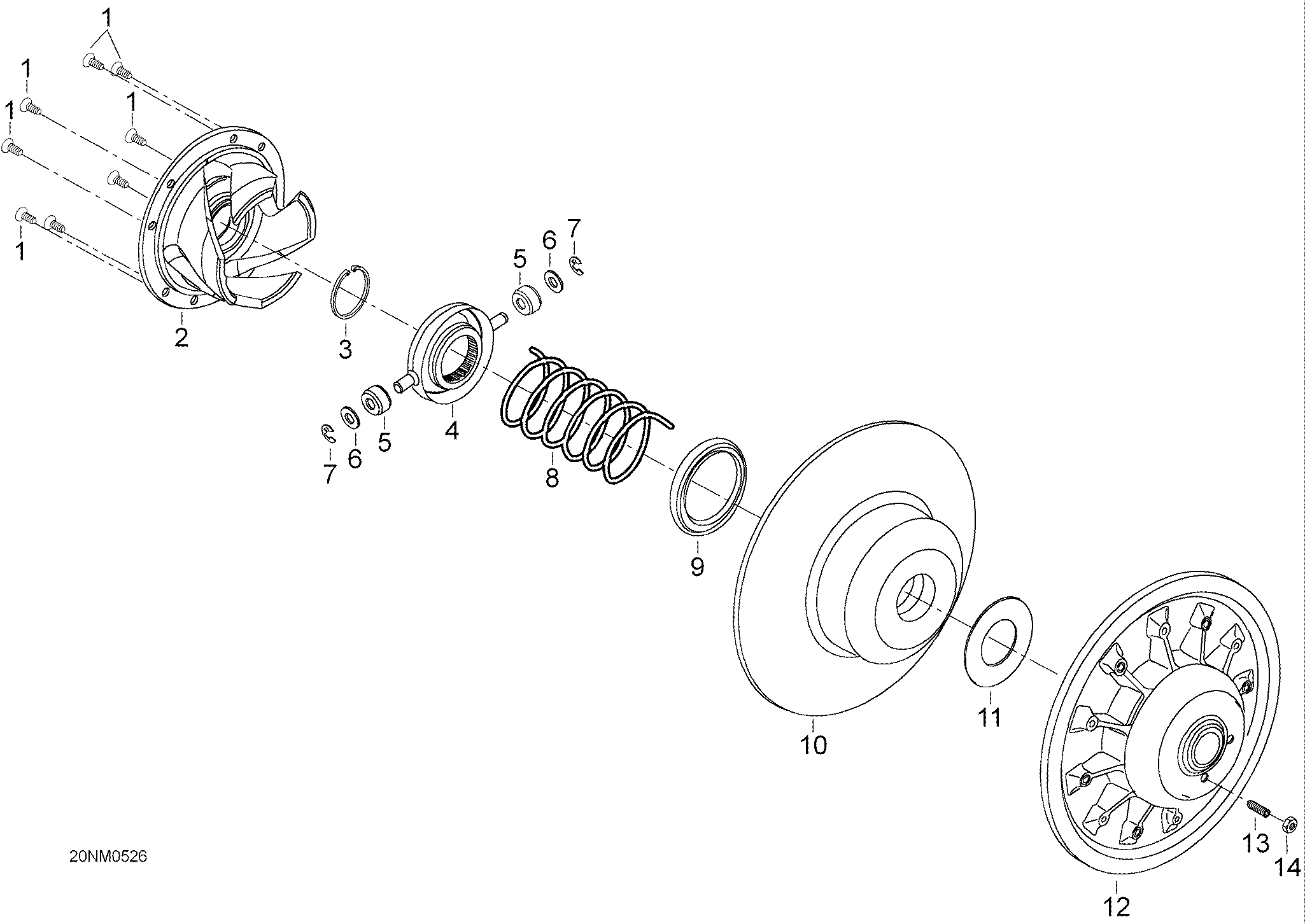

05- Driven Pulley для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1415128849 Screw TorxScrew Torx
-
2619100001 Cam 42-44 degr.Cam 42-44 degr.
-
3415128851 CirclipCirclip
-
4415128852 SpiderSpider
-
5415128853 RollerRoller
-
6415128854 Thrust washerThrust washer
-
7415128855 CirclipCirclip
-
8619100002 Spring, black/Light BlueSpring, black/Light Blue
-
9415128857 Thrust washerThrust washer
-
10415128858 Sliding flange ass'ySliding flange ass'y
-
11415128859 Thrust washerThrust washer
-
12415128860 Fixed flange ass'yFixed flange ass'y
-
13415128861 Hex. screw ass'y M6 x 30Hex. screw ass'y M6 x 30
-
14415128862 Nut hexagonal M6Nut hexagonal M6
