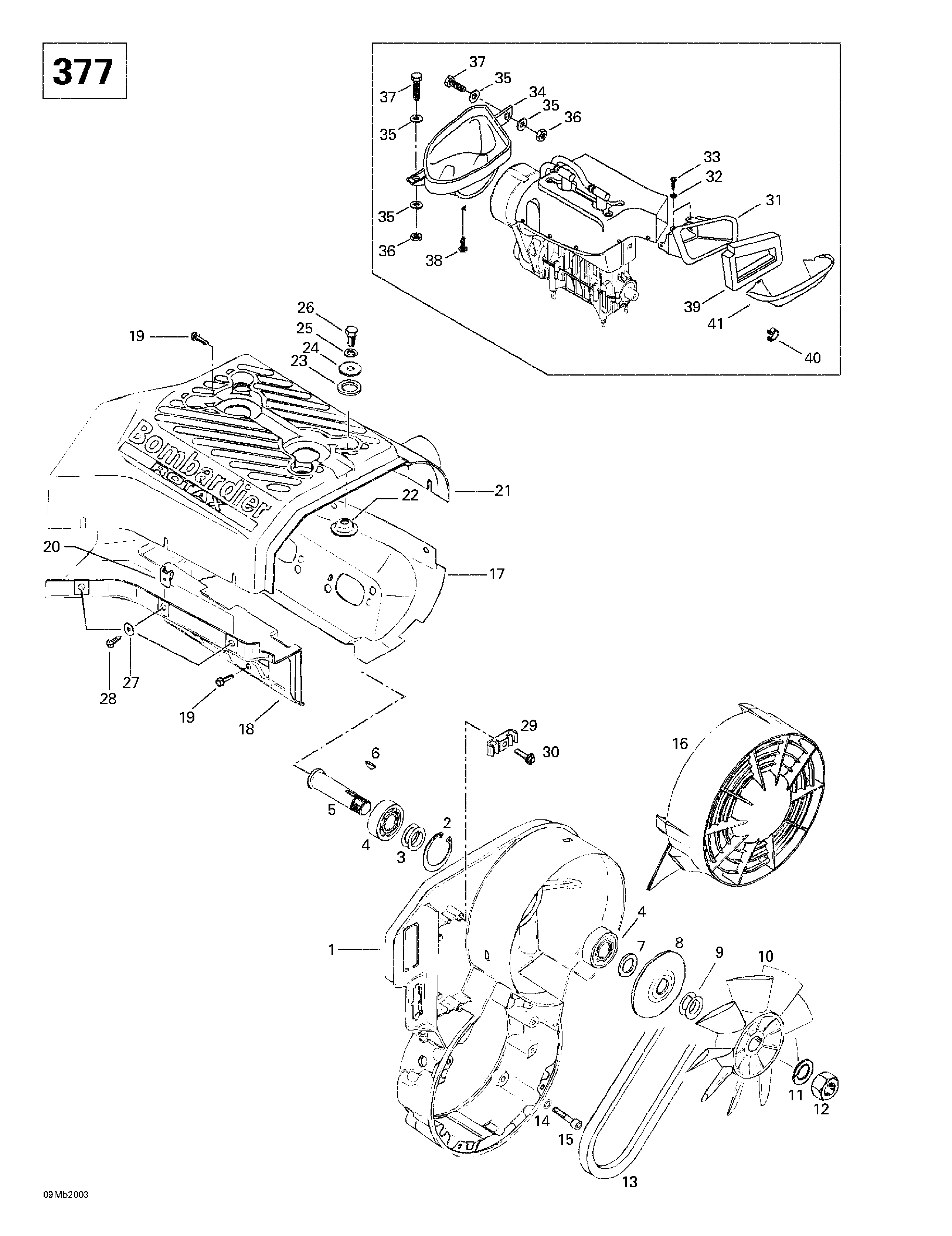

01- Cooling System And Fan (377) для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1420811262 Fan Housing. Skandic 380.Fan Housing. Skandic 380.
-
2420945880 Retaining Ring. Skandic 380.Retaining Ring. Skandic 380.
-
3420244585 Shim. Skandic 380.Shim. Skandic 380.
-
4405406100 Ball Bearing 6203. Skandic 380.Ball Bearing 6203. Skandic 380.
-
5420937940 Fan Shaft. Skandic 380.Fan Shaft. Skandic 380.
-
6420246015 Woodruff Key. Skandic 380.Woodruff Key. Skandic 380.
-
7420827650 Distance Sleeve. Skandic 380.Distance Sleeve. Skandic 380.
-
8420980496 Flange. Skandic 380.Flange. Skandic 380.
-
9420827080 Shim 0.5 mm. Skandic 380.Shim 0.5 mm. Skandic 380.
-
420827082 Shim 0.2 mm. Skandic 380.Shim 0.2 mm. Skandic 380.
-
10420866295 Fan. Skandic 380.Fan. Skandic 380.
-
11420945756 Lock Washer 16 mm. Skandic 380.Lock Washer 16 mm. Skandic 380.
-
12420942285 Hex. Nut M16. Skandic 380.Hex. Nut M16. Skandic 380.
-
13414630700 V-Belt. Skandic 380.V-Belt. Skandic 380.
-
14420945751 Lock Washer 6 mm. Skandic 380.Lock Washer 6 mm. Skandic 380.
-
15205063044 Allen Screw M6 x 30. Skandic 380.Allen Screw M6 x 30. Skandic 380.
-
16420975740 Fan Cover. Skandic 380.Fan Cover. Skandic 380.
-
17420810554 Cylinder Cowl, Exhaust Side. Skandic 380.Cylinder Cowl, Exhaust Side. Skandic 380.
-
18420810797 Cylinder Cowl, Intake Side. Skandic 380.Cylinder Cowl, Intake Side. Skandic 380.
-
19420240580 Taptite Screw M6 x 16. Skandic 380.Taptite Screw M6 x 16. Skandic 380.
-
20417300005 Spring Nut 4.8. Skandic 380.Spring Nut 4.8. Skandic 380.
-
21420810608 Cylinder Cowl. Skandic 380.Cylinder Cowl. Skandic 380.
-
22420827817 Cup Washer. Skandic 380.Cup Washer. Skandic 380.
-
23420960865 Rubber Washer. Skandic 380.Rubber Washer. Skandic 380.
-
24420227935 Washer 8 mm. Skandic 380.Washer 8 mm. Skandic 380.
-
25420945752 Lock Washer 8 mm. Skandic 380.Lock Washer 8 mm. Skandic 380.
-
26207181644 Hex. Screw M8 x 16. Skandic 380.Hex. Screw M8 x 16. Skandic 380.
-
27420926180 Washer. Skandic 380.Washer. Skandic 380.
-
28417300006 Tapping Screw M4.8 x 16. Skandic 380.Tapping Screw M4.8 x 16. Skandic 380.
-
29420860940 Clamp. Skandic 380.Clamp. Skandic 380.
-
30420941250 Tapping Screw M6 x 20. Skandic 380.Tapping Screw M6 x 20. Skandic 380.
-
31572098000 Outlet Duct. Skandic 380.Outlet Duct. Skandic 380.
-
32732900047 Serrated Lock Washer 5,2 mm. Skandic 380.Serrated Lock Washer 5,2 mm. Skandic 380.
-
33365901100 Tapping Screw. Skandic 380.Tapping Screw. Skandic 380.
-
34572097800 Inlet Duct. Skandic 380.Inlet Duct. Skandic 380.
-
35517124300 Washer. Skandic 380.Washer. Skandic 380.
-
36232551414 Elastic Stop Nut M5. Skandic 380.Elastic Stop Nut M5. Skandic 380.
-
37207151644 Hex. Screw M5 x 16. Skandic 380.Hex. Screw M5 x 16. Skandic 380.
-
38732601292 Tapping Screw. Skandic 380.Tapping Screw. Skandic 380.
-
39415104000 Seal. Skandic 380.Seal. Skandic 380.
-
40414479100 Clip. Skandic 380.Clip. Skandic 380.
-
41509000058 Outlet Deflector. Skandic 380.Outlet Deflector. Skandic 380.
