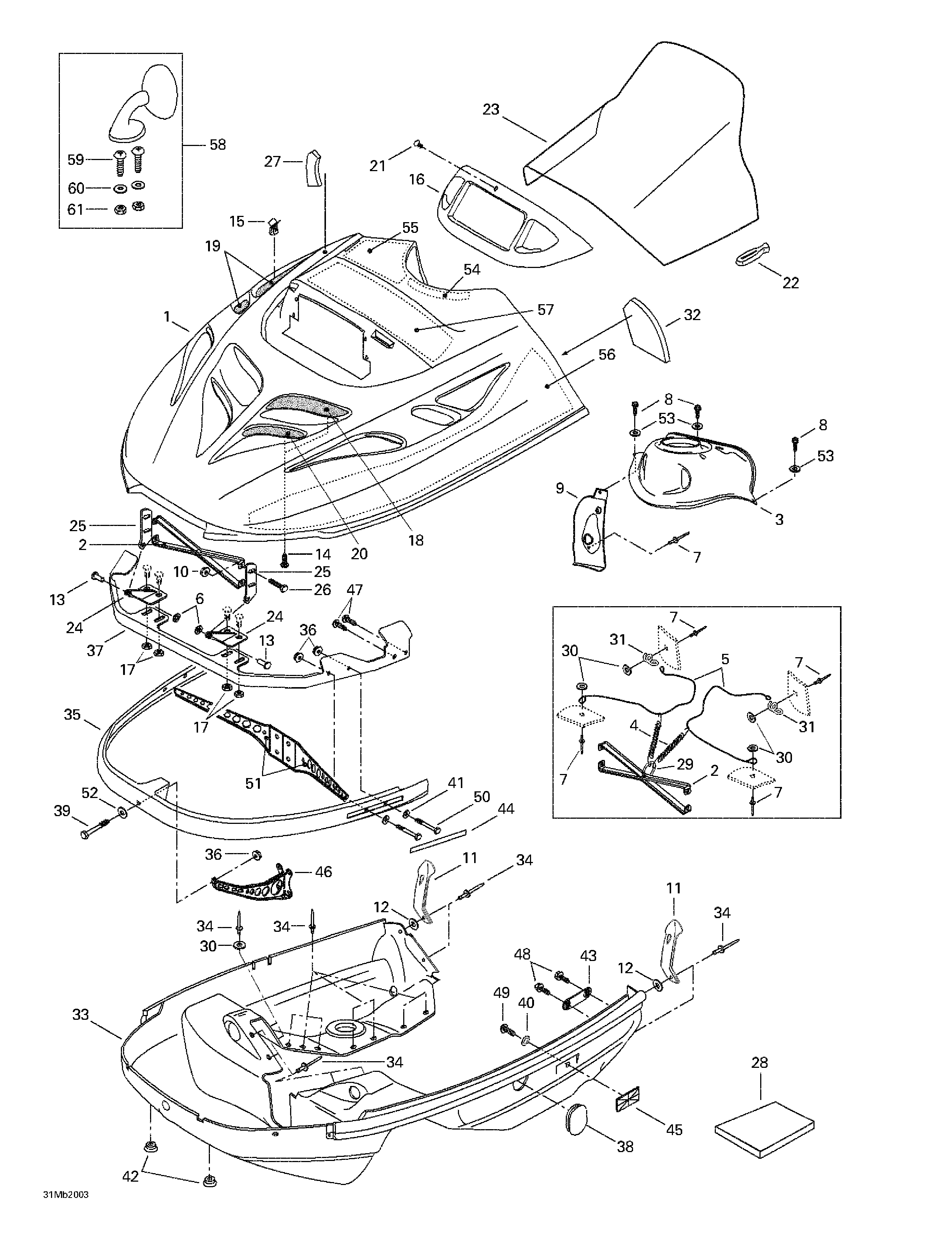

09- Cab, Console для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1517302197 HoodHood
-
2517278100 Hood ReinforcementHood Reinforcement
-
3517302159 Dash-SwirchDash-Swirch
-
4414763300 SpringSpring
-
5415093900 Cab Retainer CableCab Retainer Cable
-
6389804300 Push NutPush Nut
-
7390409600 Pop Rivet (Black)Pop Rivet (Black)
-
8732600030 Tapping ScrewTapping Screw
-
9572052101 Dash-HandleDash-Handle
-
10233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
11570027100 Hood Latch. Includes 11 - 12.Hood Latch. Includes 11 - 12.
-
12517124300 WasherWasher
-
13390906200 Rivet-Flat Head 3/16Rivet-Flat Head 3/16
-
14732601210 Self Tapping ScrewSelf Tapping Screw
-
15517302183 ClipClip
-
16572079200 Lamp MoldingLamp Molding
-
17233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18517277102 Left Upper GrillLeft Upper Grill
-
19517280200 Side GrillSide Grill
-
20517265903 Left Front GrillLeft Front Grill
-
21414644300 Windshield DartWindshield Dart
-
22570023800 Windshield LatchWindshield Latch
-
23414887200 High WindshieldHigh Windshield
-
24517289900 Lower HingeLower Hinge
-
25517261100 Upper HingeUpper Hinge
-
26207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
27414883800 R.H. Rear FoamR.H. Rear Foam
-
28414632400 Foam-Acoustic (74''x 34''x 1/2'' Thk.)Foam-Acoustic (74''x 34''x 1/2'' Thk.)
-
414631900 Foam-Acoustic (74''x 34''x 1'' Thk.)Foam-Acoustic (74''x 34''x 1'' Thk.)
-
29415058300 RingRing
-
30517124300 WasherWasher
-
31517262800 BracketBracket
-
32414883700 L.H. Rear FoamL.H. Rear Foam
-
33502006572 Bottom Pan (Black)Bottom Pan (Black)
-
34390906800 Pop Rivet (Black)Pop Rivet (Black)
-
35517265400 Front BumperFront Bumper
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37517296600 Hinge BracketHinge Bracket
-
38570053702 Cap-Bottom Pan (Black)Cap-Bottom Pan (Black)
-
39207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
40234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
41224061121 Flat WasherFlat Washer
-
42572072100 CapCap
-
43517267100 Side BracketSide Bracket
-
44418001009 Decal Reflector (yellow)Decal Reflector (yellow)
-
45414510200 Reflector (amber)Reflector (amber)
-
46517294500 Front SupportFront Support
-
47365901100 Hex. Tapping ScrewHex. Tapping Screw
-
48210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
49208651041 Screw M5 x 10Screw M5 x 10
-
50207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
51517295100 R.H. SupportR.H. Support
-
517295000 L.H. SupportL.H. Support
-
52224061201 Flat WasherFlat Washer
-
53391301600 Flat WasherFlat Washer
-
54415050900 FoamFoam
-
55414975000 Upper FoamUpper Foam
-
56415048700 R.H. Lower FoamR.H. Lower Foam
-
414883500 L.H. Lower FoamL.H. Lower Foam
-
57414985100 Center Foam. Skandic 500.Center Foam. Skandic 500.
-
58414971910 R.H. Mirror. Includes 58 - 61. Skandic 500.R.H. Mirror. Includes 58 - 61. Skandic 500.
-
414972010 L.H. Mirror. Skandic 500.L.H. Mirror. Skandic 500.
-
59208041641 Screw M4 x 16. Skandic 500.Screw M4 x 16. Skandic 500.
-
60517124300 Washer. Skandic 500.Washer. Skandic 500.
-
61232541414 Elastic Stop Nut M4. Skandic 500.Elastic Stop Nut M4. Skandic 500.
