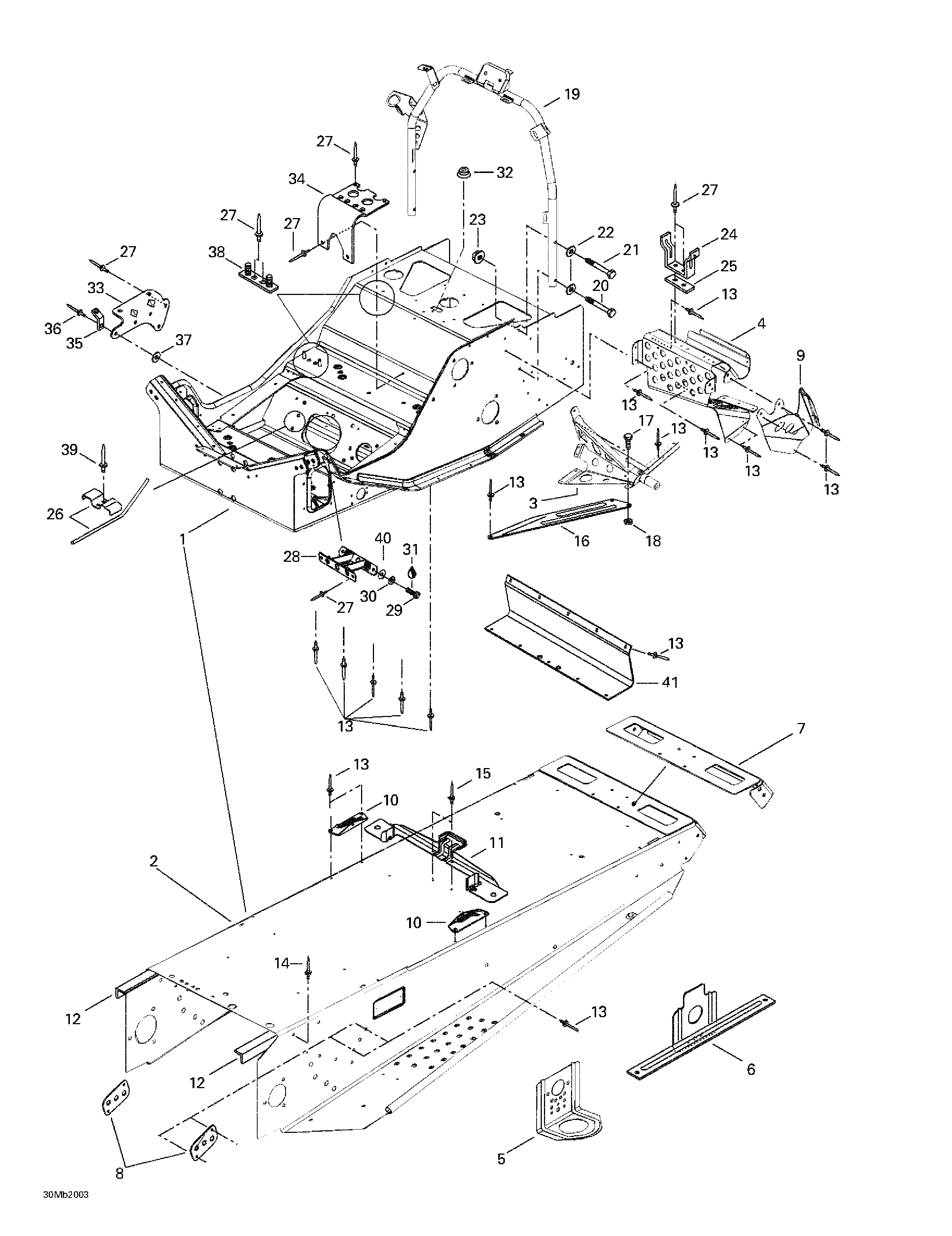

09- Frame And Accessories для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1518322088 Frame Ass'y. Includes 1 - 18.Frame Ass'y. Includes 1 - 18.
-
2518322114 Forming Frame (Tunnel)Forming Frame (Tunnel)
-
3518320506 R.H. Foot SupportR.H. Foot Support
-
518320507 L.H. Foot SupportL.H. Foot Support
-
4518318933 R.H. FootrestR.H. Footrest
-
518318934 L.H. FootrestL.H. Footrest
-
5518321495 Front BracketFront Bracket
-
6518316716 R.H. Rear BracketR.H. Rear Bracket
-
518316715 L.H. Rear BracketL.H. Rear Bracket
-
7518321619 Cap-RearCap-Rear
-
8518201321 Reinforcement PlateReinforcement Plate
-
9518308715 R.H. Upper PlateR.H. Upper Plate
-
518308714 L.H. Upper PlateL.H. Upper Plate
-
10517266900 R.H. Tank BracketR.H. Tank Bracket
-
517267000 L.H. Tank BracketL.H. Tank Bracket
-
11518317506 Seat BracketSeat Bracket
-
12518316769 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
518316768 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
13390402200 Pop Rivet 3/16Pop Rivet 3/16
-
14390402300 Pop Rivet 3/16Pop Rivet 3/16
-
15390402400 Pop Rivet 3/16Pop Rivet 3/16
-
16518321958 R.H. Reinforcement PlateR.H. Reinforcement Plate
-
518321959 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
17207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
18233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
19518321428 Handle Steering SupportHandle Steering Support
-
20207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
21207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
22234061410 Flat Washer 6 mmFlat Washer 6 mm
-
23233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
24518202100 Pulley Guard BracketPulley Guard Bracket
-
25518207500 ReinforcementReinforcement
-
26517276100 Guide RopeGuide Rope
-
27390402200 Pop Rivet 3/16Pop Rivet 3/16
-
28518304741 Reinforcement PlateReinforcement Plate
-
29207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
30234181401 Lock Washer 8 mmLock Washer 8 mm
-
31293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
32414859400 CapCap
-
33518316704 Muffler Support. Skandic 380.Muffler Support. Skandic 380.
-
34518310400 Air Intake SupportAir Intake Support
-
35514034000 Spring Bracket. Skandic 380.Spring Bracket. Skandic 380.
-
36390402300 Pop Rivet 3/16. Skandic 380.Pop Rivet 3/16. Skandic 380.
-
37517225900 Flat Washer. Skandic 380.Flat Washer. Skandic 380.
-
38518315300 Support PlateSupport Plate
-
40224081201 Flat WasherFlat Washer
-
41518321867 DeflectorDeflector
