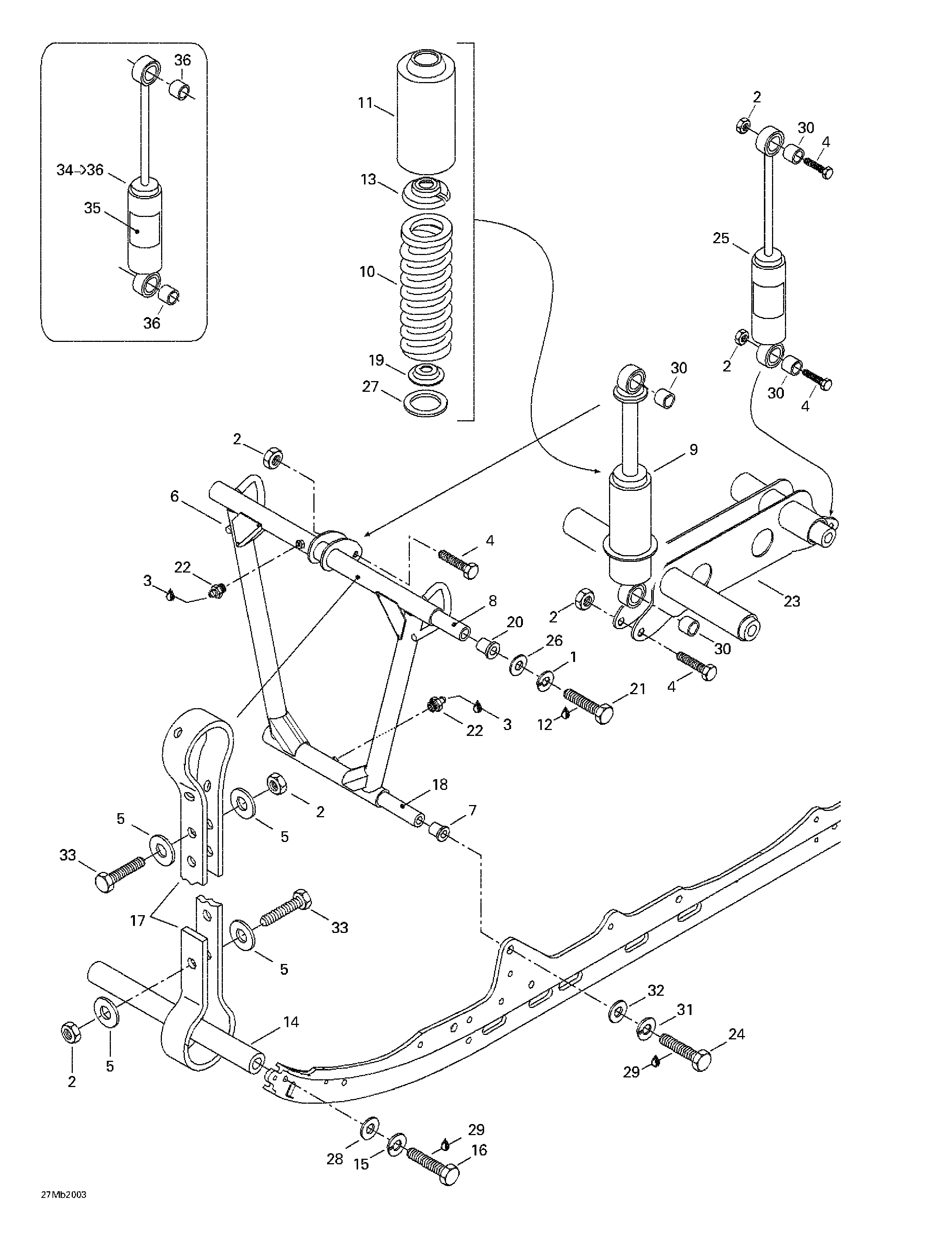

08- Front Arm для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1234101601 Lock Washer 10 mmLock Washer 10 mm
-
2232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
3219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
4207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
5517078700 WasherWasher
-
6503189311 Front ArmFront Arm
-
7503189323 CushionCushion
-
8503188938 ShaftShaft
-
9503188903 ShockShock
-
10503189000 SpringSpring
-
11503188930 ProtectorProtector
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13503140600 Spring StopperSpring Stopper
-
14503151600 AxleAxle
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
17503189362 Stopper StrapStopper Strap
-
18503189313 ShaftShaft
-
19503165100 Spring GuideSpring Guide
-
20503189324 CushionCushion
-
21207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
22408200700 Grease Fitting M6Grease Fitting M6
-
23503189466 Shock SupportShock Support
-
24207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
25503188902 ShockShock
-
26234001410 Flat Washer 10 mmFlat Washer 10 mm
-
27503184400 WasherWasher
-
28234081410 Flat Washer 8 mmFlat Washer 8 mm
-
29293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
30414936000 CushionCushion
-
31234120602 Lock Spring Washer 12 mmLock Spring Washer 12 mm
-
32234021410 Flat Washer 12 mmFlat Washer 12 mm
-
33207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
34860305200 Rear Shock Kit (HPG). Includes 34 - 36.Rear Shock Kit (HPG). Includes 34 - 36.
-
35516000182 HPG DecalHPG Decal
-
36414802600 CushionCushion
