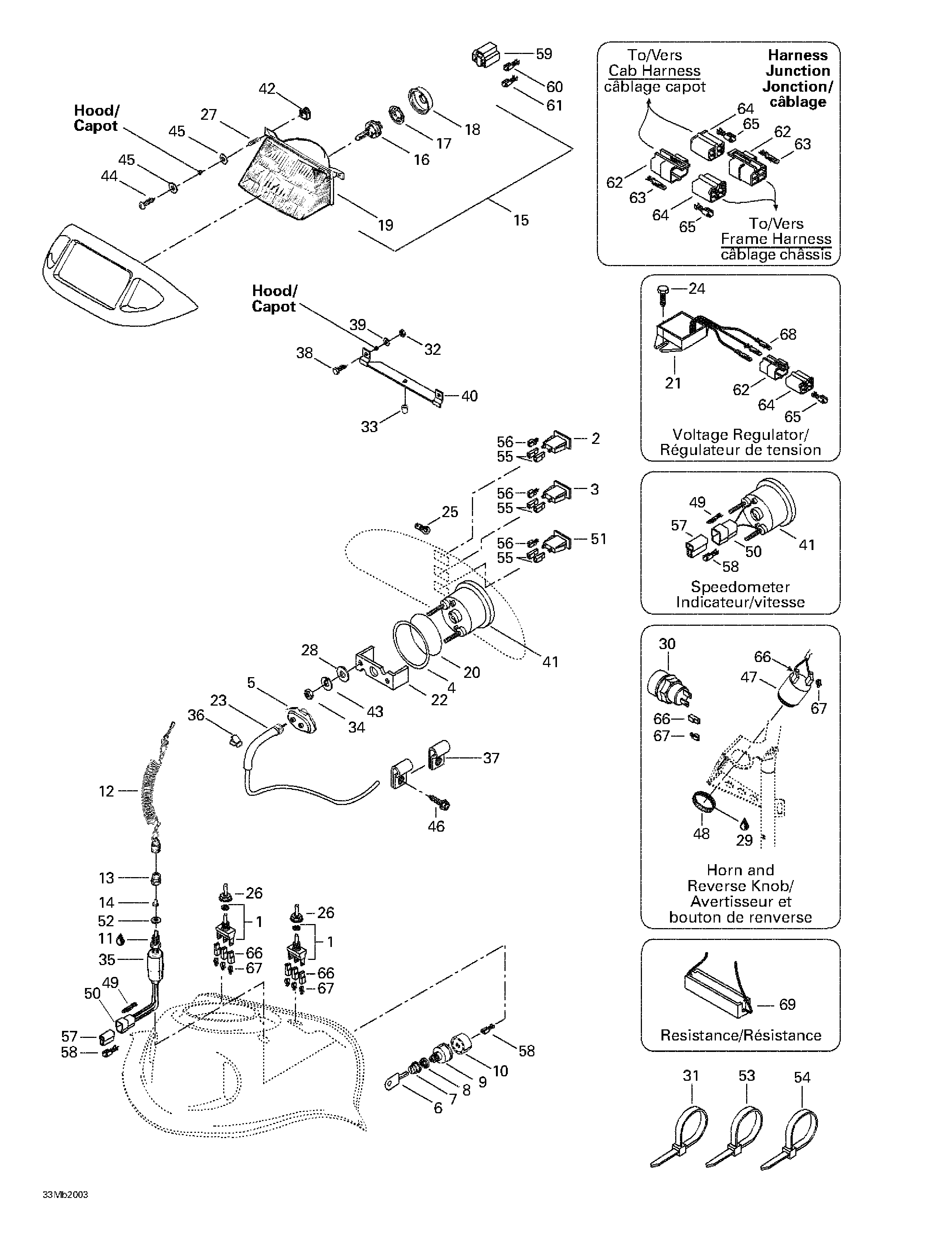

10- Electrical System для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1410107300 Switch (Heating Grip)Switch (Heating Grip)
-
2410109500 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
3410109600 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
4517258500 WasherWasher
-
5515175400 Drive AngleDrive Angle
-
6414991700 Blank Key (Plastic, Pkg. 5)Blank Key (Plastic, Pkg. 5)
-
7570013700 Switch BootSwitch Boot
-
8410112100 Face NutFace Nut
-
9410111200 Ignition SwitchIgnition Switch
-
10572150700 Ignition Switch BlockIgnition Switch Block
-
11293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
12515151500 Switch Cap Ass'ySwitch Cap Ass'y
-
13515145900 Switch NutSwitch Nut
-
14570151100 Plunger CapPlunger Cap
-
15410609100 Headlamp Ass'y. Includes 15 - 19.Headlamp Ass'y. Includes 15 - 19.
-
16410503700 Halogen BulbHalogen Bulb
-
17410608300 Bulb HolderBulb Holder
-
18410607100 Protector CapProtector Cap
-
19410609300 HeadlampHeadlamp
-
20414807100 O-RingO-Ring
-
21515163800 Voltage Regulator Ass'yVoltage Regulator Ass'y
-
22414806500 Case HolderCase Holder
-
23414761400 Speedometer CableSpeedometer Cable
-
24210263580 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
25410504200 Instrumentation BulbInstrumentation Bulb
-
26515175281 Switch coverSwitch cover
-
27517168600 SpringSpring
-
28414806800 Flat WasherFlat Washer
-
29296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
30415101200 Reverse KnobReverse Knob
-
31515175200 Tie-RapTie-Rap
-
32232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
33410608200 Rubber BumperRubber Bumper
-
34414806900 NutNut
-
35515175369 Brake SwitchBrake Switch
-
36414227300 ClipClip
-
37414176000 ClipClip
-
38207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
39391301700 Flat WasherFlat Washer
-
40517218500 Headlamp SupportHeadlamp Support
-
41515175337 Speedometer (KMH)Speedometer (KMH)
-
515175338 Speedometer (MPH)Speedometer (MPH)
-
42572078600 Lamp NutLamp Nut
-
43414806700 Lock WasherLock Washer
-
44243244040 Plastite Phillips Screw M4 x 40Plastite Phillips Screw M4 x 40
-
45234051410 Flat Washer 5 mmFlat Washer 5 mm
-
46365901100 Hex. Tapping ScrewHex. Tapping Screw
-
47415060900 HornHorn
-
48414805101 Plastic NutPlastic Nut
-
49409210000 Male TerminalMale Terminal
-
50409204500 Male Connector HousingMale Connector Housing
-
51410113400 Pilot Lamp (Reverse)Pilot Lamp (Reverse)
-
53293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
54414115200 Tie-RapTie-Rap
-
55409010400 Femal Terminal Housing (1 Circuit)Femal Terminal Housing (1 Circuit)
-
56409010100 Femal TerminalFemal Terminal
-
57409204600 Femal Terminal HousingFemal Terminal Housing
-
58561503100 Femal TerminalFemal Terminal
-
59409202700 Femal Terminal Housing (3 Circuits)Femal Terminal Housing (3 Circuits)
-
60515175320 Femal TerminalFemal Terminal
-
61409011500 Femal TerminalFemal Terminal
-
62409209300 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
63409206100 Male TerminalMale Terminal
-
64409204900 Femal Terminal Housing (4 Circuits)Femal Terminal Housing (4 Circuits)
-
65561503200 Femal TerminalFemal Terminal
-
66409010400 Femal Terminal Housing (1 Circuit)Femal Terminal Housing (1 Circuit)
-
67409010100 Femal TerminalFemal Terminal
-
69515175241 ResistanceResistance
