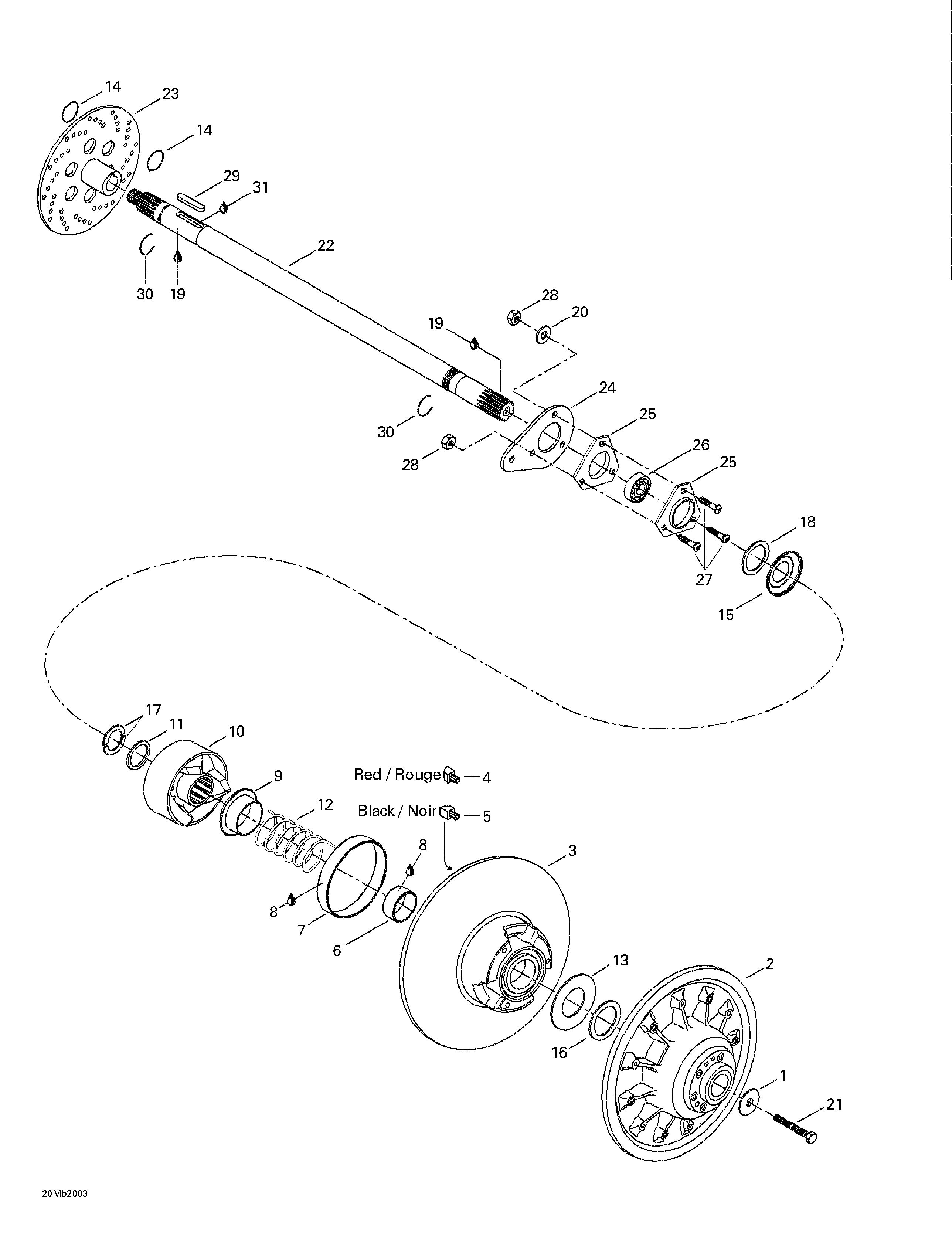

05- Driven Pulley для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1517302322 WasherWasher
-
2417126401 Fixed Flange Ass'yFixed Flange Ass'y
-
3417126403 Sliding Flange Ass'y. Includes 3 - 7.Sliding Flange Ass'y. Includes 3 - 7.
-
4417126373 Rear Cam Shoe SliderRear Cam Shoe Slider
-
5417126374 Front Cam Shoe SliderFront Cam Shoe Slider
-
6415092600 BushingBushing
-
7415092700 BushingBushing
-
8413703100 Loctite 609, 10 ccLoctite 609, 10 cc
-
9415006000 GuardGuard
-
10417124700 Cam Ass'y 47 Deg./ 44 DegCam Ass'y 47 Deg./ 44 Deg
-
11417126368 SpacerSpacer
-
12415092800 SpringSpring
-
13504099600 Stopper WasherStopper Washer
-
14414928900 O- Ring. Skandic 380.O- Ring. Skandic 380.
-
15417300055 ProtectorProtector
-
16504112300 ShimShim
-
17371911000 Half KeyHalf Key
-
18417300054 SpacerSpacer
-
19293800023 Loctite 767, Antiseize Lubricant,454 gLoctite 767, Antiseize Lubricant,454 g
-
20234081410 Flat Washer 8 mmFlat Washer 8 mm
-
21207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
22504151747 Countershaft. Skandic 380.Countershaft. Skandic 380.
-
504150300 Countershaft. Skandic 500.Countershaft. Skandic 500.
-
23507029000 Brake Disk. Skandic 380.Brake Disk. Skandic 380.
-
507032203 Brake Disk. Skandic 500.Brake Disk. Skandic 500.
-
24501022300 SpacerSpacer
-
25501025000 FlangeFlange
-
26405408900 Ball BearingBall Bearing
-
27205482546 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
28232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
29507021300 KeyKey
-
30371910000 CirclipCirclip
