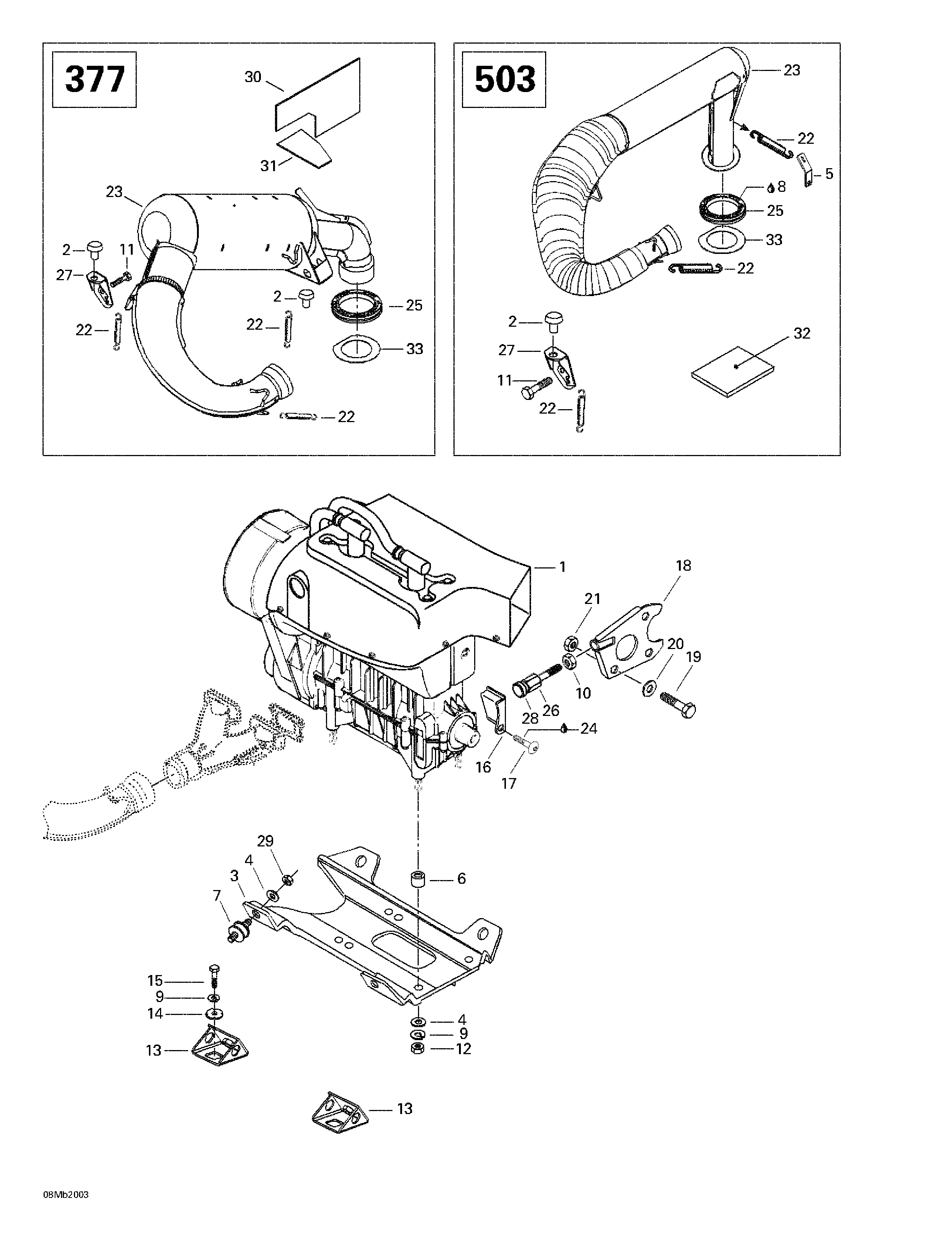

01- Engine Support And Muffler для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1400308905 > Engine. Skandic 380.> Engine. Skandic 380.
-
400509713 > Engine. Skandic 500.> Engine. Skandic 500.
-
2570048700 Rubber BumperRubber Bumper
-
3512059134 Engine SupportEngine Support
-
4234001410 Flat Washer 10 mmFlat Washer 10 mm
-
5514034000 Spring Bracket. Skandic 500.Spring Bracket. Skandic 500.
-
6512057700 Spacer. Skandic 380.Spacer. Skandic 380.
-
512051800 Spacer. Skandic 500.Spacer. Skandic 500.
-
7570127700 Rubber MountRubber Mount
-
8293550014 Grease, Super Lube 823-28. Skandic 500.Grease, Super Lube 823-28. Skandic 500.
-
9234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
10232120414 Jam Nut Hex. M12Jam Nut Hex. M12
-
11207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
12232006414 Hex. Nut M10Hex. Nut M10
-
13512050900 Engine SupportEngine Support
-
14512056700 Lock WasherLock Washer
-
15207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
16512059198 Stopper PlateStopper Plate
-
17236282084 Screw M8 x 20Screw M8 x 20
-
18517271800 Support PlateSupport Plate
-
19207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
20234081410 Flat Washer 8 mmFlat Washer 8 mm
-
21232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
22517182100 Spring. Skandic 380.Spring. Skandic 380.
-
415107100 Spring. Skandic 500.Spring. Skandic 500.
-
23514052852 Muffler. Skandic 380.Muffler. Skandic 380.
-
514046700 Tune Pipe. Skandic 500.Tune Pipe. Skandic 500.
-
24293800005 Loctite 271, 10 ccLoctite 271, 10 cc
-
25570039000 Exhaust GrommetExhaust Grommet
-
26517244200 ScrewScrew
-
27514044100 Muffler SupportMuffler Support
-
28570025100 Rod RetainerRod Retainer
-
29233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
30514052949 Reflection Sheet. Skandic 380.Reflection Sheet. Skandic 380.
-
31514052858 Reflection Sheet. Skandic 380.Reflection Sheet. Skandic 380.
-
32414746400 Reflection Sheet. Skandic 500.Reflection Sheet. Skandic 500.
-
33514049300 Aluminum WasherAluminum Washer
