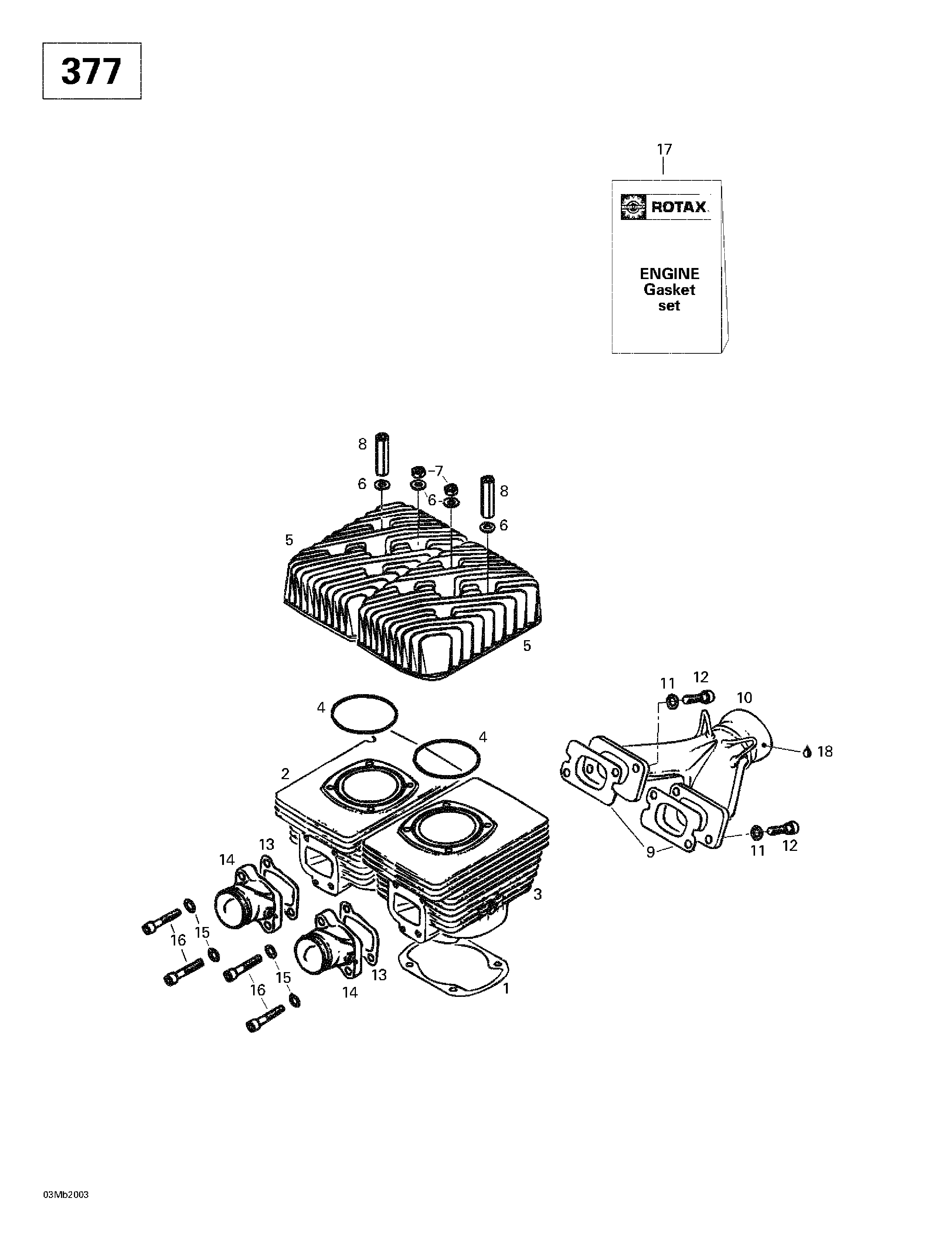

01- Cylinder, Intake Exhaust Manifold (377) для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1420931781 Gasket 0.4 mm. Skandic 380.Gasket 0.4 mm. Skandic 380.
-
2420923403 Cylinder with Sleeve PTO. Skandic 380.Cylinder with Sleeve PTO. Skandic 380.
-
3420923408 Cylinder with Sleeve, MAG. Skandic 380.Cylinder with Sleeve, MAG. Skandic 380.
-
4420931380 O-Ring. Skandic 380.O-Ring. Skandic 380.
-
5420923602 Cylinder Head. Skandic 380.Cylinder Head. Skandic 380.
-
6420250311 Washer 8.4 mm. Skandic 380.Washer 8.4 mm. Skandic 380.
-
7232081414 Hex. Nut M 8. Skandic 380.Hex. Nut M 8. Skandic 380.
-
8420842385 Distance Nut M8 x 42. Skandic 380.Distance Nut M8 x 42. Skandic 380.
-
9420850114 Gasket 1.0 mm. Skandic 380.Gasket 1.0 mm. Skandic 380.
-
10420978437 Exhaust Manifold Ass'y. Skandic 380.Exhaust Manifold Ass'y. Skandic 380.
-
11234181401 Lock Washer 8 mm. Skandic 380.Lock Washer 8 mm. Skandic 380.
-
12205083044 Socket Head Screw M8 x 30. Skandic 380.Socket Head Screw M8 x 30. Skandic 380.
-
13420831867 Intake Gasket 1.0 mm. Skandic 380.Intake Gasket 1.0 mm. Skandic 380.
-
14420867408 Intake Socket Ass'y. Skandic 380.Intake Socket Ass'y. Skandic 380.
-
15420945752 Lock Washer 8 mm. Skandic 380.Lock Washer 8 mm. Skandic 380.
-
16420841591 Allen Screw M8 x 35. Skandic 380.Allen Screw M8 x 35. Skandic 380.
-
17420994232 Engine Gasket Set. Skandic 380.Engine Gasket Set. Skandic 380.
-
18413710300 Sealant, Loctite 17914, 80 ml. Skandic 380.Sealant, Loctite 17914, 80 ml. Skandic 380.
