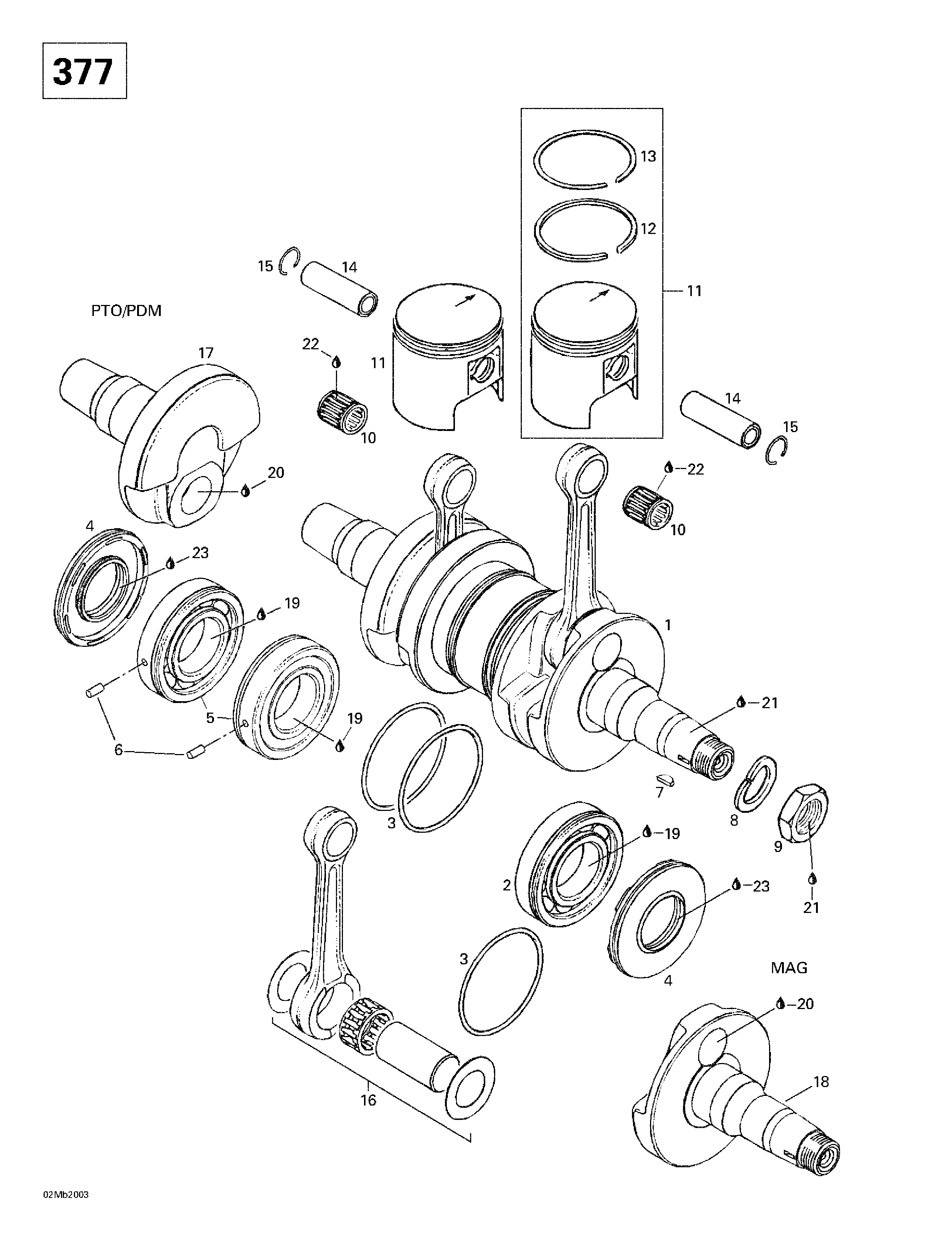

01- Crankshaft And Pistons (377) для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1420887249 Crankshaft Ass'y. Includes 1 - 7. Skandic 380.Crankshaft Ass'y. Includes 1 - 7. Skandic 380.
-
2420832570 Ball Bearing 6207. Skandic 380.Ball Bearing 6207. Skandic 380.
-
3420250165 O-Ring 64 mm. Skandic 380.O-Ring 64 mm. Skandic 380.
-
4290831952 Oil Seal. Skandic 380.Oil Seal. Skandic 380.
-
5420832574 Ball Bearing 6207 Ass'y. Includes 5 - 6. Skandic 380.Ball Bearing 6207 Ass'y. Includes 5 - 6. Skandic 380.
-
6420929972 Dowel Pin. Skandic 380.Dowel Pin. Skandic 380.
-
7420246055 Woodruff Key. Skandic 380.Woodruff Key. Skandic 380.
-
8420945759 Lock Washer 22 mm. Skandic 380.Lock Washer 22 mm. Skandic 380.
-
9420842230 Hex. Nut M22. Skandic 380.Hex. Nut M22. Skandic 380.
-
10420932904 Needle Cage. Skandic 380.Needle Cage. Skandic 380.
-
11420887475 Piston Ass'y 61.94 mm. Includes 11 - 13. Skandic 380.Piston Ass'y 61.94 mm. Includes 11 - 13. Skandic 380.
-
420887476 Oversize Piston Ass'y 62.19 mm. Skandic 380.Oversize Piston Ass'y 62.19 mm. Skandic 380.
-
420887477 Oversize Piston Ass'y 62.44 mm. Skandic 380.Oversize Piston Ass'y 62.44 mm. Skandic 380.
-
12420915895 Rectangular Ring 62.0 mm. Skandic 380.Rectangular Ring 62.0 mm. Skandic 380.
-
420915896 Rectangular Ring 62.25 mm. Skandic 380.Rectangular Ring 62.25 mm. Skandic 380.
-
420915897 Rectangular Ring 62.5 mm. Skandic 380.Rectangular Ring 62.5 mm. Skandic 380.
-
13420215215 Semi-Trapez Ring 62.0 mm. Skandic 380.Semi-Trapez Ring 62.0 mm. Skandic 380.
-
420215216 Semi-Trapez Ring 62.25 mm. Skandic 380.Semi-Trapez Ring 62.25 mm. Skandic 380.
-
420215217 Semi-Trapez Ring 62.5 mm. Skandic 380.Semi-Trapez Ring 62.5 mm. Skandic 380.
-
14420916260 Piston Pin. Skandic 380.Piston Pin. Skandic 380.
-
15420945735 Circlip. Skandic 380.Circlip. Skandic 380.
-
16420996334 Rod Repair Kit. Skandic 380.Rod Repair Kit. Skandic 380.
-
17420818203 Crankhalf PTO. Skandic 380.Crankhalf PTO. Skandic 380.
-
18420919979 Crankhalf MAG. Skandic 380.Crankhalf MAG. Skandic 380.
-
19293800023 Loctite 767, Antiseize Lubricant, 454 g. Skandic 380.Loctite 767, Antiseize Lubricant, 454 g. Skandic 380.
-
20413711400 Loctite 648, 10 ml. Skandic 380.Loctite 648, 10 ml. Skandic 380.
-
21293800060 Loctite 243, 10 ml. Skandic 380.Loctite 243, 10 ml. Skandic 380.
-
22413802900 Injection Oil (12 x 1 Liter). Skandic 380.Injection Oil (12 x 1 Liter). Skandic 380.
-
23413707000 Molykote 111. Skandic 380.Molykote 111. Skandic 380.
