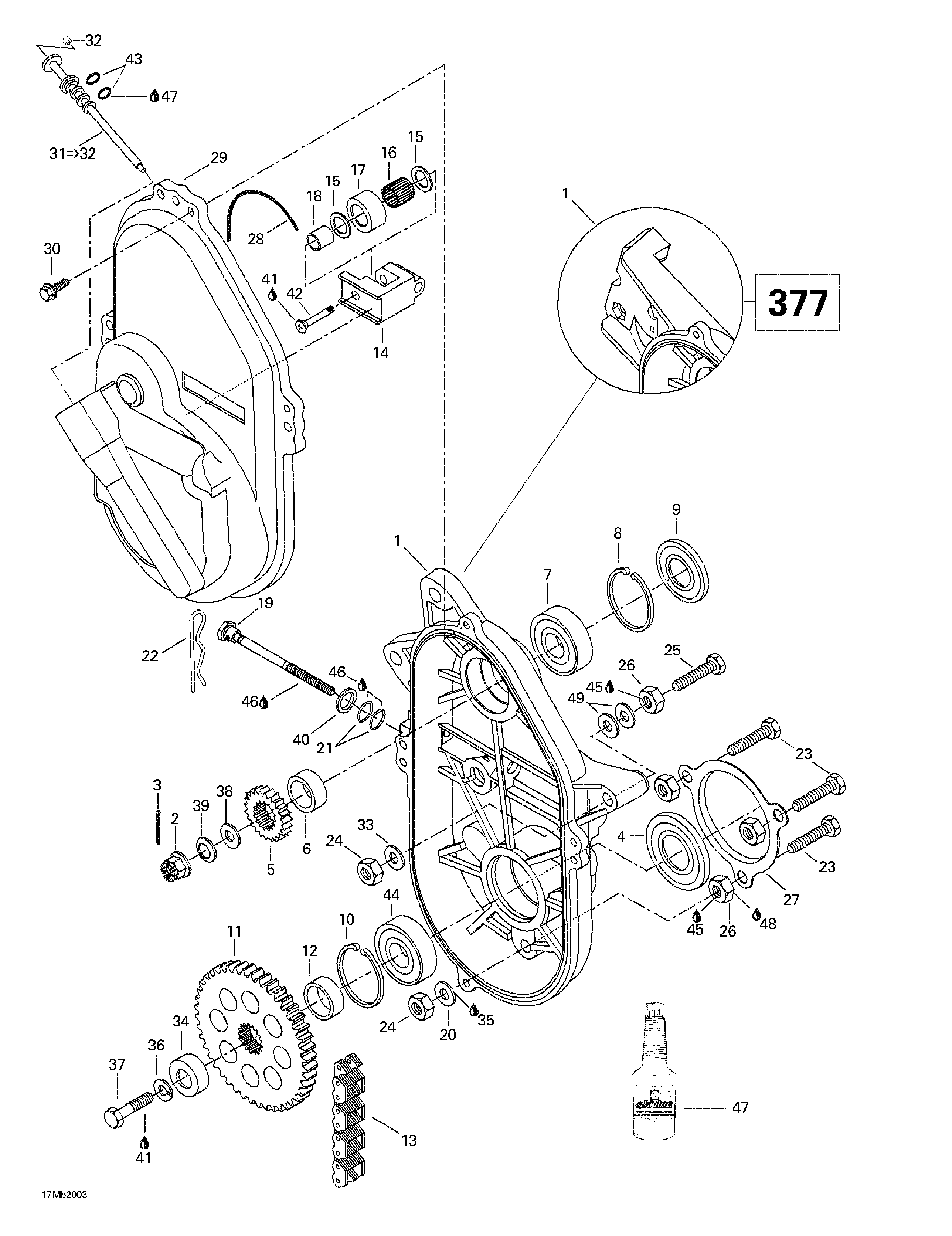

05- Chaincase для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1504151786 Chaincase. Skandic 380.Chaincase. Skandic 380.
-
504151785 Chaincase. Skandic 500.Chaincase. Skandic 500.
-
2232210414 Castellated Nut M16Castellated Nut M16
-
3371801300 Cotter PinCotter Pin
-
4581101700 SealSeal
-
5504070100 Sprocket Narrow (18 Tooth)Sprocket Narrow (18 Tooth)
-
6504093400 ShimShim
-
7405404400 Ball Bearing 6205Ball Bearing 6205
-
8371901700 Circlip (Interior)Circlip (Interior)
-
9414882800 SealSeal
-
10371901700 Circlip (Interior)Circlip (Interior)
-
11504070900 Sprocket Narrow (44 Tooth)Sprocket Narrow (44 Tooth)
-
12504146400 SpacerSpacer
-
13504151882 Drive Chain Narrow (70 Links)Drive Chain Narrow (70 Links)
-
14504081000 Chain TensionerChain Tensioner
-
15504080300 WasherWasher
-
16405403000 Needle BearingNeedle Bearing
-
17414531300 RollerRoller
-
18504080200 SpacerSpacer
-
19732601311 Tensioner Adjustment ScrewTensioner Adjustment Screw
-
20234001460 Flat Washer 10 mmFlat Washer 10 mm
-
21414484400 O-RingO-Ring
-
22414575600 Hair PinHair Pin
-
23207104544 Hex. Screw M10 x 45Hex. Screw M10 x 45
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25207107044 Hex. Screw M10 x 70Hex. Screw M10 x 70
-
26504083800 SpacerSpacer
-
27501022100 ProtectorProtector
-
28414362300 O-RingO-Ring
-
29080037100 Chaincase CoverChaincase Cover
-
30210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
31572092700 Filler Cap Ass'y. Includes 31 - 32.Filler Cap Ass'y. Includes 31 - 32.
-
32206540490 Screw M4Screw M4
-
33234001410 Flat Washer 10 mmFlat Washer 10 mm
-
34501026200 CapCap
-
35413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
36234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
37207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
38504087100 WasherWasher
-
39417000900 Spring WasherSpring Washer
-
40234001410 Flat Washer 10 mmFlat Washer 10 mm
-
41293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
42732601144 ScrewScrew
-
43414969400 O-RingO-Ring
-
44405404400 Ball Bearing 6205Ball Bearing 6205
-
45293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
46219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
47413803300 Synthetic Chaincase Oil. (12 x 355 ml)Synthetic Chaincase Oil. (12 x 355 ml)
-
48293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
49504073700 WasherWasher
