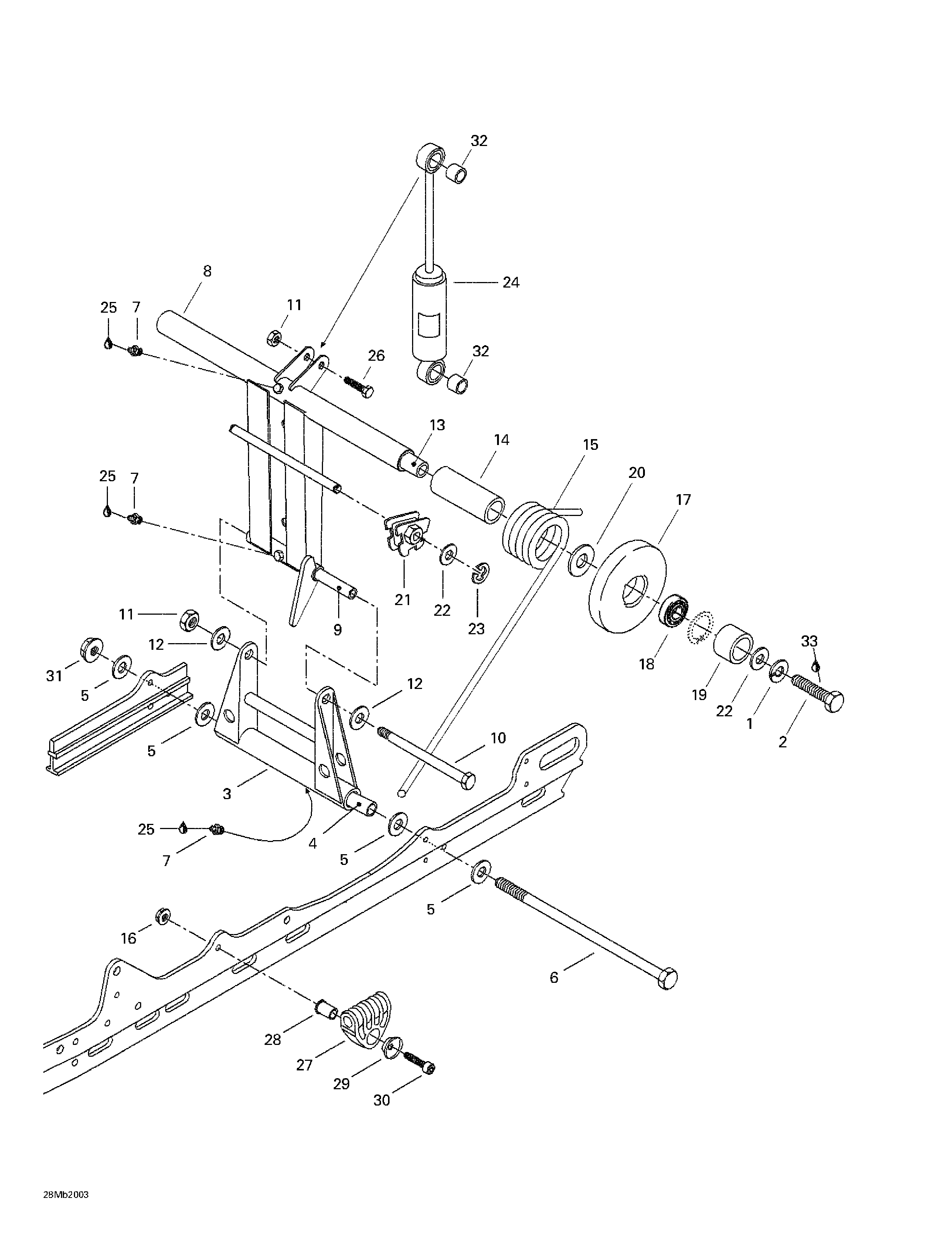

08- Rear Arm для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1234101601 Lock Washer 10 mmLock Washer 10 mm
-
2207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
3503152200 Pivot ArmPivot Arm
-
4503154703 Lower Axle PivotLower Axle Pivot
-
5224081201 Flat WasherFlat Washer
-
6732601198 Bolt M8 (Long)Bolt M8 (Long)
-
7408200700 Grease Fitting M6Grease Fitting M6
-
8503151200 Rear ArmRear Arm
-
9503144300 Upper Axle PivotUpper Axle Pivot
-
10732601197 Bolt M8 (Short)Bolt M8 (Short)
-
11232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13503151400 Cross Rear ShaftCross Rear Shaft
-
14572047800 BushingBushing
-
15503189338 R.H. SpringR.H. Spring
-
503189339 L.H. SpringL.H. Spring
-
16233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
17572094300 Idler Wheel 155. Includes 17 - 18.Idler Wheel 155. Includes 17 - 18.
-
18405404600 Ball Bearing 6202Ball Bearing 6202
-
19503154200 SpacerSpacer
-
20503144900 WasherWasher
-
21572030900 R.H. Cam AdjusterR.H. Cam Adjuster
-
572030800 L.H. Cam AdjusterL.H. Cam Adjuster
-
22234001410 Flat Washer 10 mmFlat Washer 10 mm
-
23371907100 Circlip-ECirclip-E
-
24503188902 ShockShock
-
25219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
26207084044 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
27503188933 Spring SupportSpring Support
-
28503188934 Spring Axle GuideSpring Axle Guide
-
29503188929 Retainer CushionRetainer Cushion
-
30205084544 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
31233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
32414936000 CushionCushion
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
