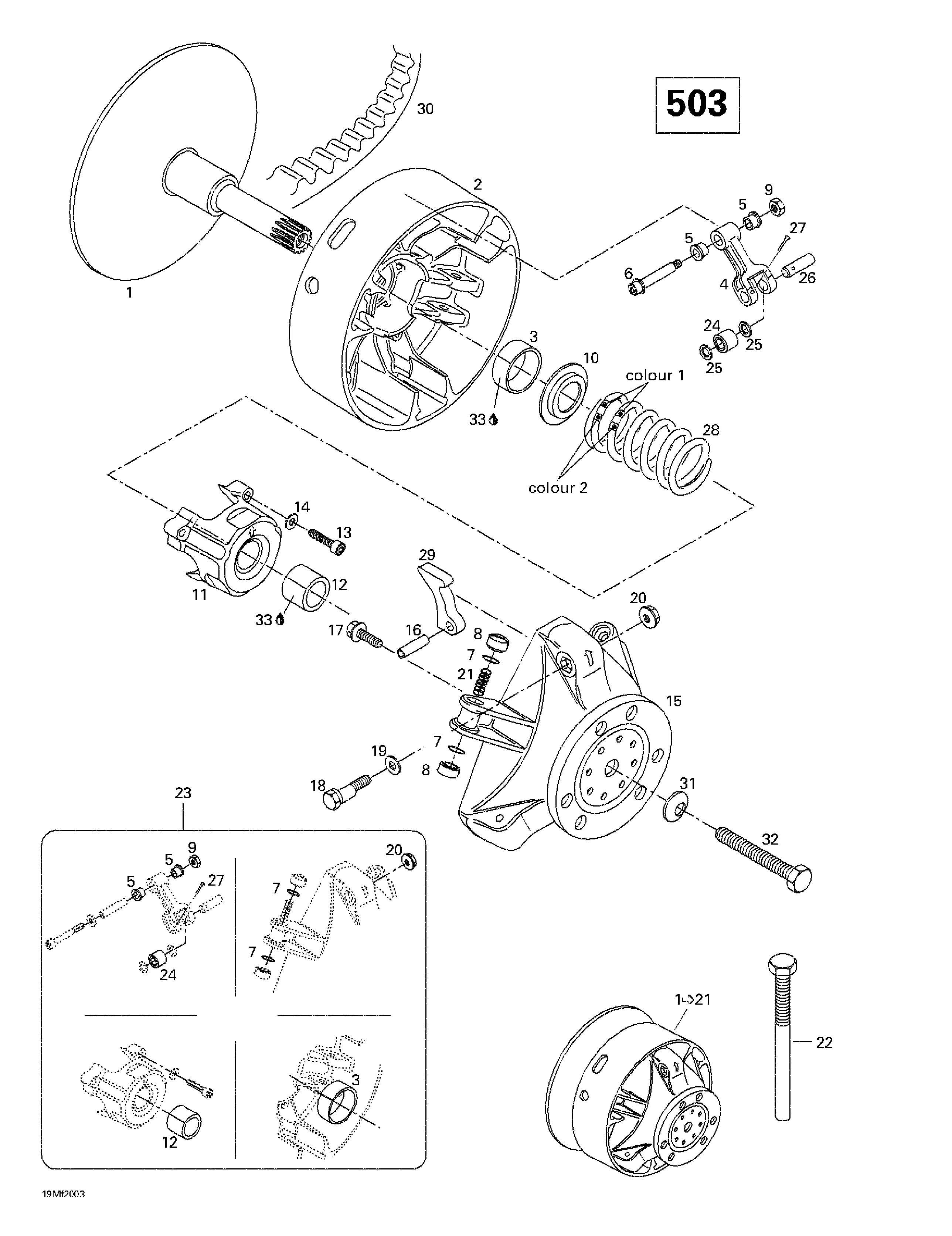

05- Drive Pulley (503) для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1417222284 Drive Pulley Ass'y. Includes 1 - 21. Skandic 500.Drive Pulley Ass'y. Includes 1 - 21. Skandic 500.
-
1417222071 Fixe Flange. Skandic 500.Fixe Flange. Skandic 500.
-
2417222049 Sliding Flange Ass'y. Includes 2 - 3. Skandic 500.Sliding Flange Ass'y. Includes 2 - 3. Skandic 500.
-
3417004201 Bushing Outer Half. Skandic 500.Bushing Outer Half. Skandic 500.
-
4417003801 Lever Ass'y. Includes 4 - 5. Skandic 500.Lever Ass'y. Includes 4 - 5. Skandic 500.
-
5417004305 Bushing. Skandic 500.Bushing. Skandic 500.
-
6417004800 Screw Ass'y. Skandic 500.Screw Ass'y. Skandic 500.
-
7732401030 O-Ring. Skandic 500.O-Ring. Skandic 500.
-
8417005800 Slider Shoe. Skandic 500.Slider Shoe. Skandic 500.
-
9232561414 Elastic Stop Nut M6. Skandic 500.Elastic Stop Nut M6. Skandic 500.
-
10417222044 Spring Seat. Skandic 500.Spring Seat. Skandic 500.
-
11417222157 Spring Cover Ass'y. Includes 11 - 12. Skandic 500.Spring Cover Ass'y. Includes 11 - 12. Skandic 500.
-
12417004501 Bushing Spring Cover. Skandic 500.Bushing Spring Cover. Skandic 500.
-
13205064086 Socket Head Screw M6 x 40. Skandic 500.Socket Head Screw M6 x 40. Skandic 500.
-
14420245370 Washer. Skandic 500.Washer. Skandic 500.
-
15417222081 Governor Cup. Skandic 500.Governor Cup. Skandic 500.
-
16732804009 Rolled Pin M8 x 24. Skandic 500.Rolled Pin M8 x 24. Skandic 500.
-
17210361890 Hex. Forming Screw M6 x 18. Skandic 500.Hex. Forming Screw M6 x 18. Skandic 500.
-
18417005500 Calibration Screw. Skandic 500.Calibration Screw. Skandic 500.
-
19417005600 Washer. Skandic 500.Washer. Skandic 500.
-
20233061414 Hex. Flange Nut M6. Skandic 500.Hex. Flange Nut M6. Skandic 500.
-
21417005700 Spring. Skandic 500.Spring. Skandic 500.
-
22529007900 Puller Inner Half. Skandic 500.Puller Inner Half. Skandic 500.
-
23417006100 Clutch Repair Kit. Skandic 500.Clutch Repair Kit. Skandic 500.
-
24417003900 Roller. Skandic 500.Roller. Skandic 500.
-
25417004302 Thrust Washer. Skandic 500.Thrust Washer. Skandic 500.
-
26417004309 Pin. Skandic 500.Pin. Skandic 500.
-
27732958001 Cotter Pin. Skandic 500.Cotter Pin. Skandic 500.
-
28414689800 Spring (Red/Red). Skandic 500.Spring (Red/Red). Skandic 500.
-
29417005292X Ramp 292X. Skandic 500.Ramp 292X. Skandic 500.
-
30415060600 Drive Belt. Skandic 500.Drive Belt. Skandic 500.
-
31234221414 Conical Spring Washer. Skandic 500.Conical Spring Washer. Skandic 500.
-
32417113800 Hex. Screw. Skandic 500.Hex. Screw. Skandic 500.
-
33413703100 Loctite 609, 10 ml. Skandic 500.Loctite 609, 10 ml. Skandic 500.
