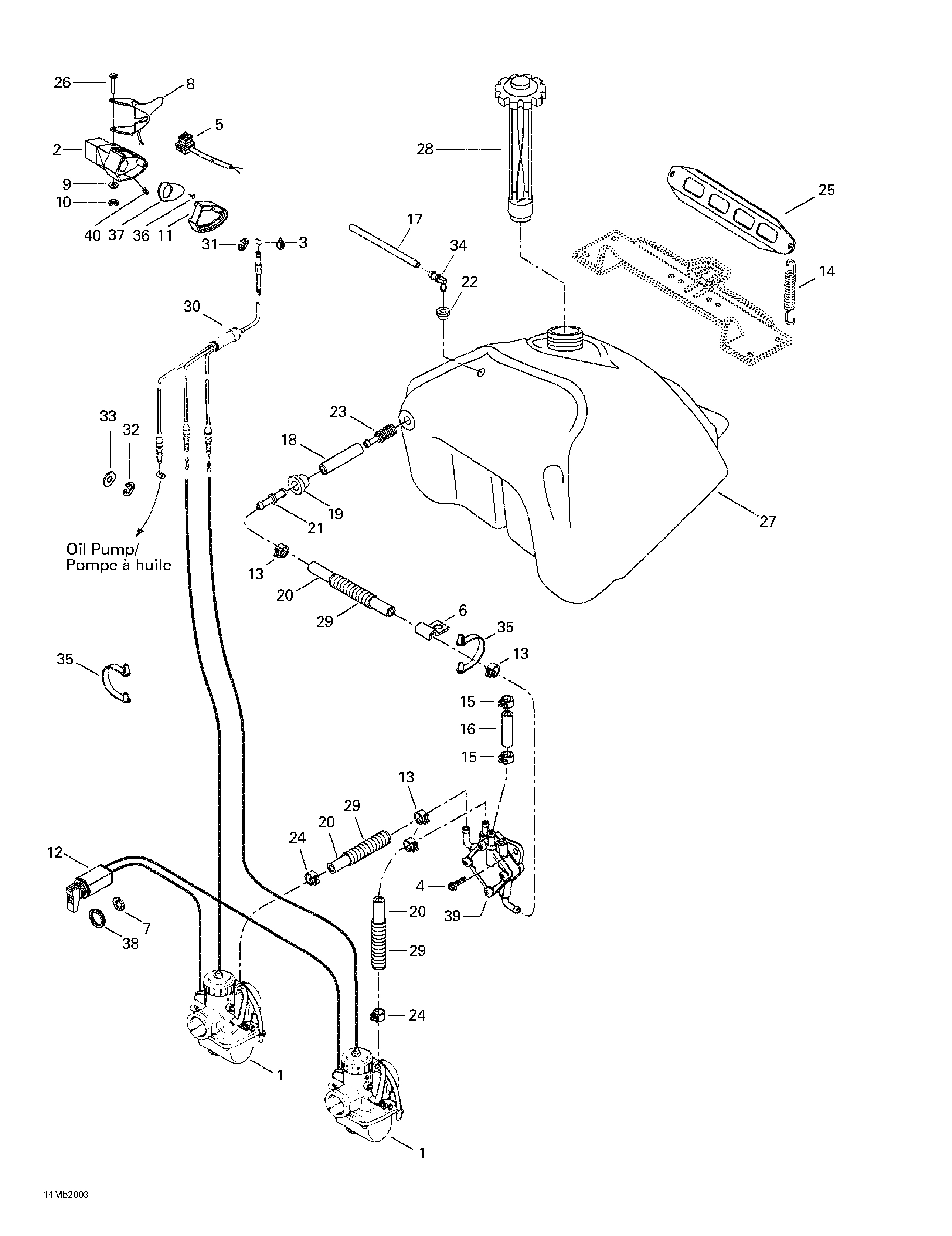

02- Fuel System для BRP Ski-Doo Skandic 380/500 - 2000
-
№АртикулНазвание
-
1403138600 Carburetor VM 30-200. Skandic 380.Carburetor VM 30-200. Skandic 380.
-
403138603 Carburetor VM 34-549 (PTO). Skandic 500.Carburetor VM 34-549 (PTO). Skandic 500.
-
403138604 Carburetor VM 34-550 (MAG). Skandic 500.Carburetor VM 34-550 (MAG). Skandic 500.
-
2572086700 Throttle Handle HousingThrottle Handle Housing
-
3293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
4210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
5512059146 Kill SwitchKill Switch
-
6415018200 ClipClip
-
7394103300 Internal Tooth Lock WasherInternal Tooth Lock Washer
-
8512059145 Heated Throttle Handle ass'y (30 mm). Skandic 380.Heated Throttle Handle ass'y (30 mm). Skandic 380.
-
512059144 Heated Throttle Handle ass'y (34 mm). Skandic 500.Heated Throttle Handle ass'y (34 mm). Skandic 500.
-
9414438900 WasherWasher
-
10414439000 CirclipCirclip
-
11572044600 Cover, Throttle HandleCover, Throttle Handle
-
12414967000 Choke CableChoke Cable
-
13414554800 Spring ClipSpring Clip
-
14517182100 SpringSpring
-
15414415200 Spring ClipSpring Clip
-
16415079800 Rubber HoseRubber Hose
-
17415080100 Primer LinePrimer Line
-
19570045500 GrommetGrommet
-
20415080200 LineLine
-
21414518500 Male ConnectorMale Connector
-
22570135100 GrommetGrommet
-
23414865700 Fuel FilterFuel Filter
-
24414420700 Spring ClampSpring Clamp
-
25517249200 Fuel Tank SupportFuel Tank Support
-
26414438700 Lever PinLever Pin
-
27572108900 Fuel TankFuel Tank
-
28572161200 Fuel Tank CapFuel Tank Cap
-
29415079900 TubingTubing
-
30414883100 Throttle CableThrottle Cable
-
31414274500 CirclipCirclip
-
32414753500 CirclipCirclip
-
33414753300 WasherWasher
-
34414814100 Male ConnectorMale Connector
-
35414379300 Cable ClipCable Clip
-
36414473200 ScrewScrew
-
37572099400 PlatePlate
-
38414977200 Plastic NutPlastic Nut
-
39403801000 Fuel PumpFuel Pump
-
40414440800 Set Screw M8 x 10Set Screw M8 x 10
