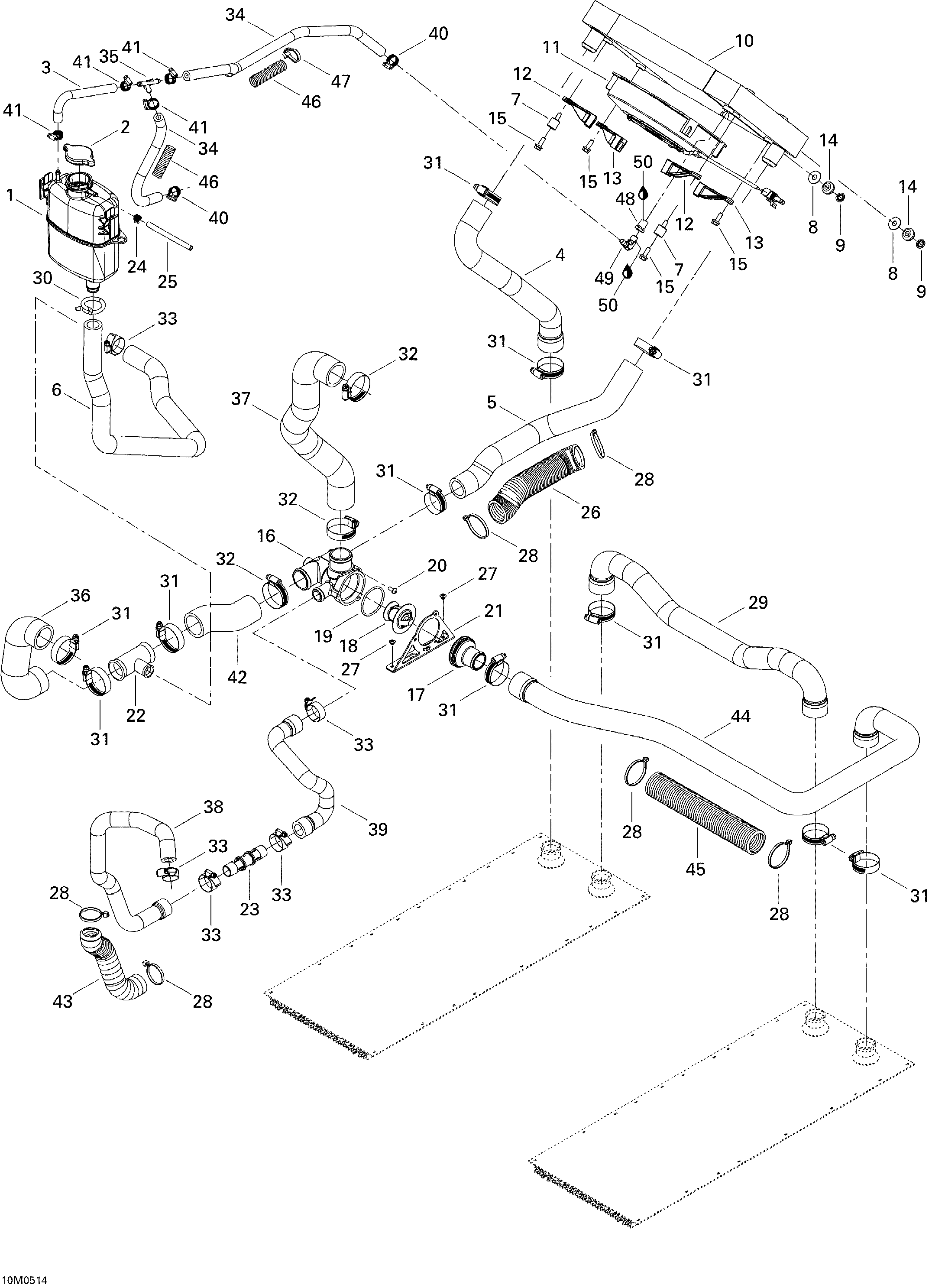

01- Cooling System для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1276000086 Coolant TankCoolant Tank
-
2509000180 Pressure CapPressure Cap
-
3276000131 Formed HoseFormed Hose
-
4509000174 Radiator Hose Return (Air)Radiator Hose Return (Air)
-
5509000175 Radiator Hose Exit (Air)Radiator Hose Exit (Air)
-
6509000227 Tank Hose ReturnTank Hose Return
-
7509000284 Anti-Vibration Rubber MountAnti-Vibration Rubber Mount
-
8507032396 SpacerSpacer
-
9250100046 Push-NutPush-Nut
-
10509000205 Radiator Ass'YRadiator Ass'Y
-
11709200075 Fan Ass'YFan Ass'Y
-
12709200076 Fan SupportFan Support
-
13709200095 Fan SupportFan Support
-
14414036300 GrommetGrommet
-
15207561644 Hex Flanged Screw Scotch Grip M6 X 16Hex Flanged Screw Scotch Grip M6 X 16
-
16509000206 Thermostat HousingThermostat Housing
-
17509000209 CoverCover
-
18420922690 Thermostat 87° CThermostat 87° C
-
19509000211 O-RingO-Ring
-
20205451286 Socket Head Screw M5 X 12Socket Head Screw M5 X 12
-
21509000242 Thermostat SupportThermostat Support
-
22509000283 T-FittingT-Fitting
-
23509000282 ''Hose Connector 3/4''''Hose Connector 3/4''
-
24414554800 Spring ClampSpring Clamp
-
25415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
26415084700 Protective ShieldProtective Shield
-
27390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29509000229 LH Radiator Exit HoseLH Radiator Exit Hose
-
30293650115 Spring ClampSpring Clamp
-
31293650045 Tridon Gear ClampTridon Gear Clamp
-
32293650075 Norma ClampNorma Clamp
-
33293650019 Tridon ClampTridon Clamp
-
34509000093 Hose 8 mmHose 8 mm
-
35293710059 Y-FittingY-Fitting
-
36509000233 Pump HosePump Hose
-
37509000234 Engine Exit HoseEngine Exit Hose
-
38509000236 Engine Coolant HoseEngine Coolant Hose
-
39509000265 Formed HoseFormed Hose
-
40293650171 Tridon ClampTridon Clamp
-
41293650170 Tridon Hose ClampTridon Hose Clamp
-
42509000262 HoseHose
-
43409902200 Tubing 25 mmTubing 25 mm
-
44509000231 Thermostat Exit HoseThermostat Exit Hose
-
45415084700 Protective ShieldProtective Shield
-
46415080000 Tubing, 16 mmTubing, 16 mm
-
47293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
48293700044 BushingBushing
-
49293700020 Elbow Fitting 90°Elbow Fitting 90°
-
50293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
