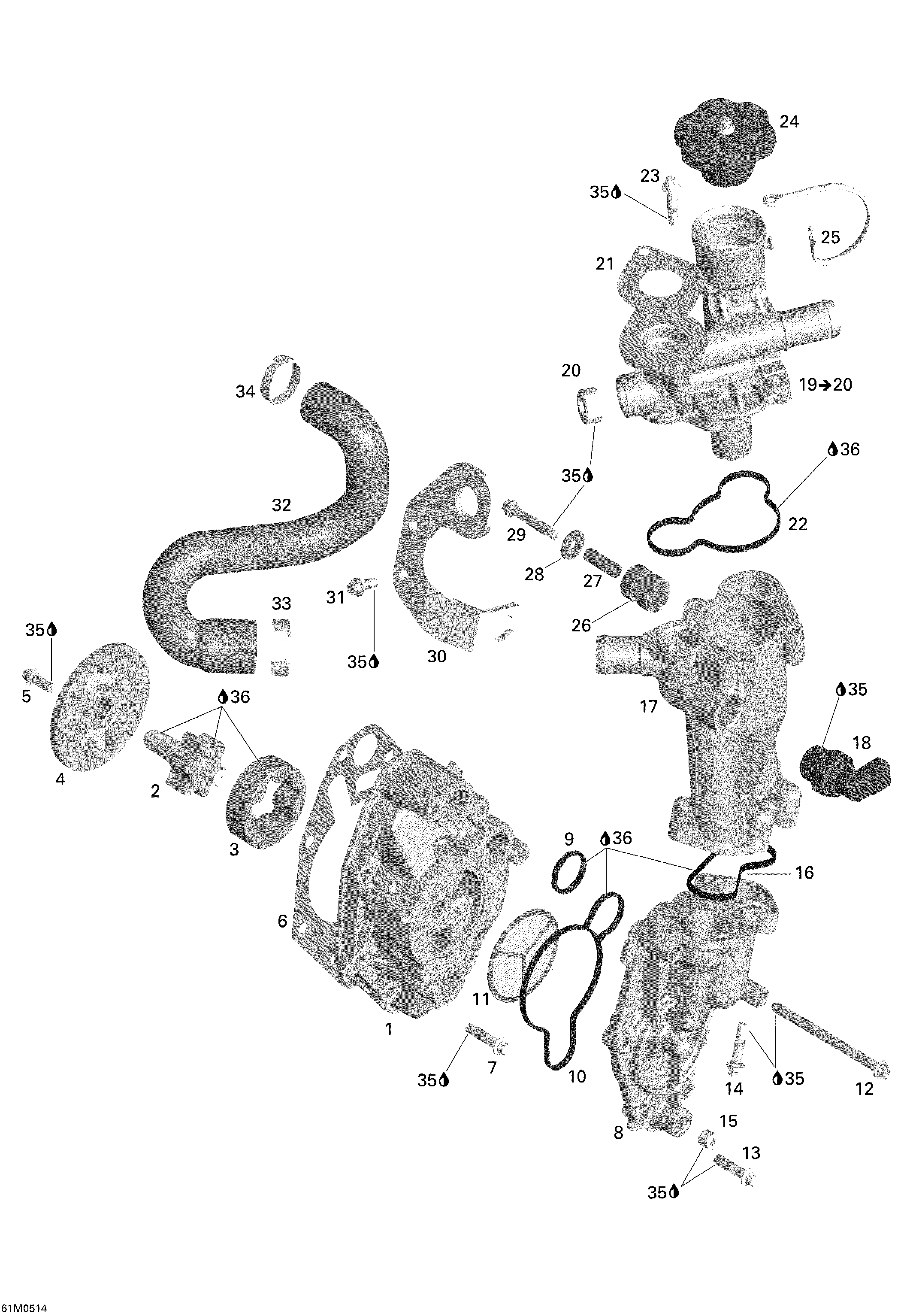

02- Oil Separator для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1420811840 Oil Pump HousingOil Pump Housing
-
2420837542 Pump Shaft Ass'YPump Shaft Ass'Y
-
3420956675 Oil Pump Rotor 16 mmOil Pump Rotor 16 mm
-
4420811850 Oil Pump CoverOil Pump Cover
-
5420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
6420950970 GasketGasket
-
7420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
8420811892 Oil Sieve CoverOil Sieve Cover
-
9420630240 Seal RingSeal Ring
-
10420950850 GasketGasket
-
11420256570 Oil SieveOil Sieve
-
12420641228 Torx Flanged Screw M6 X 8Torx Flanged Screw M6 X 8
-
13420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
14420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
15420641323 Screw M10Screw M10
-
16420630231 GasketGasket
-
17420956761 Oil Separator HousingOil Separator Housing
-
18420256885 Oil Pressure SwitchOil Pressure Switch
-
19420811962 Oil Separator Cover. Includes 19 to 20Oil Separator Cover. Includes 19 to 20
-
20420641313 Plug Screw M30Plug Screw M30
-
21420630540 GasketGasket
-
22420630220 GasketGasket
-
23420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
24420956922 Plug Cover Ass'YPlug Cover Ass'Y
-
25420660620 Retaining BandRetaining Band
-
26420660090 Rubber BracketRubber Bracket
-
27420847970 SpacerSpacer
-
28420827968 Flat Washer M6Flat Washer M6
-
29420641258 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
30420851610 Front Transport BracketFront Transport Bracket
-
31420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
32420956970 Formed HoseFormed Hose
-
33420851673 Gear ClampGear Clamp
-
34420851663 Gear ClampGear Clamp
-
35293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
36293600054 Engine Oil 4 Strokes, 0w40, 12 X 1 LiterEngine Oil 4 Strokes, 0w40, 12 X 1 Liter
