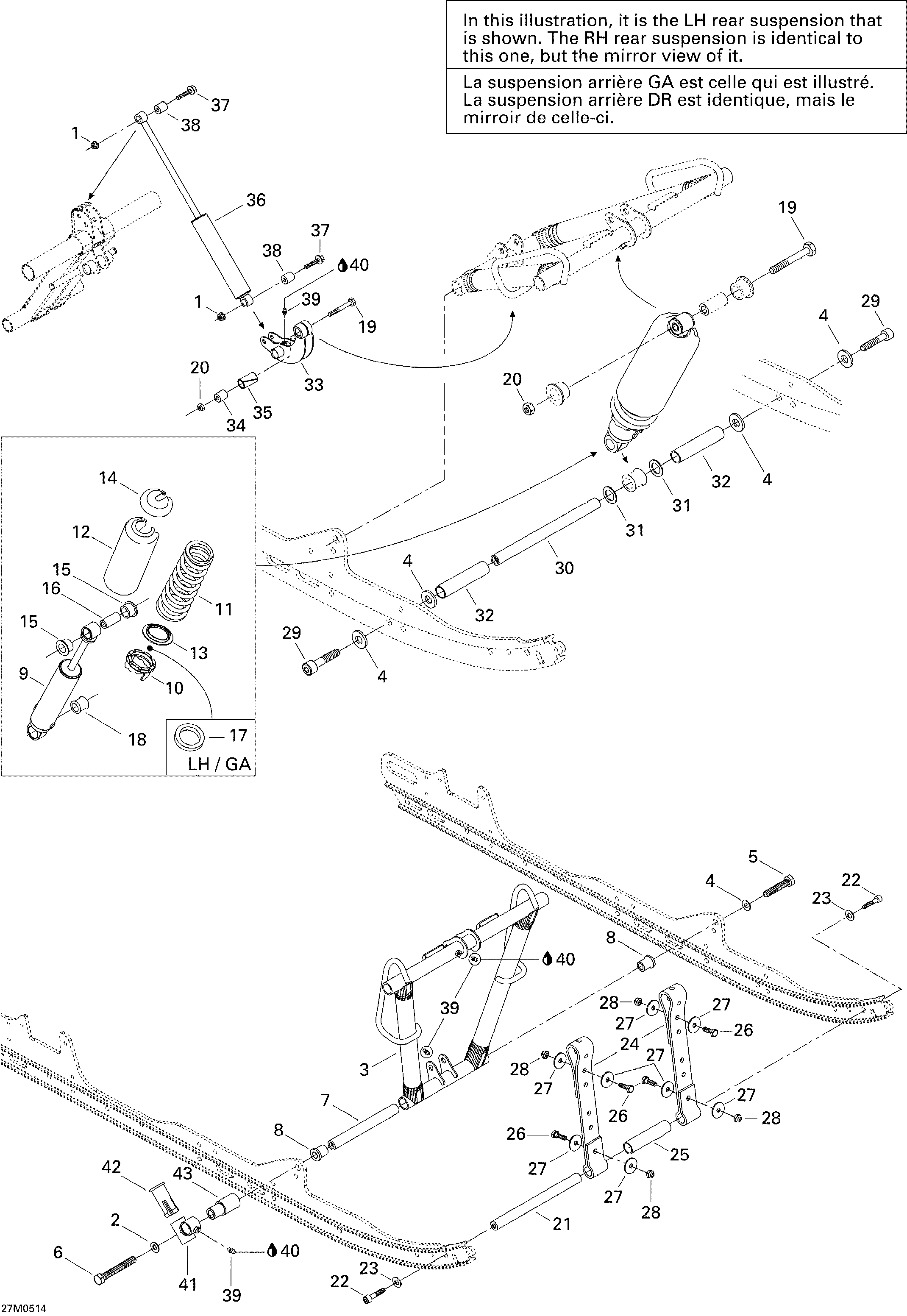

08- Front Arm для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
2234021410 Flat Washer 12 mmFlat Washer 12 mm
-
3503191083 Front ArmFront Arm
-
4503189276 WasherWasher
-
5207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
6230222044 Hex Screw M12 X 120, Scotch GripHex Screw M12 X 120, Scotch Grip
-
7503189313 ShaftShaft
-
8503189323 CushionCushion
-
9503190542 Center ShockCenter Shock
-
10505070150 Cam 45°Cam 45°
-
11503190543 SpringSpring
-
12503188930 ProtectorProtector
-
13517184300 Spring GuideSpring Guide
-
14503140600 Spring StopperSpring Stopper
-
15503189117 CushionCushion
-
16503189282 BushingBushing
-
17503190545 LH Shock SpacerLH Shock Spacer
-
18503189271 CushionCushion
-
19207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
20233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
21503189562 AxleAxle
-
22205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
23503189564 WasherWasher
-
24503190782 Stopper StrapStopper Strap
-
25503189265 SpacerSpacer
-
26207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
27224081301 Flat WasherFlat Washer
-
28233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
29205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
30503189272 Center Shock ShaftCenter Shock Shaft
-
31503189273 WasherWasher
-
32503189274 SpacerSpacer
-
33503189845 RockerRocker
-
34503189388 Rocker AxleRocker Axle
-
35503189626 CushionCushion
-
36503189426 Rear ShockRear Shock
-
37207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
38414936000 CushionCushion
-
39408200700 Grease FittingGrease Fitting
-
40219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
41503190537 BushingBushing
-
42572032600 CushionCushion
-
43503190528 Support BushingSupport Bushing
