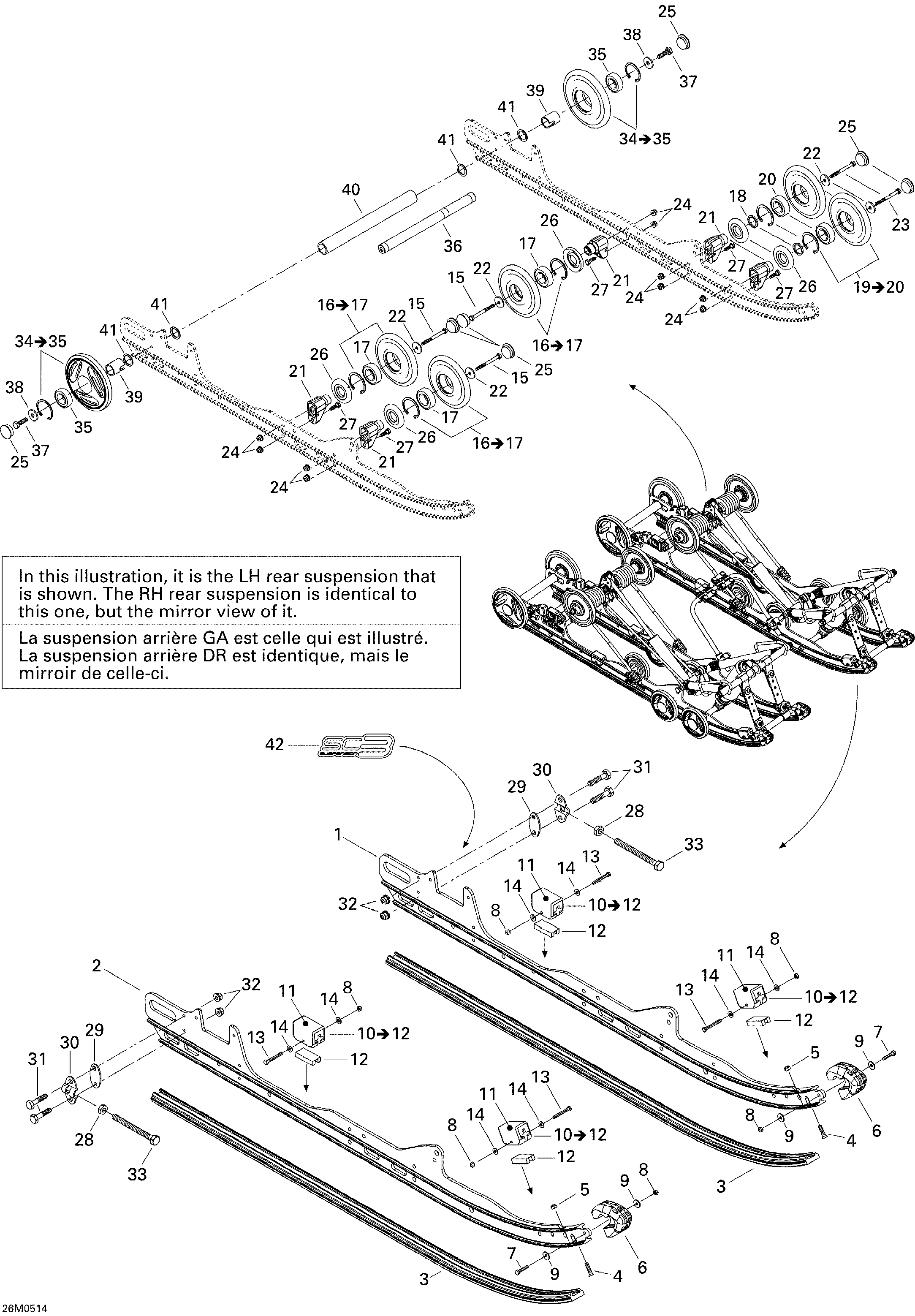

08- Rear Suspension для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1503190266 RunnerRunner
-
2503190651 Inside RunnerInside Runner
-
3503189639 ShoeShoe
-
4208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6572075400 Runner ProtectorRunner Protector
-
7207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
8232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
9391301600 WasherWasher
-
10503190905 Rubber Stopper Ass'y. Includes 10 to 12Rubber Stopper Ass'y. Includes 10 to 12
-
11570063000 Rubber StopperRubber Stopper
-
12572084800 Reinforcement StopperReinforcement Stopper
-
13207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
14391301700 WasherWasher
-
15207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
16503190798 Wheel 139 mm Ass'y. Includes 16 to 17Wheel 139 mm Ass'y. Includes 16 to 17
-
17503190795 Ball BearingBall Bearing
-
18503173700 WasherWasher
-
19503190796 Wheel 139 mm Ass'y, Full Moon. Includes 19 to 20Wheel 139 mm Ass'y, Full Moon. Includes 19 to 20
-
20503190795 Ball BearingBall Bearing
-
21503190389 SupportSupport
-
22503183100 WasherWasher
-
23207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
24233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
25570063600 Wheel CapWheel Cap
-
26572089000 Labyrinth SealLabyrinth Seal
-
27207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
28233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
29503189160 Tensioner SpacerTensioner Spacer
-
30503155300 TensionerTensioner
-
31207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
32233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
34503190801 Wheel 180 Ass'y, Full Moon. Includes 34 to 35Wheel 180 Ass'y, Full Moon. Includes 34 to 35
-
35503190795 Ball BearingBall Bearing
-
36503162400 Rear AxleRear Axle
-
37250000019 Hex Screw With NylonHex Screw With Nylon
-
38503183300 WasherWasher
-
39503189809 Outer SpacerOuter Spacer
-
40503188941 SpacerSpacer
-
41503180400 WasherWasher
-
42516002658 Suspension DecalSuspension Decal
