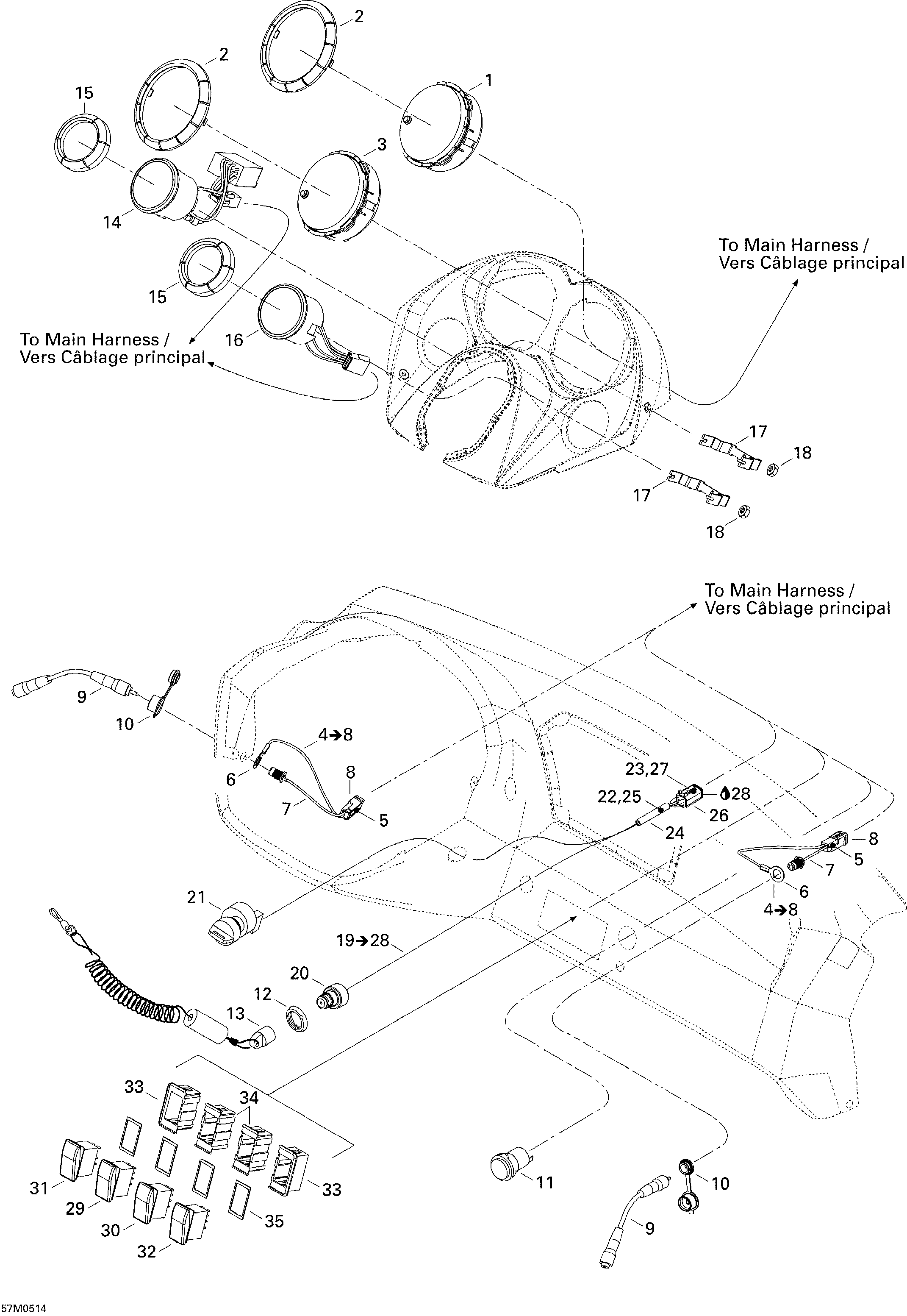

10- Electrical Accessories, Console для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1515176244 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515176275 TachometerTachometer
-
4515175964 Visor Plug Harness. Includes items 4 to 8Visor Plug Harness. Includes items 4 to 8
-
5515175232 Male TerminalMale Terminal
-
6515175172 Open BarrelOpen Barrel
-
7293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
8515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
9515175971 ExtensionExtension
-
10572103300 CapCap
-
11861507200 Power Outlet Kit, 12 VoltsPower Outlet Kit, 12 Volts
-
12278000508 NutNut
-
13515166900 Dess CapDess Cap
-
14515176214 Temperature GaugeTemperature Gauge
-
15515176216 Ring GaugeRing Gauge
-
16515176215 Fuel GaugeFuel Gauge
-
17515176235 Case HolderCase Holder
-
18515176236 Lock NutLock Nut
-
19515176089 Starter Switch Ass'Y. Includes items 19 to 28Starter Switch Ass'Y. Includes items 19 to 28
-
20515176126 Anti-Theft PostAnti-Theft Post
-
21515176127 Starter SwitchStarter Switch
-
22278000230 Male TerminalMale Terminal
-
23293000052 Sealing CapSealing Cap
-
24515175314 TubingTubing
-
25278001008 Isolating TubingIsolating Tubing
-
26515175673 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
27515175678 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
29515175945 Grip SwitchGrip Switch
-
30515175946 Heating Thumb SwitchHeating Thumb Switch
-
31515175951 Light SwitchLight Switch
-
32515175862 Grip SwitchGrip Switch
-
33515176098 Switch HousingSwitch Housing
-
34515176099 Switch HousingSwitch Housing
-
35204470132 GasketGasket
