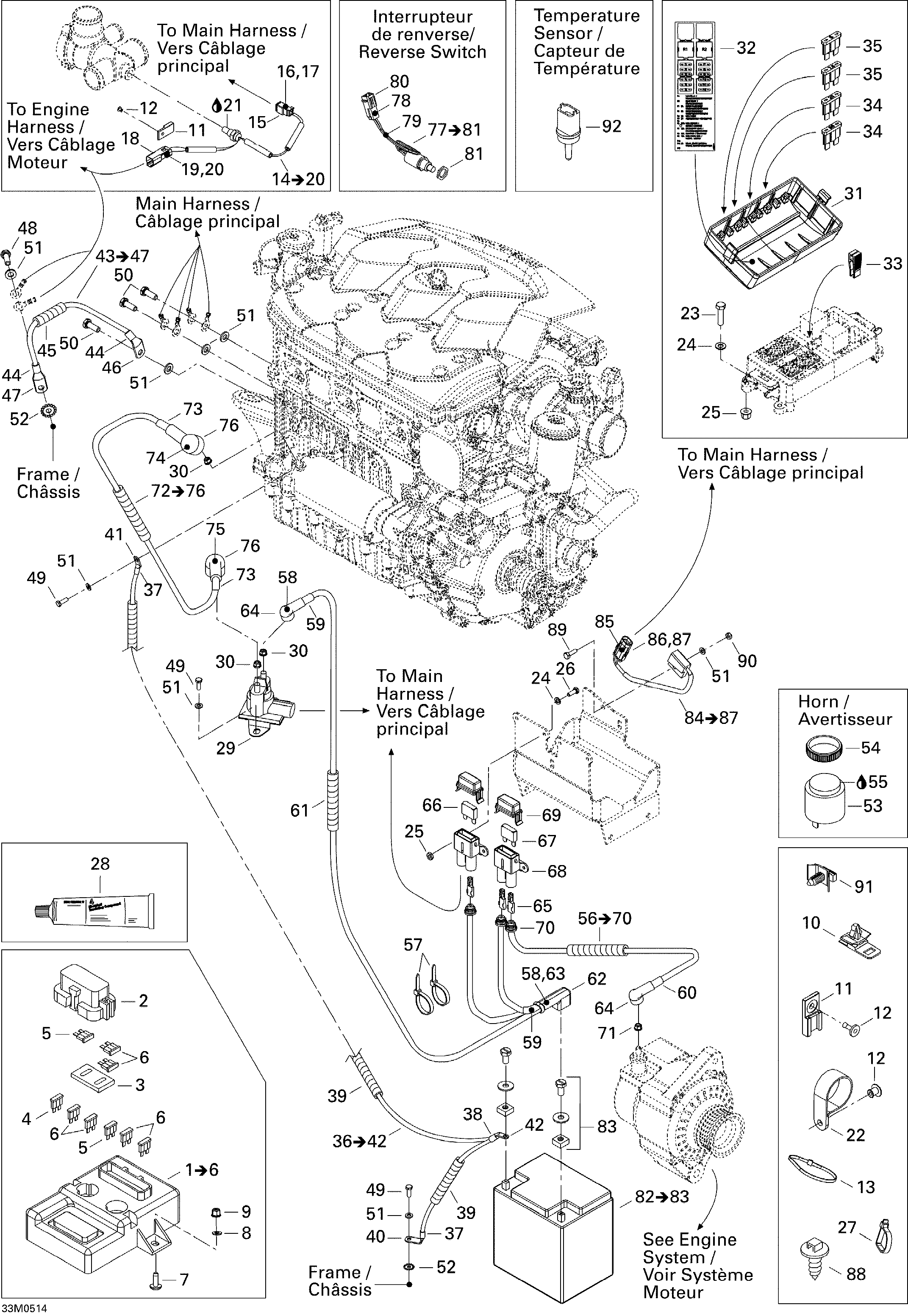

10- Electrical System для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1515175858 Fuse Holder. Includes items 1 to 6Fuse Holder. Includes items 1 to 6
-
2278001618 Fuse Holder CoverFuse Holder Cover
-
3278001719 Cover BushingCover Bushing
-
4278001442 Fuse 2 AmperesFuse 2 Amperes
-
5278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
6278001197 Fuse 10 AmperesFuse 10 Amperes
-
7211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
8234061410 Flat Washer M6Flat Washer M6
-
9233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10515175283 Housing SupportHousing Support
-
11270000141 ClipClip
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
14515175974 Temperature Sensor. Includes items 14 to 20Temperature Sensor. Includes items 14 to 20
-
15515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
16278000632 Female TerminalFemale Terminal
-
17515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
18515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
19278000631 Male TerminalMale Terminal
-
20409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
21293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
22515176113 Cable ClampCable Clamp
-
22515176154 Cable ClampCable Clamp
-
22515176174 Cable ClampCable Clamp
-
23207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
24234051410 Flat WasherFlat Washer
-
25233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
26207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
29278001802 Relay StarterRelay Starter
-
30233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
31515176066 CoverCover
-
32516002727 Fuse DecalFuse Decal
-
33515175811 Fuse ToolFuse Tool
-
34278001197 Fuse 10 AmperesFuse 10 Amperes
-
35409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
36515175865 Battery Ground Cable. Includes items 36 to 42Battery Ground Cable. Includes items 36 to 42
-
37710000483 Heat Shrink TubingHeat Shrink Tubing
-
38275500578 Heat Shrink Tubing 40 mmHeat Shrink Tubing 40 mm
-
39710000497 Protector TubingProtector Tubing
-
40710000508 Terminal 90°Terminal 90°
-
41710000540 Terminal 45°Terminal 45°
-
42710000539 Terminal 45°Terminal 45°
-
43515175973 Engine Cable Ground. Includes items 43 to 47Engine Cable Ground. Includes items 43 to 47
-
44710000483 Heat Shrink TubingHeat Shrink Tubing
-
45710000497 Protector TubingProtector Tubing
-
46710000507 Terminal 45°Terminal 45°
-
47710000515 Flat TerminalFlat Terminal
-
48207362044 Hex Screw M6 X 20 (Scotch Grip)Hex Screw M6 X 20 (Scotch Grip)
-
49207361644 Hex Screw M6 X 16, Scotch GripHex Screw M6 X 16, Scotch Grip
-
50207361260 Hex Screw M6 X 12 (Scotch Grip)Hex Screw M6 X 12 (Scotch Grip)
-
51234061410 Flat Washer M6Flat Washer M6
-
52250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
53515176035 HornHorn
-
54414805101 Plastic NutPlastic Nut
-
55296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
56515175868 Battery Cable. Includes items 56 to 70Battery Cable. Includes items 56 to 70
-
57293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
58710000479 TerminalTerminal
-
59710000483 Heat Shrink TubingHeat Shrink Tubing
-
60512059668 Heat Shrink Tubing 25 mmHeat Shrink Tubing 25 mm
-
61710000497 Protector TubingProtector Tubing
-
62710000516 Rubber CapRubber Cap
-
63710000518 TerminalTerminal
-
64278001771 Protector CapProtector Cap
-
65515176106 Female TerminalFemale Terminal
-
66515176107 Fuse 50 AmperesFuse 50 Amperes
-
67515176108 Fuse 60 AmperesFuse 60 Amperes
-
68515176105 Fuse HolderFuse Holder
-
69515176109 Fuse CoverFuse Cover
-
70515176110 Wire SealWire Seal
-
71233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
72515175972 Starter Cable. Includes items 72 to 76Starter Cable. Includes items 72 to 76
-
73710000483 Heat Shrink TubingHeat Shrink Tubing
-
74710000507 Terminal 45°Terminal 45°
-
75710000515 Flat TerminalFlat Terminal
-
76278001771 Protector CapProtector Cap
-
77515175967 Switch Ass'Y. Includes items 77 to 81Switch Ass'Y. Includes items 77 to 81
-
78515175232 Male TerminalMale Terminal
-
79293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
80515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
81250100012 Brass NutBrass Nut
-
82515176151 Battery. Includes items 82 to 83Battery. Includes items 82 to 83
-
83515176081 Battery Bolt KitBattery Bolt Kit
-
84278001547 ''T.O.P.S.'' Interrupter. Includes items 84 to 87''T.O.P.S.'' Interrupter. Includes items 84 to 87
-
85278000217 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
87278000218 Wire SealWire Seal
-
88293730018 Dart MountDart Mount
-
89207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
90233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
91278001775 Self-Locking ClipSelf-Locking Clip
-
92270600000 Air SensorAir Sensor
