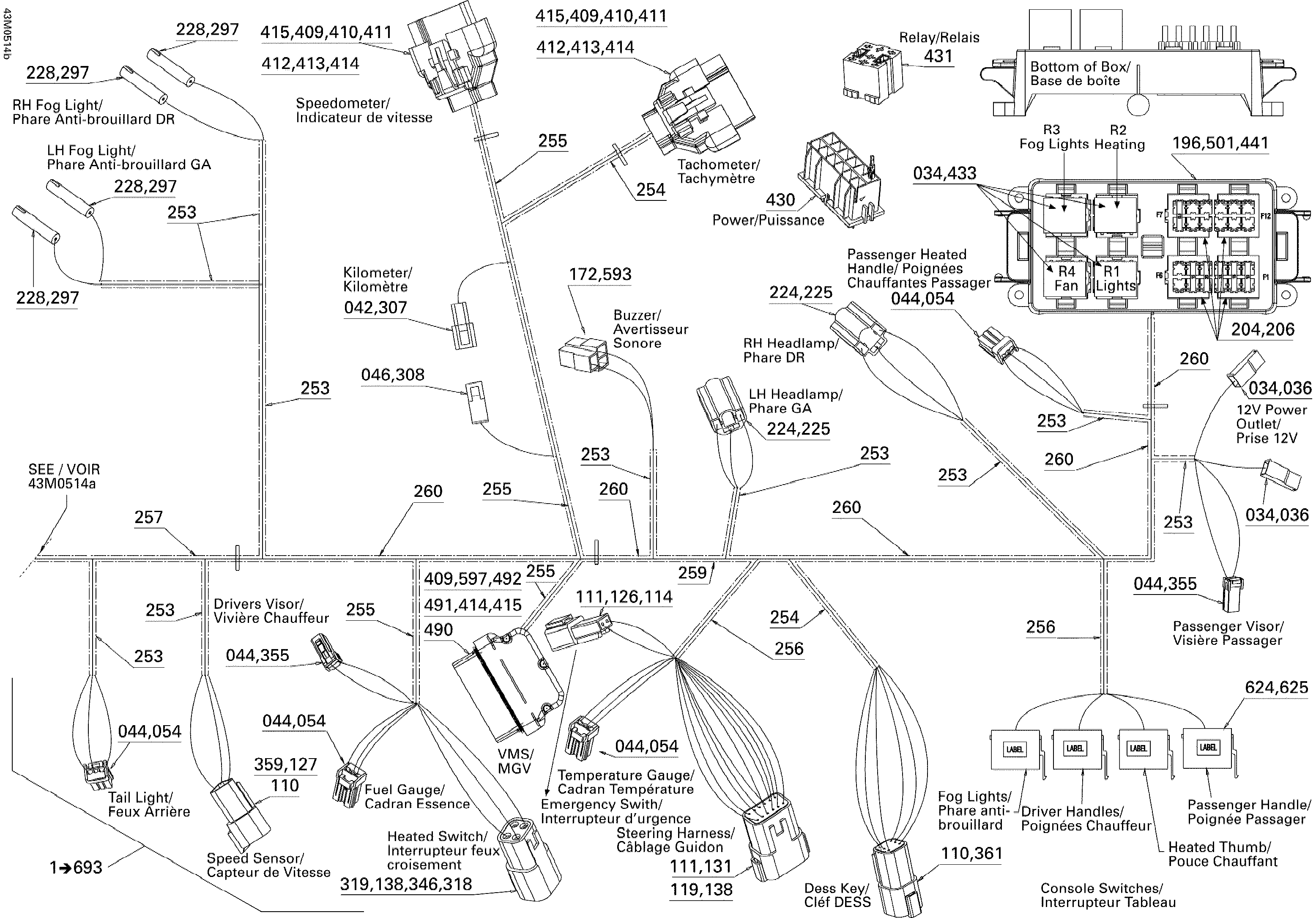

10- Electrical Harness 2 для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1515176266 Main Harness. Includes items 1 to 693Main Harness. Includes items 1 to 693
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
42515175273 Male TerminalMale Terminal
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
88278001009 Female TerminalFemale Terminal
-
99278000992 Ring TerminalRing Terminal
-
100409012500 Open BarrelOpen Barrel
-
101278001392 Open BarrelOpen Barrel
-
110278000631 Male TerminalMale Terminal
-
111515175823 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
113278001661 Female TerminalFemale Terminal
-
114409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
119409015800 Male Terminal Housing, 12 CircuitsMale Terminal Housing, 12 Circuits
-
120409207300 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
122278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
129278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
132409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
134278000738 Lock Female (4 Circuits)Lock Female (4 Circuits)
-
138293000052 Sealing CapSealing Cap
-
172561503100 Female TerminalFemale Terminal
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
193278001197 Fuse 10 AmperesFuse 10 Amperes
-
194278001197 Fuse 10 AmperesFuse 10 Amperes
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
202278001114 Female TerminalFemale Terminal
-
203278001113 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
204409003600 Female TerminalFemale Terminal
-
206409004200 Female TerminalFemale Terminal
-
224515175321 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
226278000222 Male TerminalMale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
231278000217 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
237278000220 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
246409004300 Male TerminalMale Terminal
-
253515175442 Tubing, 6 mmTubing, 6 mm
-
254409901700 Tubing, 9 mmTubing, 9 mm
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
256415080000 Tubing, 16 mmTubing, 16 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
260515175319 Tubing 22 mmTubing 22 mm
-
280409012100 Female TerminalFemale Terminal
-
285710000078 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
286409012300 SealSeal
-
287710000080 CapCap
-
297278001007 Insulation SheathInsulation Sheath
-
300278000343 Fuse 15 AmperesFuse 15 Amperes
-
307515175509 Male Terminal Housing, 1 CircuitMale Terminal Housing, 1 Circuit
-
308515175510 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
309515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
318278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
319515175568 Male TerminalMale Terminal
-
323515175580 Low Temperatue TubingLow Temperatue Tubing
-
346278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
355515175658 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
359515175666 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
361515175668 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
365515175672 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
366515175673 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
370515175677 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
371515175678 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
382515175704 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
388278001750 Female TerminalFemale Terminal
-
389278001752 Female TerminalFemale Terminal
-
391278001751 Female Terminal Housing, 41 CircuitsFemale Terminal Housing, 41 Circuits
-
401278001505 Wire SealWire Seal
-
409515175812 PlugPlug
-
410515175801 Female Terminal Housing, 24 CircuitsFemale Terminal Housing, 24 Circuits
-
411515175802 RetainerRetainer
-
412515175803 Wire SealWire Seal
-
413515175804 BlockBlock
-
414515175805 LockLock
-
415515175806 Female TerminalFemale Terminal
-
430515175857 Fuse HolderFuse Holder
-
431515175856 Relay HolderRelay Holder
-
433515175854 Female TerminalFemale Terminal
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
441410113604 RelayRelay
-
443710000335 Female TerminalFemale Terminal
-
466415128525 Fuse (0.5 Ampere)Fuse (0.5 Ampere)
-
469414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
469515175979 SealSeal
-
490710000394 Wire SealWire Seal
-
491710000395 Female Housing 32 PinsFemale Housing 32 Pins
-
492710000396 Female Housing 32 PinsFemale Housing 32 Pins
-
501515176065 Fuse Box BaseFuse Box Base
-
502710000413 Housing 32 PinsHousing 32 Pins
-
504278001065 Wire SealWire Seal
-
593515176069 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
597515176055 Terminal RetainerTerminal Retainer
-
598515176051 Female HousingFemale Housing
-
599515176053 Female TerminalFemale Terminal
-
600515176052 Female TerminalFemale Terminal
-
601515176056 LatchLatch
-
602515176057 LockLock
-
603278001725 Diagnostique Connection CapDiagnostique Connection Cap
-
604515176054 Female HousingFemale Housing
-
620515176106 Female TerminalFemale Terminal
-
624710000221 Female TerminalFemale Terminal
-
625278001321 Male Terminal Housing (8 Circuits)Male Terminal Housing (8 Circuits)
-
627515176110 Wire SealWire Seal
-
693278002031 Female TerminalFemale Terminal
