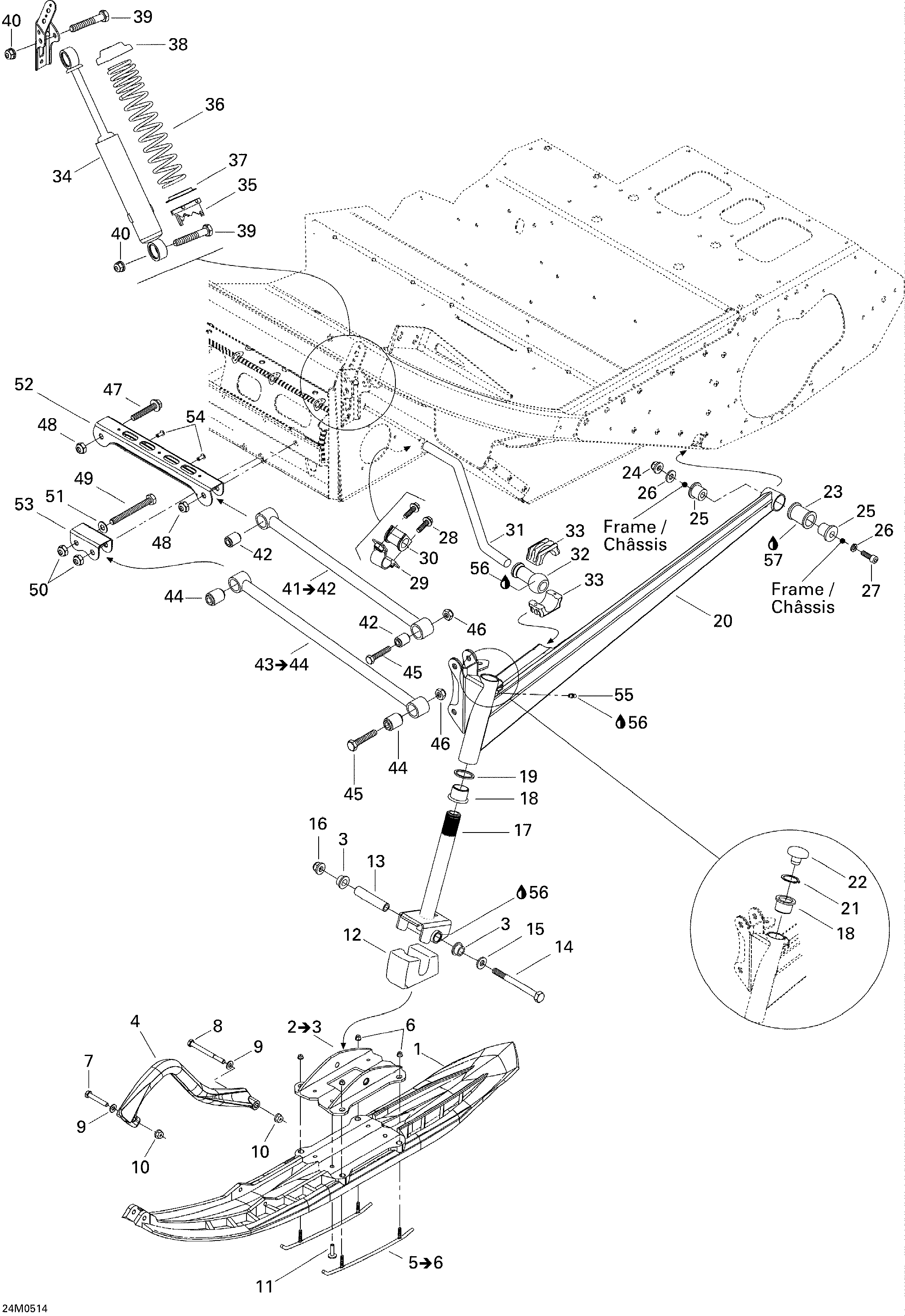

07- Front Suspension And Ski для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1505070727 Precision Ski (Black)Precision Ski (Black)
-
2505070764 Bridge Ass'Y. Includes 2 To 3Bridge Ass'Y. Includes 2 To 3
-
3505070001 BushingBushing
-
4505070963 Handle (Black)Handle (Black)
-
5860504900 Carbide Runner Kit. Includes 5 To 6Carbide Runner Kit. Includes 5 To 6
-
6233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
7207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
8207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
9234081410 Flat Washer M8Flat Washer M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11293150090 Pop Rivet 1/4Pop Rivet 1/4
-
12506151233 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex Screw M10 X 110Hex Screw M10 X 110
-
15732900049 WasherWasher
-
16732610084 Flanged Nut M10Flanged Nut M10
-
17506151234 Ski LegSki Leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505071027 RH Swing ArmRH Swing Arm
-
20505071028 LH Swing ArmLH Swing Arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23505071183 Rubber DamperRubber Damper
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25505071029 CushionCushion
-
26503175800 WasherWasher
-
27207008086 Hex Screw M10 X 80Hex Screw M10 X 80
-
28207581646 Hex Flanged Screw M8 X 16 (Scotch Grip)Hex Flanged Screw M8 X 16 (Scotch Grip)
-
29505071266 Stabilisator ClampStabilisator Clamp
-
30505070881 RH Bushing (5/8'')RH Bushing (5/8'')
-
31505070563 StabilisatorStabilisator
-
32505070819 Ball JointBall Joint
-
33505070817 Sliding BlockSliding Block
-
34505071413 Front ShockFront Shock
-
35503183700 CamCam
-
36505071414 SpringSpring
-
37503187500 Spring GuideSpring Guide
-
38503140600 Spring StopperSpring Stopper
-
39207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
40233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
41505070580 Upper Arm Ass'Y. Includes 41 To 42Upper Arm Ass'Y. Includes 41 To 42
-
42505070025 BushingBushing
-
43505070402 Lower Arm Ass'Y. Includes 43 To 44Lower Arm Ass'Y. Includes 43 To 44
-
44505070025 BushingBushing
-
45207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
46233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
47207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
48233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
49207009544 Hex Screw M10 X 95Hex Screw M10 X 95
-
50233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
51234001410 Flat Washer M10Flat Washer M10
-
52505070010 Upper Arm BracketUpper Arm Bracket
-
53505070011 Lower Arm BracketLower Arm Bracket
-
54390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
55408200700 Grease FittingGrease Fitting
-
56413711500 Synthetic GreaseSynthetic Grease
-
57293550030 Grease, Super LubeGrease, Super Lube
