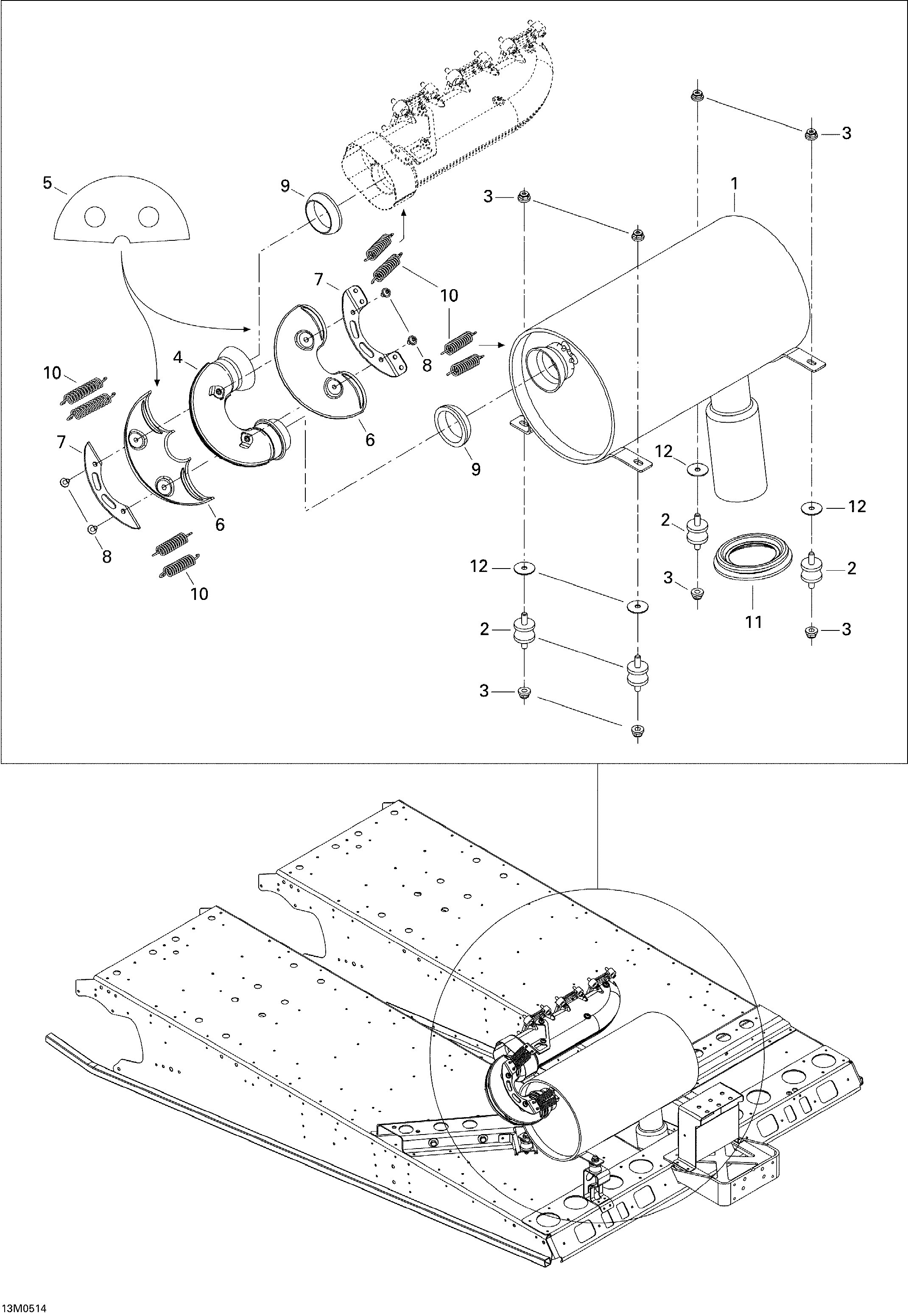

01- Exhaust System для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1514053481 Muffler Ass'YMuffler Ass'Y
-
2514052994 Rubber MountRubber Mount
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4514053711 ElbowElbow
-
5514053625 Wooll InsulatingWooll Insulating
-
6514053530 Heat ShieldHeat Shield
-
7514053714 BracketBracket
-
8514053811 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
9514053712 Exhaust GasketExhaust Gasket
-
10514053793 SpringSpring
-
11514053394 Exhaust GrommetExhaust Grommet
-
12514052891 Insulated WasherInsulated Washer
