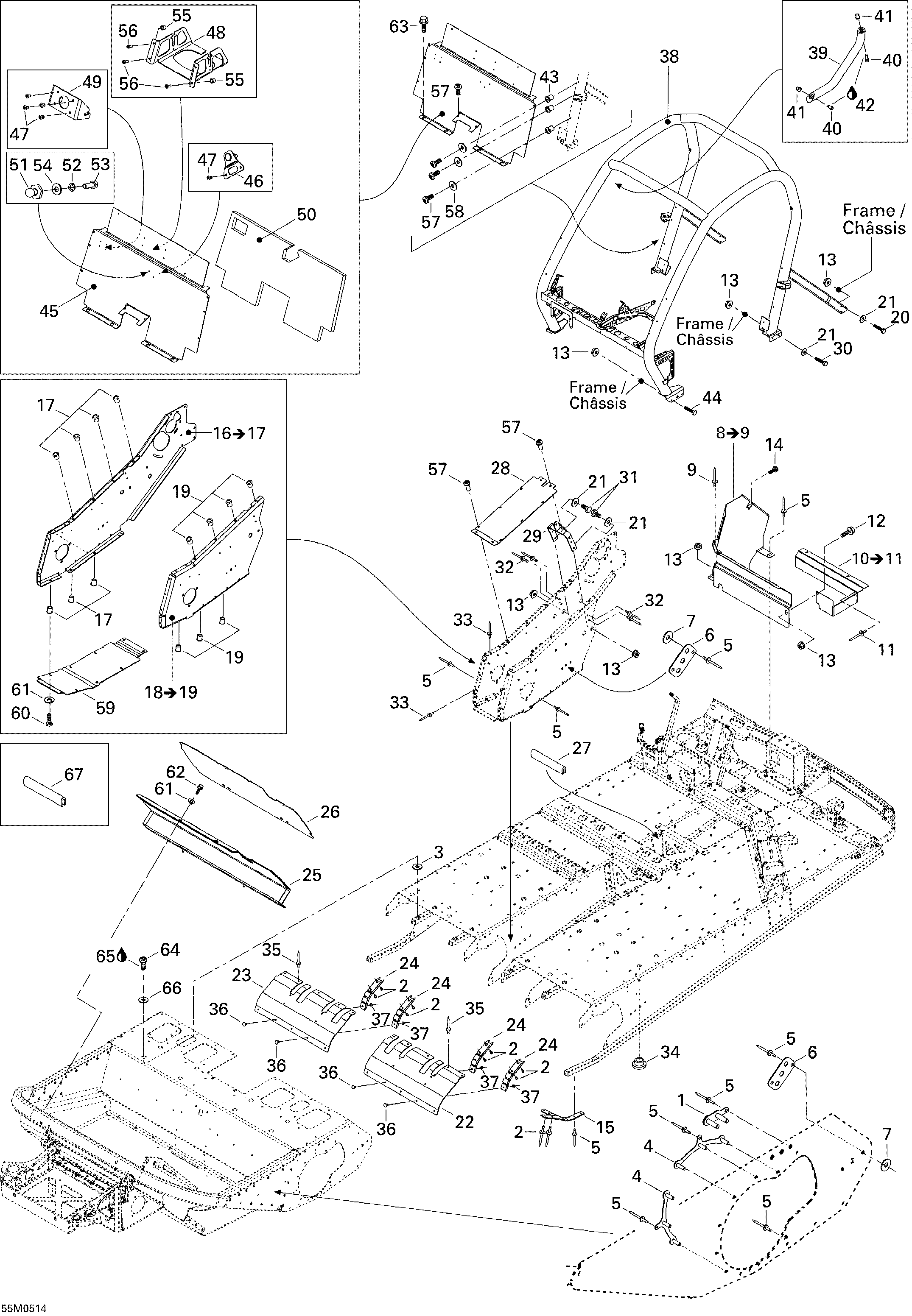

09- Frame and Components для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1518323837 SupportSupport
-
2390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
3503189273 WasherWasher
-
4518323673 SpacerSpacer
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518201321 Reinforcement PlateReinforcement Plate
-
7391301600 WasherWasher
-
8518324277 Heat Deflector. Includes 8 to 9Heat Deflector. Includes 8 to 9
-
9390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
10514053939 Deflector. Includes 10 to 11Deflector. Includes 10 to 11
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
13233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
14207561644 Hex Flanged Screw Scotch Grip M6 X 16Hex Flanged Screw Scotch Grip M6 X 16
-
15518323783 Junction Plate RHJunction Plate RH
-
15518323784 Junction Plate LHJunction Plate LH
-
17415107300 InsertInsert
-
19415107300 InsertInsert
-
20207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
21224081201 Flat WasherFlat Washer
-
22518324684 RH DeflectorRH Deflector
-
23518324685 LH DeflectorLH Deflector
-
24518324720 ProtectorProtector
-
25518323941 FootrestFootrest
-
26518324270 Footrest CarpetFootrest Carpet
-
27517303385 Black TrimBlack Trim
-
28518324128 Belt GuardBelt Guard
-
29518323795 Belt SupportBelt Support
-
30207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
31207183044 Hex Screw M8 X 30Hex Screw M8 X 30
-
32293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
33293150126 ''Rivet 3/16''''Rivet 3/16''
-
34518323977 Plastic CapPlastic Cap
-
35293150102 Rivet 3/16Rivet 3/16
-
36293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
37517225900 Flat WasherFlat Washer
-
38518323668 Upper FrameUpper Frame
-
39518324227 HandleHandle
-
40205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
41415107300 InsertInsert
-
42293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
43415107300 InsertInsert
-
44207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
45518324023 Lateral ReinforcementLateral Reinforcement
-
46518323685 Welded PlateWelded Plate
-
47293150102 Rivet 3/16Rivet 3/16
-
48518323700 Coolant Tank SupportCoolant Tank Support
-
49518323661 Front Belt Guard SupportFront Belt Guard Support
-
50518323852 Isolating FoamIsolating Foam
-
51517245800 KnobKnob
-
52234151401 Lock Washer 5 mmLock Washer 5 mm
-
53207151444 Hex Screw M5 X 14Hex Screw M5 X 14
-
54391301700 WasherWasher
-
55415107300 InsertInsert
-
56250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
57250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
58250200029 Washer 6 mmWasher 6 mm
-
59518322981 Center Junction PlateCenter Junction Plate
-
60207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
61234161471 Lock Washer 6 mmLock Washer 6 mm
-
62207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
63207581646 Hex Flanged Screw M8 X 16 (Scotch Grip)Hex Flanged Screw M8 X 16 (Scotch Grip)
-
64205481046 Socket Screw M8 X 10Socket Screw M8 X 10
-
65293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
66234082600 Flat Washer 8 mmFlat Washer 8 mm
-
67517303385 Black TrimBlack Trim
