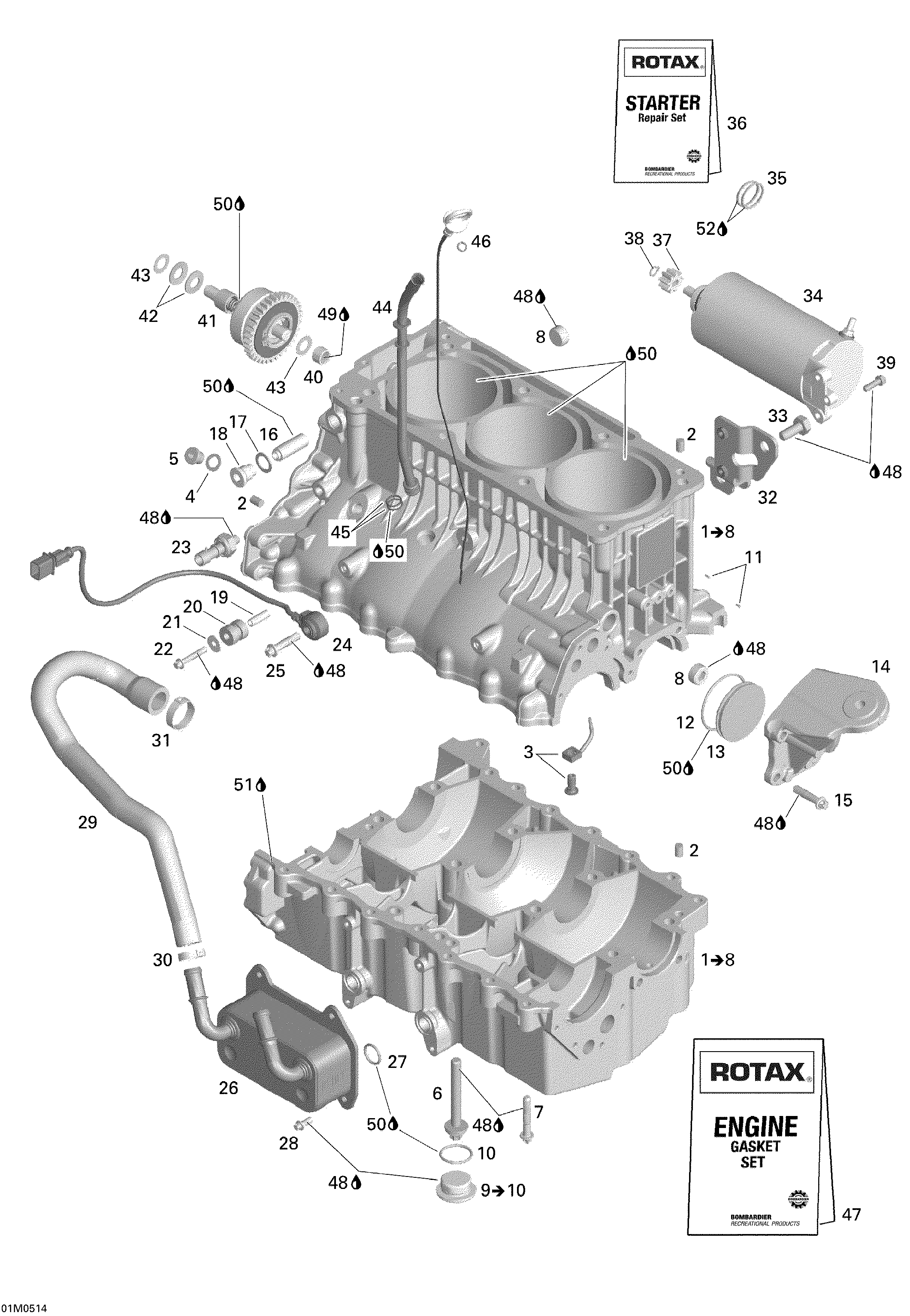

01- Engine Block для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1420888814 Engine Block Ass'y 1503, Elite. Includes 1 to 8Engine Block Ass'y 1503, Elite. Includes 1 to 8
-
2420632010 Center PinCenter Pin
-
3420956775 Adapter Oil HoleAdapter Oil Hole
-
4420250015 Sealing`RingSealing`Ring
-
5420841923 Plug Screw M12Plug Screw M12
-
6420641120 Torx Flanged Screw M10 X 82Torx Flanged Screw M10 X 82
-
7420641203 Torx Flanged Screw M8 X 45Torx Flanged Screw M8 X 45
-
8420641313 Plug Screw M30Plug Screw M30
-
9420641170 Plug Screw M30. Includes 9 to 10Plug Screw M30. Includes 9 to 10
-
10420631300 O-RingO-Ring
-
11420249073 Grooved PinGrooved Pin
-
12420430405 O-RingO-Ring
-
13420660110 Plug CoverPlug Cover
-
14420811790 Front Engine BracketFront Engine Bracket
-
15420641188 Torx Flanged Screw M8 X 3Torx Flanged Screw M8 X 3
-
16420236252 Chain TensionerChain Tensioner
-
17420430623 Gasket RingGasket Ring
-
18420640453 Plug Screw M16Plug Screw M16
-
19420847970 SpacerSpacer
-
20420660090 Rubber BracketRubber Bracket
-
21420827968 Flat Washer M6Flat Washer M6
-
22420641258 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
23420856530 Oil Pressure SwitchOil Pressure Switch
-
24270000484 Noise SensorNoise Sensor
-
25420641188 Torx Flanged Screw M8 X 3Torx Flanged Screw M8 X 3
-
26420888850 Oil RadiatorOil Radiator
-
27420250055 O-RingO-Ring
-
28420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
29420922791 Formed HoseFormed Hose
-
30420851663 Gear ClampGear Clamp
-
31420851673 Gear ClampGear Clamp
-
32420853260 Spring BracketSpring Bracket
-
33420440243 Torx Flanged Screw M10X25Torx Flanged Screw M10X25
-
34420890020 Electric Starter Ass'YElectric Starter Ass'Y
-
35420631310 O-RingO-Ring
-
36420664710 Carbon Brush SetCarbon Brush Set
-
37420834522 Starter Gear, 9 TeethStarter Gear, 9 Teeth
-
38420845600 Retaining RingRetaining Ring
-
39420440202 Flanged Torx Screw M6x 20Flanged Torx Screw M6x 20
-
40420232480 Bushing NeedleBushing Needle
-
41420889951 Bendix StarterBendix Starter
-
42420238300 Spring DiskSpring Disk
-
43420227450 Thrust WasherThrust Washer
-
44420956943 Oil Level TubeOil Level Tube
-
45420950810 O-RingO-Ring
-
46420956932 Oil Level GaugeOil Level Gauge
-
47420889772 Engine Gasket SetEngine Gasket Set
-
48293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
49293550030 Grease, Super LubeGrease, Super Lube
-
50293600054 Engine Oil 4 Strokes, 0w40, 12 X 1 LiterEngine Oil 4 Strokes, 0w40, 12 X 1 Liter
-
51293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
52293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
-
53420150315 Engine Long Block. Not ShownEngine Long Block. Not Shown
