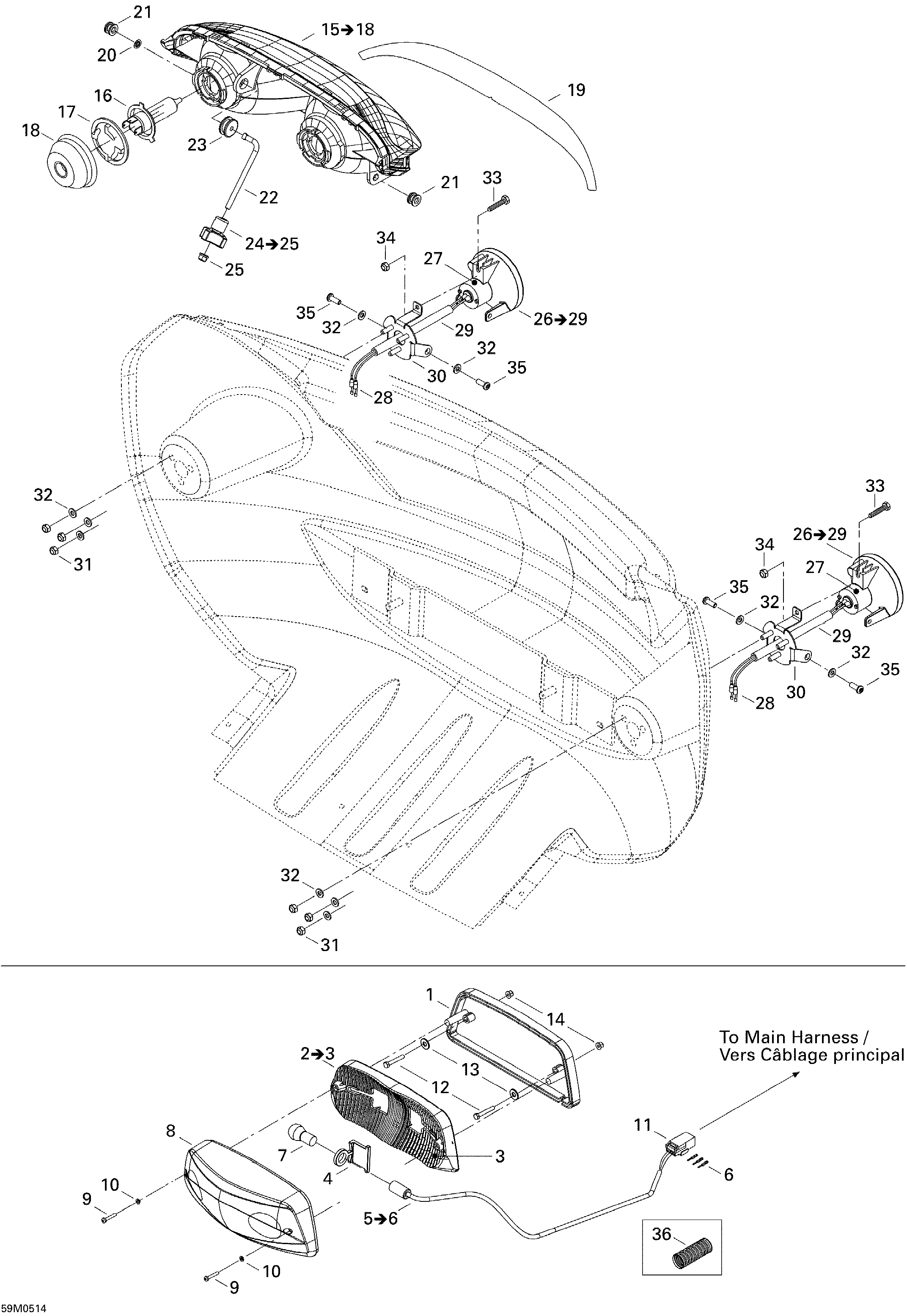

10- Vehicle Lighting System для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
1515175397 Lamp HousingLamp Housing
-
2515176128 Rear Light Reflector. Includes items 2 to 3Rear Light Reflector. Includes items 2 to 3
-
3510004442 ReflectorReflector
-
4511000431 Bulb SupportBulb Support
-
5515176284 Fitting Ass'y. Includes items 5 to 6Fitting Ass'y. Includes items 5 to 6
-
6515175232 Male TerminalMale Terminal
-
7410504100 Tail Lamp BulbTail Lamp Bulb
-
8511000315 LensLens
-
9209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
10414516400 WasherWasher
-
11515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
12207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
13517297900 Flat WasherFlat Washer
-
14233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
15515176273 Halogen Headlamp Ass'y. Includes items 15 to 18Halogen Headlamp Ass'y. Includes items 15 to 18
-
16515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
17515175910 Bulb HolderBulb Holder
-
18515175911 CoverCover
-
19516001328 Headlamp DecalHeadlamp Decal
-
20732610072 Push NutPush Nut
-
21515175760 Headlamp BushingHeadlamp Bushing
-
22515176022 Adjuster RodAdjuster Rod
-
23415100800 GrommetGrommet
-
24515175975 Handle. Includes items 24 to 25Handle. Includes items 24 to 25
-
25233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26515176032 Fog Light. Includes items 26 to 29Fog Light. Includes items 26 to 29
-
27415128844 Halogen Light BulbHalogen Light Bulb
-
28278000230 Male TerminalMale Terminal
-
29278001008 Isolating TubingIsolating Tubing
-
30515176046 Fog Light SupportFog Light Support
-
31232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
32234061410 Flat Washer M6Flat Washer M6
-
33207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
34232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
36515175442 Tubing, 6 mmTubing, 6 mm
