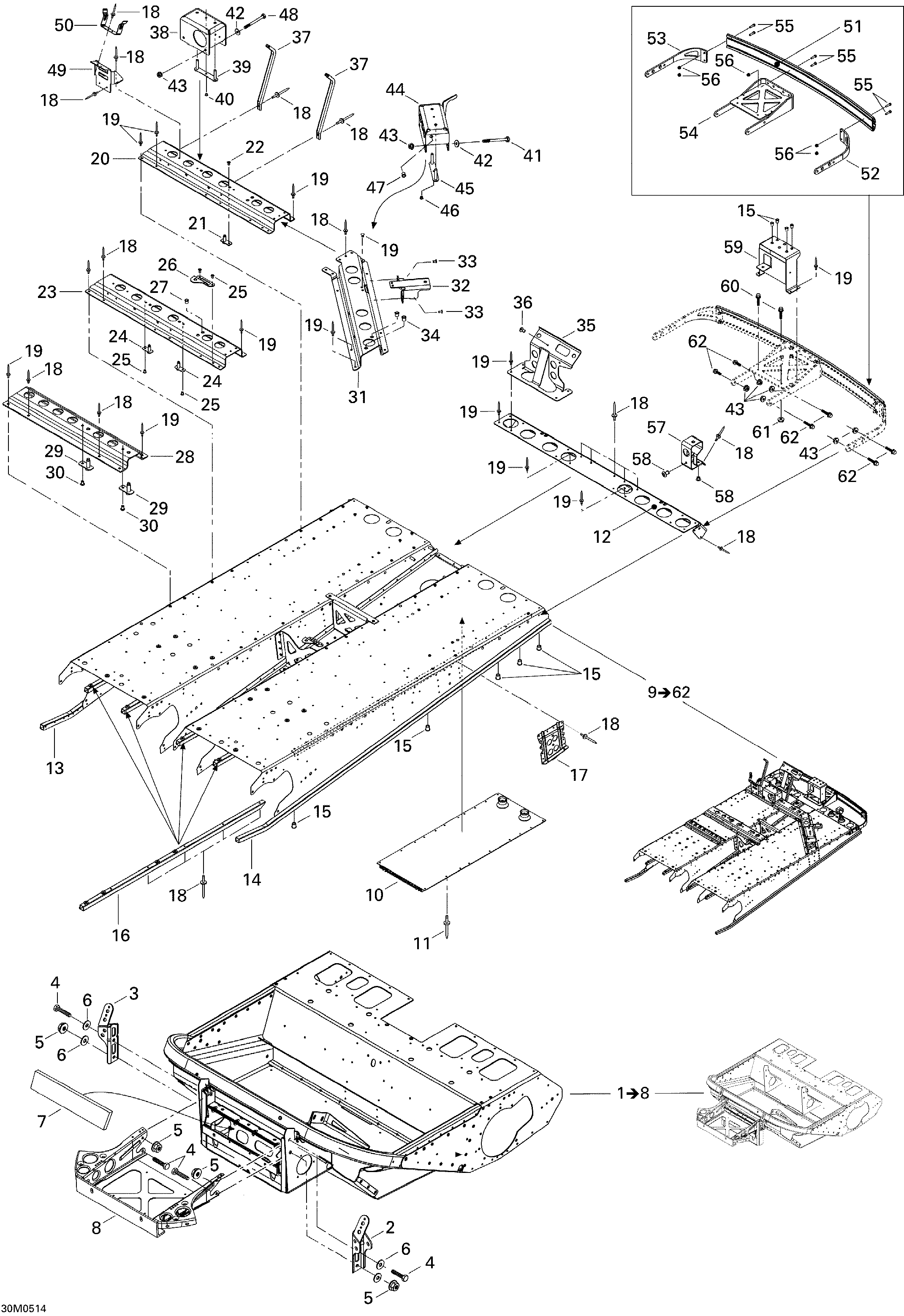

09- Frame для BRP Ski-Doo Elite 1500 2nd Edition - 2004
-
№АртикулНазвание
-
2518323072 Shock Bracket LHShock Bracket LH
-
3518323071 Shock Bracket RHShock Bracket RH
-
4207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6506151245 WasherWasher
-
8518323839 Front Bumper AttachmentFront Bumper Attachment
-
9518324666 Forming Frame Ass'y. Includes 9 to 62Forming Frame Ass'y. Includes 9 to 62
-
10518324722 Rear Radiator Ass'yRear Radiator Ass'y
-
11390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
12518322984 Rear CapRear Cap
-
13518323076 Tunnel Reinforcement RHTunnel Reinforcement RH
-
14518323077 Tunnel Reinforcement LHTunnel Reinforcement LH
-
15415107300 InsertInsert
-
16518323866 Tunnel ProtectorTunnel Protector
-
17518323109 Rear Bracket RHRear Bracket RH
-
17518323111 Rear Bracket LHRear Bracket LH
-
18390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
19390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518323116 Frame Tunnel Rear MemberFrame Tunnel Rear Member
-
21518323321 Seat BracketSeat Bracket
-
22390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
23518323116 Frame Tunnel Rear MemberFrame Tunnel Rear Member
-
24518323321 Seat BracketSeat Bracket
-
25390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
26518323680 Welded PlateWelded Plate
-
27415107300 InsertInsert
-
28518323641 Frame Tunnel Front MemberFrame Tunnel Front Member
-
29518323321 Seat BracketSeat Bracket
-
30390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
31518323562 Frame Tunnel Angle MemberFrame Tunnel Angle Member
-
32518323702 Exhaust SupportExhaust Support
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34415107300 InsertInsert
-
35518323859 Radiator Lower SupportRadiator Lower Support
-
36390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
37518323864 Radiator Upper SupportRadiator Upper Support
-
38518323287 Engine Support RHEngine Support RH
-
39518323288 Fixation PlateFixation Plate
-
40390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
42234082410 Flat Washer M8Flat Washer M8
-
43233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
44518323305 Engine Support LHEngine Support LH
-
45518323288 Fixation PlateFixation Plate
-
46390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
47415107300 InsertInsert
-
48230080044 Hex Screw M8 X 100Hex Screw M8 X 100
-
49518323662 Belt Guard Rear SupportBelt Guard Rear Support
-
50518202100 Belt Guard BracketBelt Guard Bracket
-
51518323118 Rear BumperRear Bumper
-
52518323119 Plate Bracket LHPlate Bracket LH
-
53518323496 Plate Bracket RHPlate Bracket RH
-
54518324342 Center BracketCenter Bracket
-
55207162548 Hex Screw M6 X 25Hex Screw M6 X 25
-
56233261494 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
57518323872 Muffler Support LHMuffler Support LH
-
58390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
59518324343 Muffler SupportMuffler Support
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
61233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
62207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
