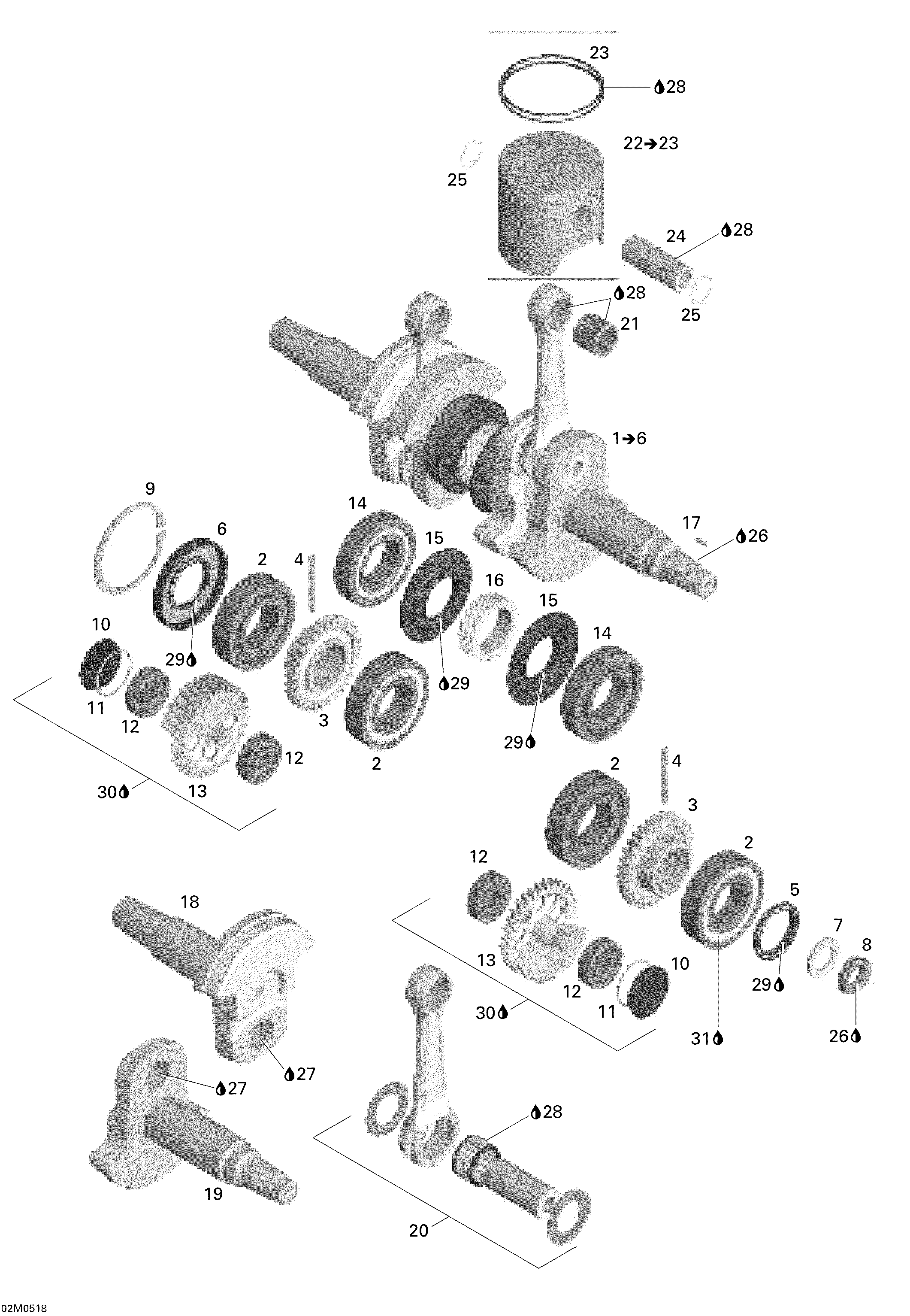

01- Crankshaft And Pistons для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1420889216 Crankshaft Ass'y. Includes 1 to 6Crankshaft Ass'y. Includes 1 to 6
-
2420832607 Ball BearingBall Bearing
-
3420834571 Gear Balance, 31 TeethGear Balance, 31 Teeth
-
4420929430 Needle PinNeedle Pin
-
5420430540 Oil SealOil Seal
-
6420931287 Oil SealOil Seal
-
7420945759 Lock Washer 22 mmLock Washer 22 mm
-
8420842234 Hex Nut M22Hex Nut M22
-
9420845700 CirclipCirclip
-
10420812175 Cover BearingCover Bearing
-
11420230035 O-ringO-ring
-
12420232292 Ball BearingBall Bearing
-
13420834581 Balance Gear, 31 TeethBalance Gear, 31 Teeth
-
14420832582 Ball BearingBall Bearing
-
15420931910 Oil SealOil Seal
-
16420834560 Central Gear, 17 TeethCentral Gear, 17 Teeth
-
17420246015 Woodruff KeyWoodruff Key
-
18420819147 Crankshaft, PTO SideCrankshaft, PTO Side
-
19420819177 Crankshaft, Mag SideCrankshaft, Mag Side
-
20420889214 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
20420889213 Rod Repair Kit, Mag SideRod Repair Kit, Mag Side
-
21420832680 Needle BearingNeedle Bearing
-
22420889231 Piston Ass'y With Rings, 87.86 mm, Group A. Includes 22 to 23Piston Ass'y With Rings, 87.86 mm, Group A. Includes 22 to 23
-
22420889232 Piston Ass'y With Rings, 87.88 mm, Group B. Includes 22 to 23Piston Ass'y With Rings, 87.88 mm, Group B. Includes 22 to 23
-
23420815370 Semi-trapez RingSemi-trapez Ring
-
24420916440 Gudgeon PinGudgeon Pin
-
25420845611 CirclipCirclip
-
26293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
27413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
29420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
30420898351 Isoflex Grease, 500 GIsoflex Grease, 500 G
-
31293550021 Isoflex Grease, 50 G, Topas NB52Isoflex Grease, 50 G, Topas NB52
