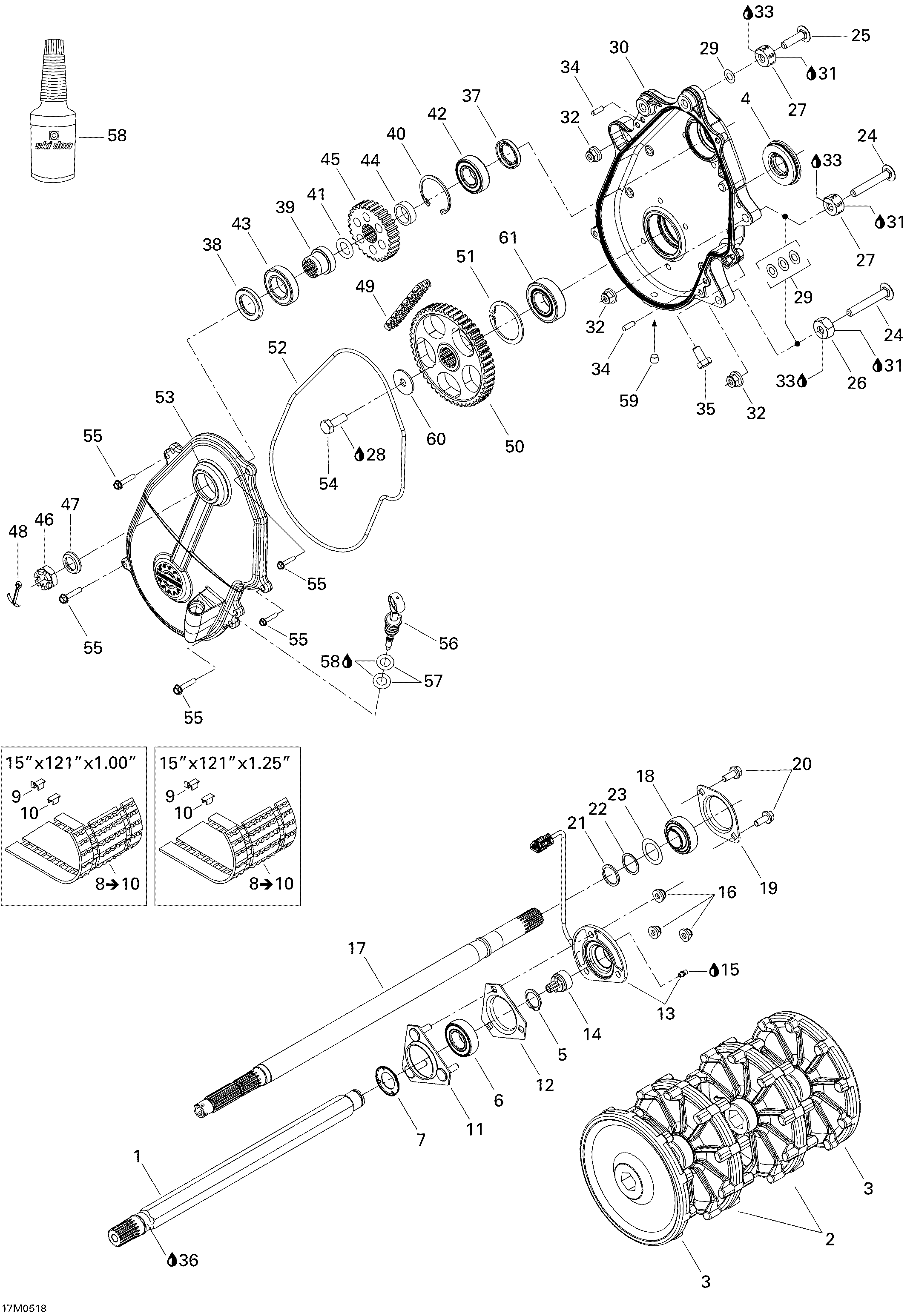

05- Drive System для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1504152424 Drive AxleDrive Axle
-
2504152198 Sprocket, 10 TeethSprocket, 10 Teeth
-
3504152199 Half Sprocket, 10 TeethHalf Sprocket, 10 Teeth
-
4504151918 Oil Seal Ass'yOil Seal Ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8504152446 Track Ass'y, 15''x121''x1''. Includes 8 to 10 / Track 15''x121''x1''Track Ass'y, 15''x121''x1''. Includes 8 to 10 / Track 15''x121''x1''
-
8504152483 Track Ass'y, 15''x121''x1.25''. Includes 8 to 10 / Track 15''x121''x1.25''Track Ass'y, 15''x121''x1.25''. Includes 8 to 10 / Track 15''x121''x1.25''
-
9504152410 GuideGuide
-
10500003300 CleatCleat
-
11504151860 Bearing HousingBearing Housing
-
12501025000 FlangeFlange
-
13504152409 SensorSensor
-
14504152040 Magnetic AdaptorMagnetic Adaptor
-
15219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
16233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
17504152432 Counter ShaftCounter Shaft
-
18504152026 Ball BearingBall Bearing
-
19501026900 FlangeFlange
-
20207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
21417300252 SpacerSpacer
-
22417300265 SpacerSpacer
-
23504112000 ShimShim
-
24250000164 Carriage Bolt M10Carriage Bolt M10
-
25250000165 Carriage Bolt M10Carriage Bolt M10
-
26504083800 SpacerSpacer
-
27504152524 SpacerSpacer
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29504073700 WasherWasher
-
30504152308 Chain CaseChain Case
-
31293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
32233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
33293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
34732620001 Cylinder PinCylinder Pin
-
35207302044 Hex Screw M10 X 20, Scotch GripHex Screw M10 X 20, Scotch Grip
-
36219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
37504152544 Oil SealOil Seal
-
38504152545 Oil SealOil Seal
-
39504152400 SpacerSpacer
-
40371901700 Circlip, InteriorCirclip, Interior
-
41293300109 O-ringO-ring
-
42504152006 Ball BearingBall Bearing
-
43504152418 Ball BearingBall Bearing
-
44504152398 ShimShim
-
45504152442 Sprocket, 29 TeethSprocket, 29 Teeth
-
46250100079 Hex Castle Nut 20 X 1.5Hex Castle Nut 20 X 1.5
-
47504152523 CapCap
-
48371006300 Pin CotterPin Cotter
-
49504152415 Chain, 82 LinksChain, 82 Links
-
50504152412 Sprocket, 49 TeethSprocket, 49 Teeth
-
51415064300 Circlip, InteriorCirclip, Interior
-
52504152299 O-ringO-ring
-
53504152416 CoverCover
-
54207103044 Hex Screw M10 X 30Hex Screw M10 X 30
-
55210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
56504152322 Filler Cap Assy.Filler Cap Assy.
-
57414969400 O-RingO-Ring
-
58413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
59504151921 Plug 1/8''-27Plug 1/8''-27
-
60506150000 Washer 10 mmWasher 10 mm
-
61504152005 Ball BearingBall Bearing
