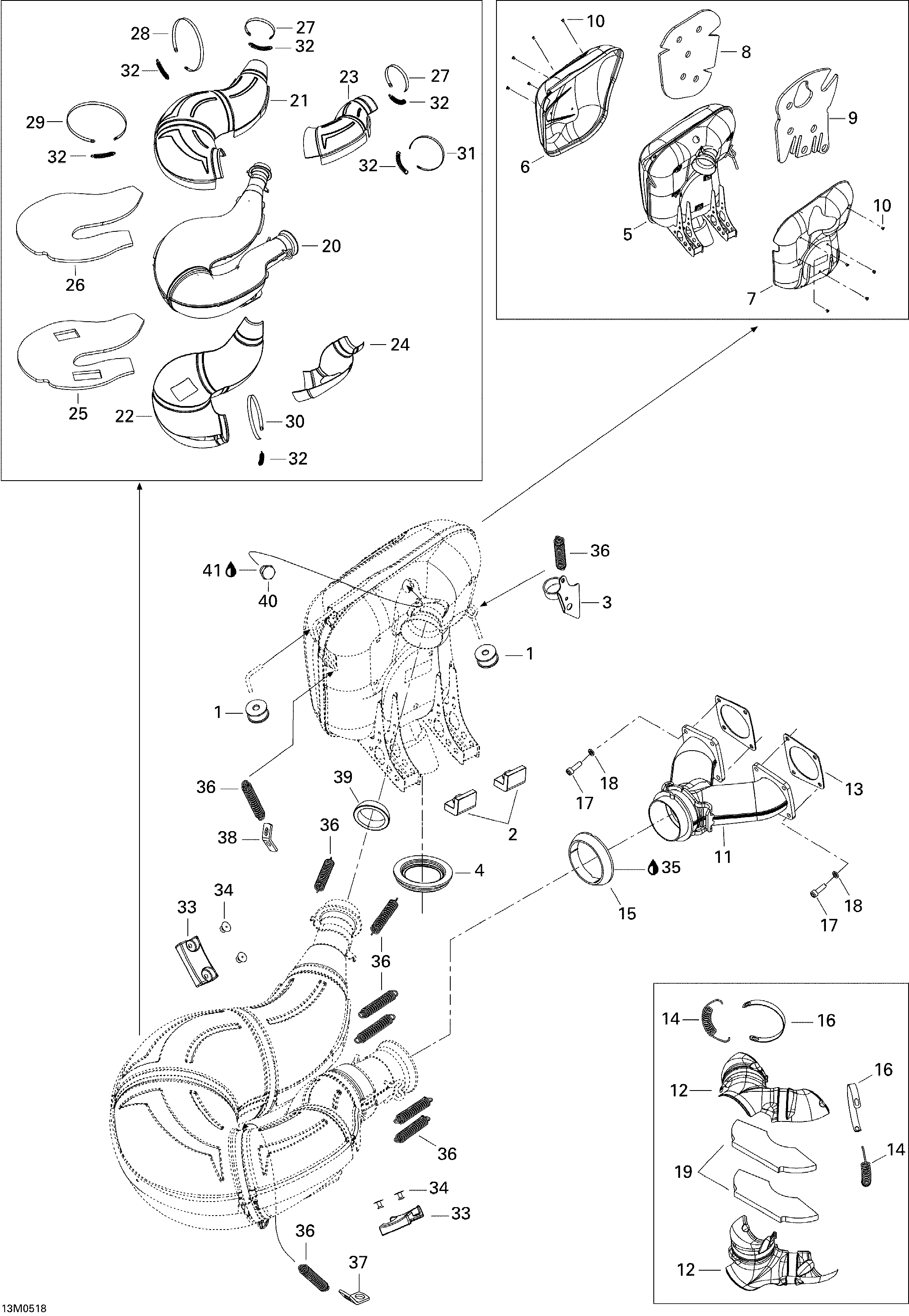

01- Exhaust System для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1707600012 Anti-vibration RubberAnti-vibration Rubber
-
2514053373 Lower StopperLower Stopper
-
3514053810 Muffler BracketMuffler Bracket
-
4514053935 Exhaust GrommetExhaust Grommet
-
5514054172 Muffler Ass'yMuffler Ass'y
-
6514053777 RH Heat DeflectorRH Heat Deflector
-
7514053778 LH Heat DeflectorLH Heat Deflector
-
8514053904 RH Insulating WoolRH Insulating Wool
-
9514053905 LH Insulating WoolLH Insulating Wool
-
10390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
11420673150 Exhaust ManifoldExhaust Manifold
-
12514054033 Exhaust Manifold EnvelopeExhaust Manifold Envelope
-
13420630820 GasketGasket
-
14514053643 SpringSpring
-
15514053487 Exhaust GasketExhaust Gasket
-
16514053493 Retaining StrapRetaining Strap
-
17514054047 Socket Screw M6 X 20 (scotch Grip)Socket Screw M6 X 20 (scotch Grip)
-
18514053953 WasherWasher
-
19514054034 Insulating WoolInsulating Wool
-
20514053764 Tuned PipeTuned Pipe
-
21514053772 Upper Rear Half EnvelopeUpper Rear Half Envelope
-
22514053773 Lower Rear Half EnvelopeLower Rear Half Envelope
-
23514053770 Upper Front Half EnvelopeUpper Front Half Envelope
-
24514053771 Lower Front Half EnvelopeLower Front Half Envelope
-
25514053910 Lower Insulating WoolLower Insulating Wool
-
26514054035 Upper Insulating WoolUpper Insulating Wool
-
27514053498 Retaining StrapRetaining Strap
-
28514053975 Retaining StrapRetaining Strap
-
29514053976 Retaining StrapRetaining Strap
-
30514053605 Retaining StrapRetaining Strap
-
31514053501 Retaining StrapRetaining Strap
-
32514053643 SpringSpring
-
33514053352 BumperBumper
-
34293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
36415107100 SpringSpring
-
37514054087 Spring BracketSpring Bracket
-
38514053026 Spring BracketSpring Bracket
-
39514053677 Exhaust GasketExhaust Gasket
-
40250100074 Hexagonal Head Pipe Plug M14Hexagonal Head Pipe Plug M14
-
41293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
