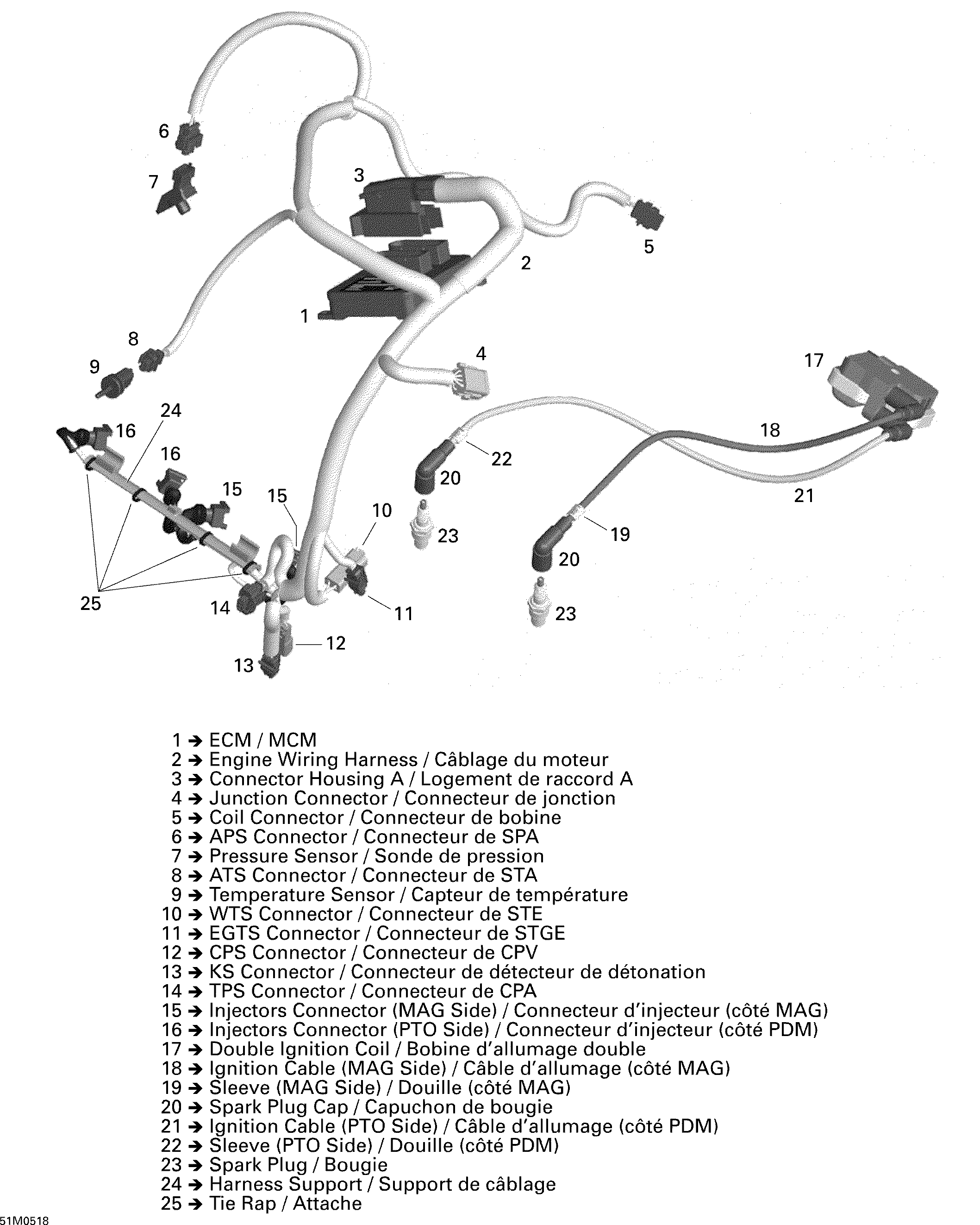

10- Engine Harness And Electronic Module для BRP Ski-Doo Mach Z 1000 SDI - 2005
![](/wa-data/public/shop/sheme/bombardier/ski-doo/93d07e8d-6535-45ec-84e3-5dbfa3a11db7.png)
-
№АртикулНазвание
-
1420664611 Ecm, Engine Control ModuleEcm, Engine Control Module
-
2420664550 Engine Wiring HarnessEngine Wiring Harness
-
7420274055 Pressure SensorPressure Sensor
-
9420966970 Temperature SensorTemperature Sensor
-
17420266070 Double Ignition CoilDouble Ignition Coil
-
18420665335 Ignition Cable, Mag SideIgnition Cable, Mag Side
-
19420660632 Sleeve, Mag SideSleeve, Mag Side
-
20278000237 Spark Plug CapSpark Plug Cap
-
21420665330 Ignition Cable, PTO SideIgnition Cable, PTO Side
-
22420660630 Sleeve, PTO SideSleeve, PTO Side
-
23415128524 Spark Plug (Br9Ecs)Spark Plug (Br9Ecs)
-
24420960880 Harness SupportHarness Support
