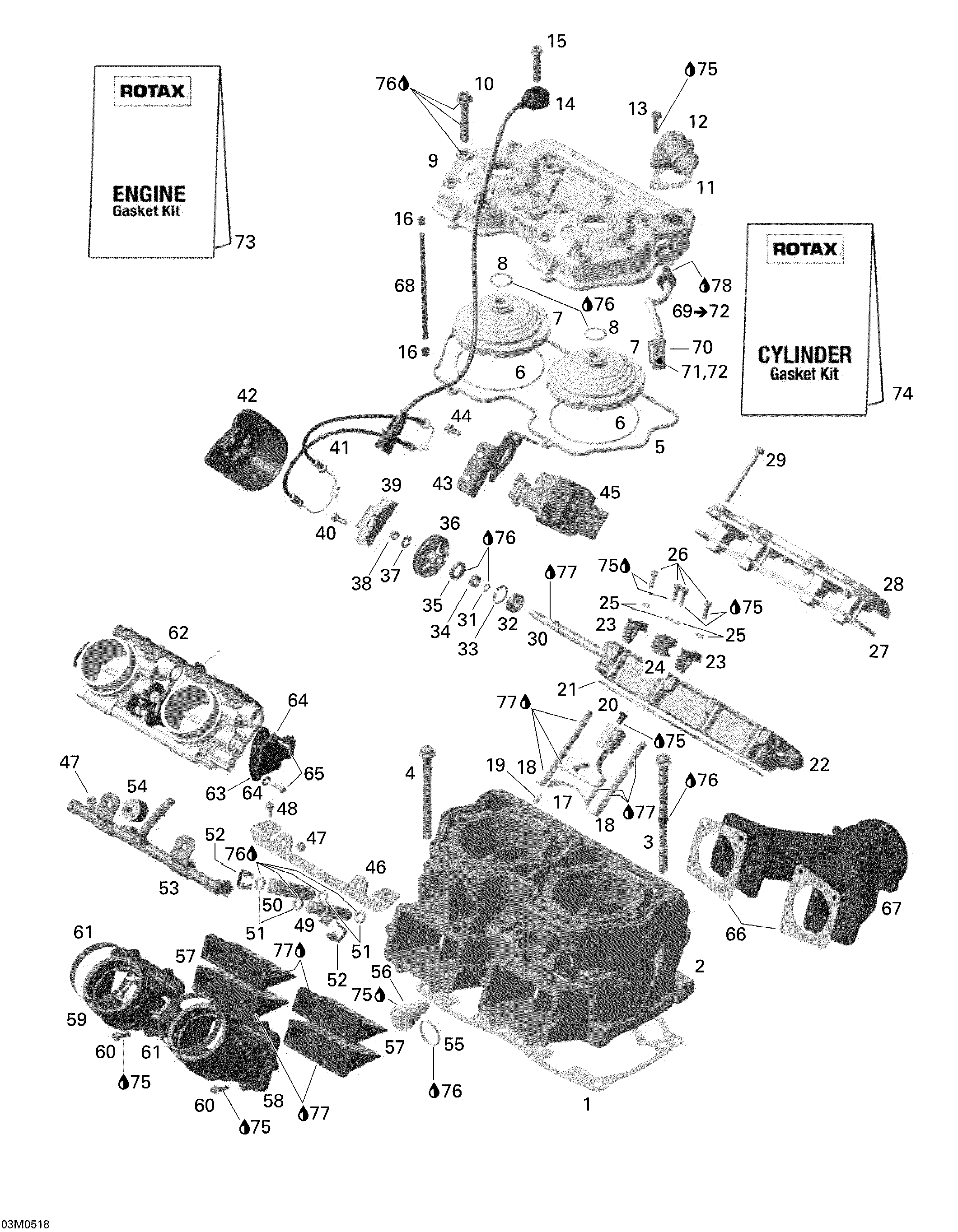

01- Cylinder and Cylinder Head для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1420630460 Gasket 1.0 mmGasket 1.0 mm
-
1420630461 Gasket 1.1 mmGasket 1.1 mm
-
1420630462 Gasket 1.2 mmGasket 1.2 mm
-
1420630463 Gasket 1.3 mmGasket 1.3 mm
-
2420890960 CylinderCylinder
-
3420641762 Hex Flanged Screw M10 X 150Hex Flanged Screw M10 X 150
-
4420641772 Hex Flanged Screw M10 X 115Hex Flanged Screw M10 X 115
-
5420630450 GasketGasket
-
6420630630 O-ringO-ring
-
7420613730 Combustion ChamberCombustion Chamber
-
8420430370 O-RingO-Ring
-
9420613720 Cylinder Head CoverCylinder Head Cover
-
10420940142 Torx Flange Screw M10 X 55Torx Flange Screw M10 X 55
-
11420850338 GasketGasket
-
12420822080 Bent Outlet SocketBent Outlet Socket
-
13420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
14270000484 Noise SensorNoise Sensor
-
15420440862 Torx Flange Screw M8 X 35Torx Flange Screw M8 X 35
-
16420960890 ClipClip
-
17420854730 Main Exhaust ValveMain Exhaust Valve
-
18420854740 Side Exhaust ValveSide Exhaust Valve
-
19420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
20420960390 StopperStopper
-
21420630690 GasketGasket
-
22420854761 Valve HousingValve Housing
-
23420834655 Drive GearDrive Gear
-
24420834650 Drive GearDrive Gear
-
25420939440 Spring WasherSpring Washer
-
26420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
27420631530 GasketGasket
-
28420854770 Valve CoverValve Cover
-
29420440602 Hex Flanged Screw M6 X 65Hex Flanged Screw M6 X 65
-
30420837700 Drive ShaftDrive Shaft
-
31420230990 O-ringO-ring
-
32420832830 Ball BearingBall Bearing
-
33420245480 Retaining RingRetaining Ring
-
34420947360 Distance SleeveDistance Sleeve
-
35420430100 Oil SealOil Seal
-
36420980710 Cable ActuatorCable Actuator
-
37420939450 Spring WasherSpring Washer
-
38232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
39420853052 Cable SupportCable Support
-
40420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
41420997021 Rave CableRave Cable
-
42420812630 Rave CoverRave Cover
-
43420851920 PlatePlate
-
44420841580 Hex Screw M6 X 8Hex Screw M6 X 8
-
45420889430 E-rave ActuatorE-rave Actuator
-
46420851893 Retaining PlateRetaining Plate
-
47232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
48420440142 Torx Flange Screw M6 X 12Torx Flange Screw M6 X 12
-
49420874485 Fuel InjectorsFuel Injectors
-
50420874480 Fuel InjectorFuel Injector
-
51420631220 O-RingO-Ring
-
52420851800 ClipClip
-
53420874470 Fuel Rail Ass'yFuel Rail Ass'y
-
54420960065 StopperStopper
-
55420430060 O-ringO-ring
-
56420231130 Deco InsertDeco Insert
-
57420924790 Reed Valve Ass'yReed Valve Ass'y
-
58420667065 Carburator Socket, MagCarburator Socket, Mag
-
59420667060 Carburator Socket, PTOCarburator Socket, PTO
-
60420841555 Tapping Screw M5 X 20Tapping Screw M5 X 20
-
61420851810 ClampClamp
-
62420889192 Throttle BodyThrottle Body
-
63270000251 Position SensorPosition Sensor
-
64234041600 Flat Washer 4 mmFlat Washer 4 mm
-
65208641660 Screw Phillips M4 X 16Screw Phillips M4 X 16
-
66420630820 GasketGasket
-
67420673150 Exhaust ManifoldExhaust Manifold
-
68420460010 TubeTube
-
69515176043 Temperature Sensor. Includes 69 to 72Temperature Sensor. Includes 69 to 72
-
70278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
71278000632 Female TerminalFemale Terminal
-
72515175677 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
73420891130 Engine Gasket SetEngine Gasket Set
-
74420891135 Cylinder Gasket SetCylinder Gasket Set
-
75293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
76413707000 Molykote 111, 150 GMolykote 111, 150 G
-
78293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
