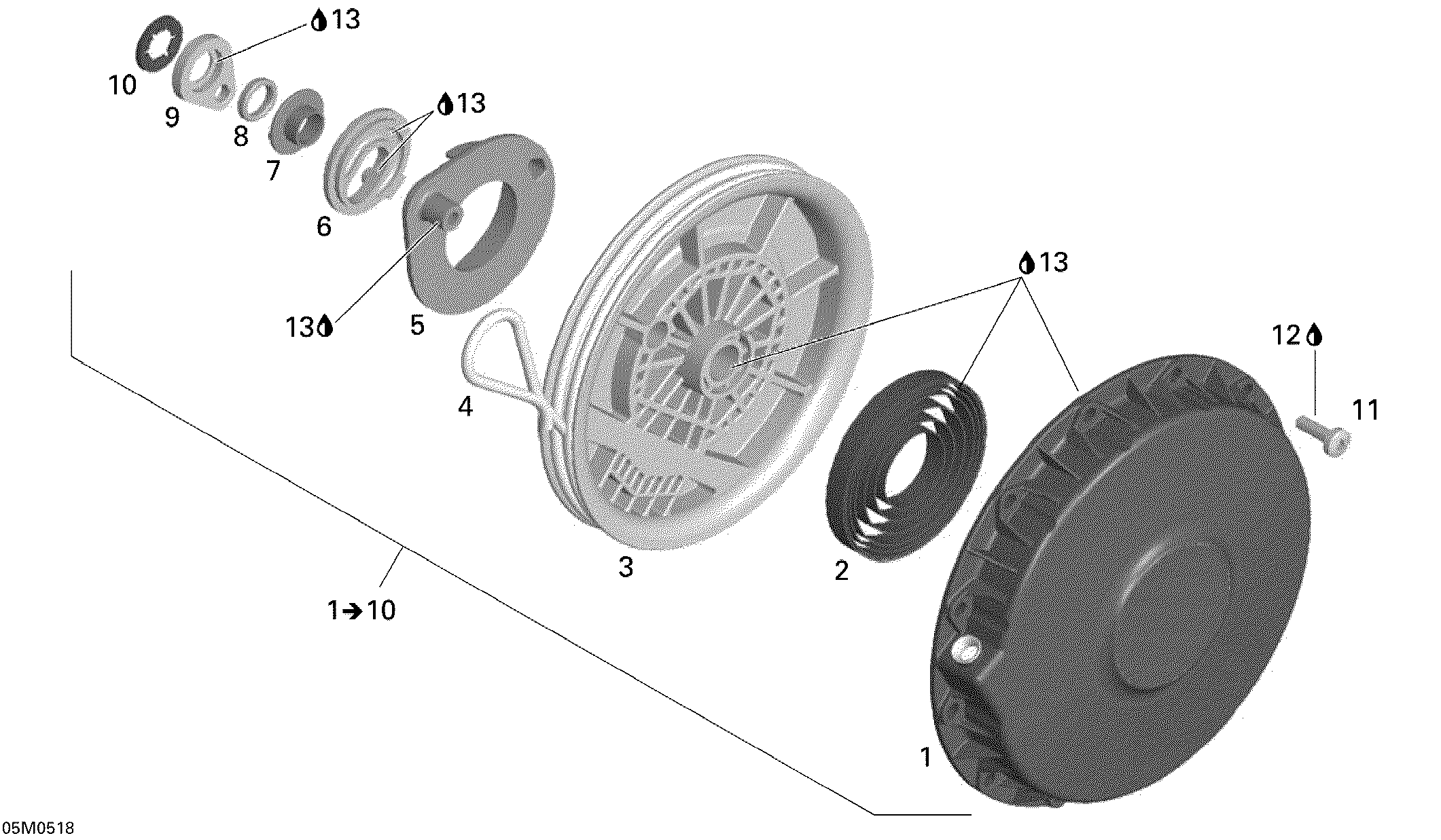

04- Rewind Starter для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1420889767 Rewing Starter Ass'y. Includes 1 to 10Rewing Starter Ass'y. Includes 1 to 10
-
1420811403 Starter HousingStarter Housing
-
2420939115 Rewind SpringRewind Spring
-
3420852288 Rope SheaveRope Sheave
-
4412500200 Starter RopeStarter Rope
-
5420852610 PawlPawl
-
6420852304 Pawl LockPawl Lock
-
7420847925 Stage SleeveStage Sleeve
-
8420250407 O-ringO-ring
-
9420852520 Lock RingLock Ring
-
10420845560 Locking ElementLocking Element
-
11420941256 Hex Collar ScrewHex Collar Screw
-
12293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
13420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
