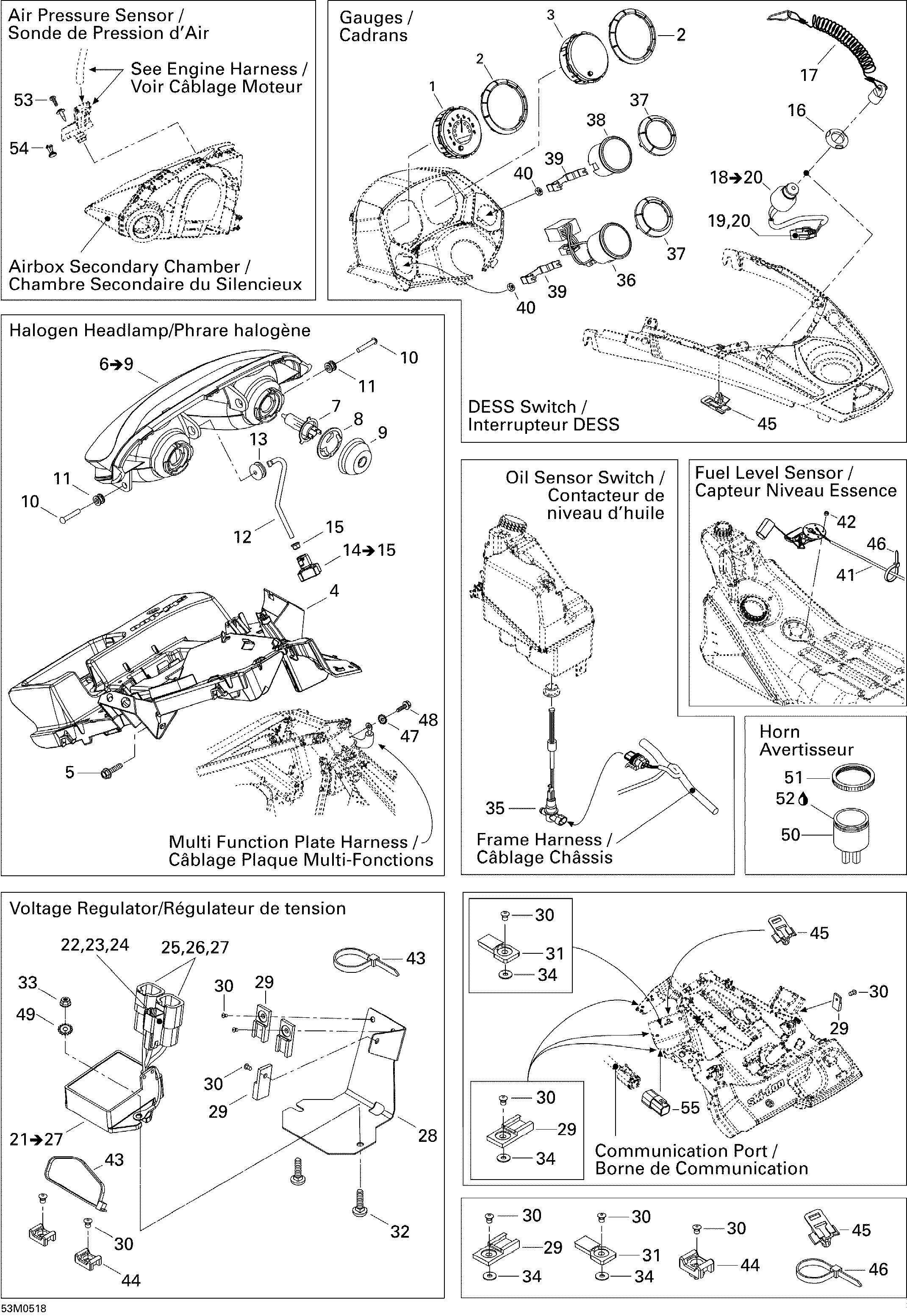

10- Electrical Accessories для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1515176244 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515176275 TachometerTachometer
-
4515176104 Multi Function PlateMulti Function Plate
-
5210261680 Hex Forming Screw M6 X 16Hex Forming Screw M6 X 16
-
6515176273 Halogen Headlamp Ass'y. Includes 6 To 9Halogen Headlamp Ass'y. Includes 6 To 9
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515175910 Bulb HolderBulb Holder
-
9515175911 CoverCover
-
11515175760 Headlamp BushingHeadlamp Bushing
-
12515175521 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
14515175975 Handle. Includes 14 To 15Handle. Includes 14 To 15
-
15233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16278000508 NutNut
-
17515166900 Dess CapDess Cap
-
18515175797 Dess Switch. Includes 18 To 20Dess Switch. Includes 18 To 20
-
19515175232 Male TerminalMale Terminal
-
20515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
21515176243 Voltage Regulator. Includes 21 To 27Voltage Regulator. Includes 21 To 27
-
22409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
23278000631 Male TerminalMale Terminal
-
24409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
25278000635 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
26515175568 Male TerminalMale Terminal
-
27278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
28515176167 Housing SupportHousing Support
-
29515175917 ClipClip
-
30293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
31515176209 Deutsch Gray ClipDeutsch Gray Clip
-
32207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
33233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34517225900 Flat WasherFlat Washer
-
35515176016 Oil Level SensorOil Level Sensor
-
36515176214 Temperature GaugeTemperature Gauge
-
37515176216 Ring GaugeRing Gauge
-
38515176215 Fuel GaugeFuel Gauge
-
39515176235 Case HolderCase Holder
-
40515176236 Lock NutLock Nut
-
41515176213 Fuel Level SensorFuel Level Sensor
-
42232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
43293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
44293750031 Tie Rap MountTie Rap Mount
-
45515175283 Housing SupportHousing Support
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
46515175220 Tie RapTie Rap
-
46293750009 Tie Rap 160 mmTie Rap 160 mm
-
47394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
48210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
49250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
50515176035 HornHorn
-
51414805101 Plastic NutPlastic Nut
-
52296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
53414745900 Phillips ScrewPhillips Screw
-
54508000465 CapCap
-
55515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
