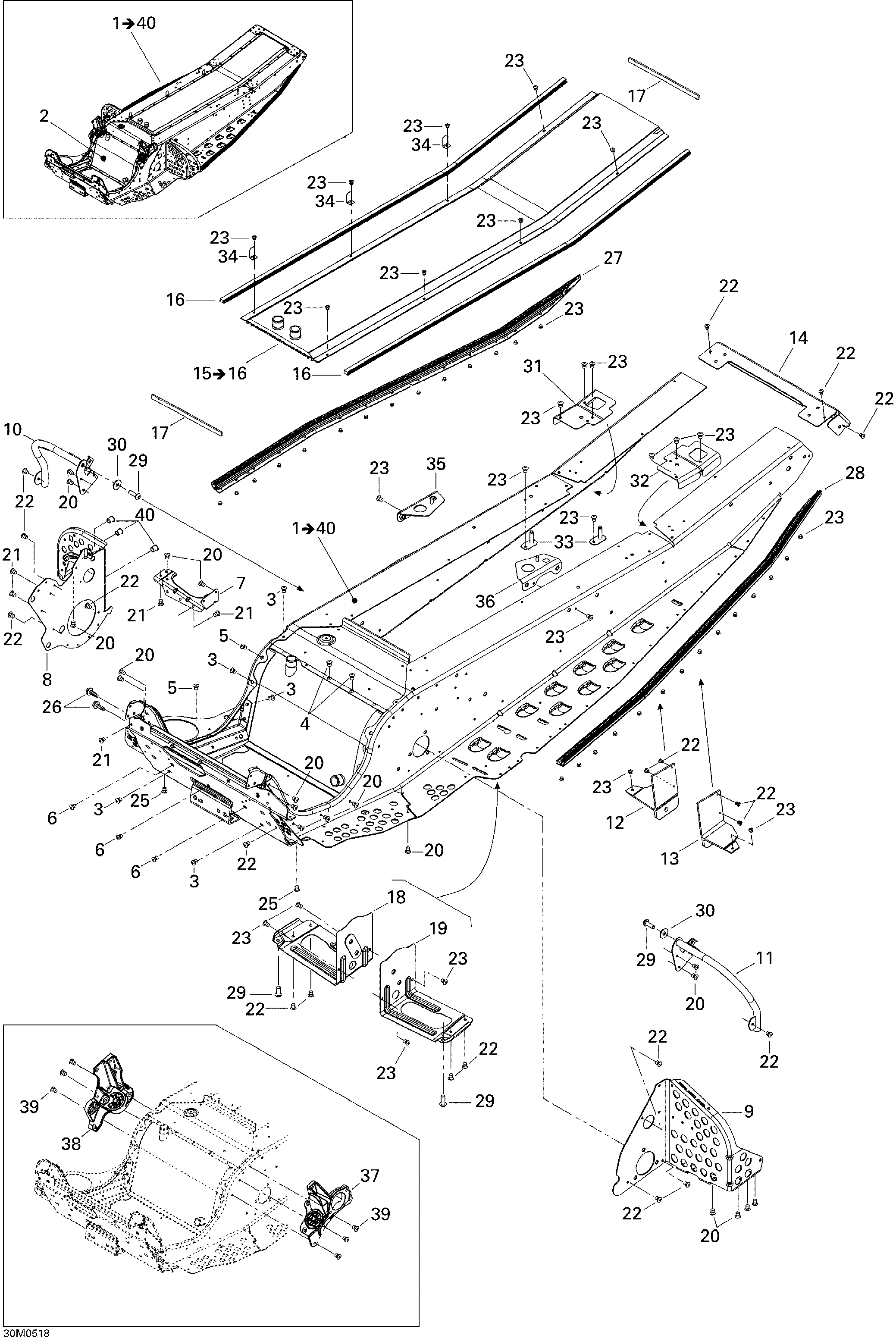

09- Frame для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1415128930 Frame Ass'y. Includes 1 to 40Frame Ass'y. Includes 1 to 40
-
3390909200 Avex RivetAvex Rivet
-
4390909100 Avex RivetAvex Rivet
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
12518323572 RH Slide BracketRH Slide Bracket
-
13518323573 LH Slide BracketLH Slide Bracket
-
14518324409 Rear CapRear Cap
-
15518324242 Rear Radiator. Includes 15 to 16Rear Radiator. Includes 15 to 16
-
16415012300 Radiator ProtectorRadiator Protector
-
17293200097 GasketGasket
-
18518323952 RH Footrest ReinforcementRH Footrest Reinforcement
-
19518323954 LH Footrest ReinforcementLH Footrest Reinforcement
-
20390909200 Avex RivetAvex Rivet
-
21390909100 Avex RivetAvex Rivet
-
22390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
25390910300 Rivet HenrobRivet Henrob
-
26207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
27518324298 RH RollerRH Roller
-
28518324299 LH RollerLH Roller
-
29205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
30234082410 Flat Washer M8Flat Washer M8
-
31518324431 RH Frame ReinforcementRH Frame Reinforcement
-
32518324432 LH Frame ReinforcementLH Frame Reinforcement
-
33518322791 Tank BracketTank Bracket
-
35518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
36518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
37518323715 LH Engine SupportLH Engine Support
-
38518323716 RH Engine SupportRH Engine Support
-
39293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
40415107300 InsertInsert
