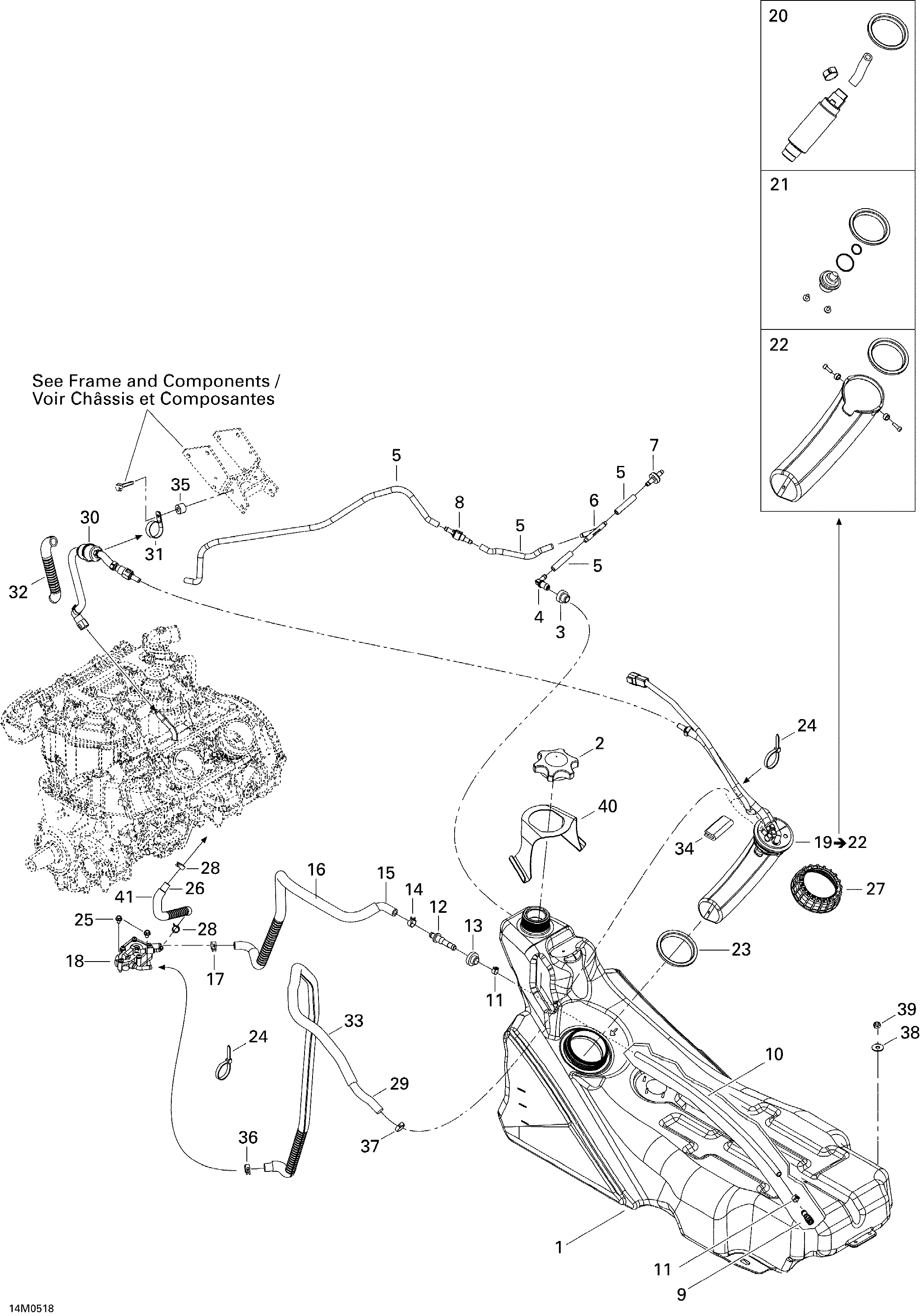

02- Fuel System для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1513033119 Fuel TankFuel Tank
-
2513033024 Fuel Tank CapFuel Tank Cap
-
3513032908 GrommetGrommet
-
4414580700 Elbow Male ConnectorElbow Male Connector
-
5415080200 LineLine
-
6293710059 Y-FittingY-Fitting
-
7275500398 Check ValveCheck Valve
-
8275500505 Check ValveCheck Valve
-
9414872100 Fuel FilterFuel Filter
-
10513033070 HoseHose
-
11513033010 Norma Spring ClampNorma Spring Clamp
-
12414872700 Male ConnectorMale Connector
-
13570273900 GrommetGrommet
-
14513032979 Spring ClampSpring Clamp
-
15513033121 Formed HoseFormed Hose
-
16415080000 Tubing, 16 mmTubing, 16 mm
-
17513032979 Spring ClampSpring Clamp
-
18403901816 Fuel PumpFuel Pump
-
19513033120 Fuel Pump Module. Includes 19 to 22Fuel Pump Module. Includes 19 to 22
-
20861302700 Pump KitPump Kit
-
21861302100 Regulator KitRegulator Kit
-
22861302800 Reservoir KitReservoir Kit
-
23513033039 SealSeal
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
25210261080 Hex Forming Screw M6 X 10Hex Forming Screw M6 X 10
-
26415079800 Rubber HoseRubber Hose
-
27513033040 Nut (Fuel Pump Module)Nut (Fuel Pump Module)
-
28414415200 Spring ClampSpring Clamp
-
29513033022 HoseHose
-
30513033133 Fuel Filter Ass'yFuel Filter Ass'y
-
31513033047 Open ClampOpen Clamp
-
32415080000 Tubing, 16 mmTubing, 16 mm
-
33415080000 Tubing, 16 mmTubing, 16 mm
-
34271000110 Protector TrimProtector Trim
-
35503189448 SpacerSpacer
-
36513033029 Spring ClampSpring Clamp
-
37293650047 Oetiker ClampOetiker Clamp
-
38234082410 Flat Washer M8Flat Washer M8
-
39232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
40513033066 SupportSupport
-
41415079900 Tubing, 10 mmTubing, 10 mm
