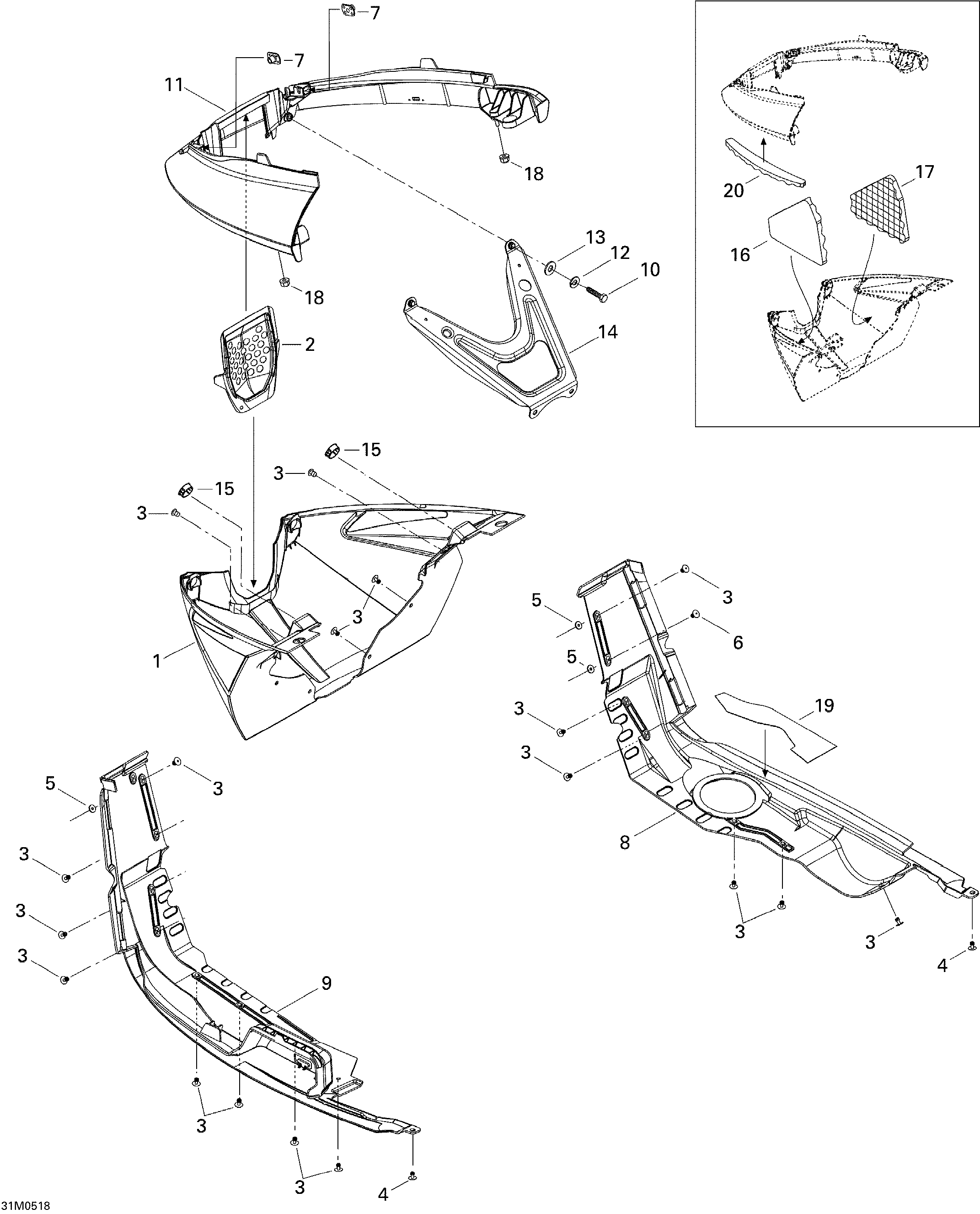

09- Bottom Pan для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1502006727 Front Bottom Pan, Slate GreyFront Bottom Pan, Slate Grey
-
2502006746 Bottom Pan Grill, BlackBottom Pan Grill, Black
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
5517124300 WasherWasher
-
6293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
7293100003 Nut M6Nut M6
-
8502006725 RH Bottom Pan, BlackRH Bottom Pan, Black
-
9502006726 LH Bottom Pan, BlackLH Bottom Pan, Black
-
10207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
11502006724 Bumper, BlackBumper, Black
-
12234161471 Lock Washer 6 mmLock Washer 6 mm
-
13224061121 Flat WasherFlat Washer
-
14502006772 SupportSupport
-
15414916600 Nylon CapNylon Cap
-
16502006765 LH Bottom Pan FoamLH Bottom Pan Foam
-
17502006767 RH Bottom Pan FoamRH Bottom Pan Foam
-
18233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19502006795 Reflective SheetReflective Sheet
-
20502006800 Bumper FoamBumper Foam
