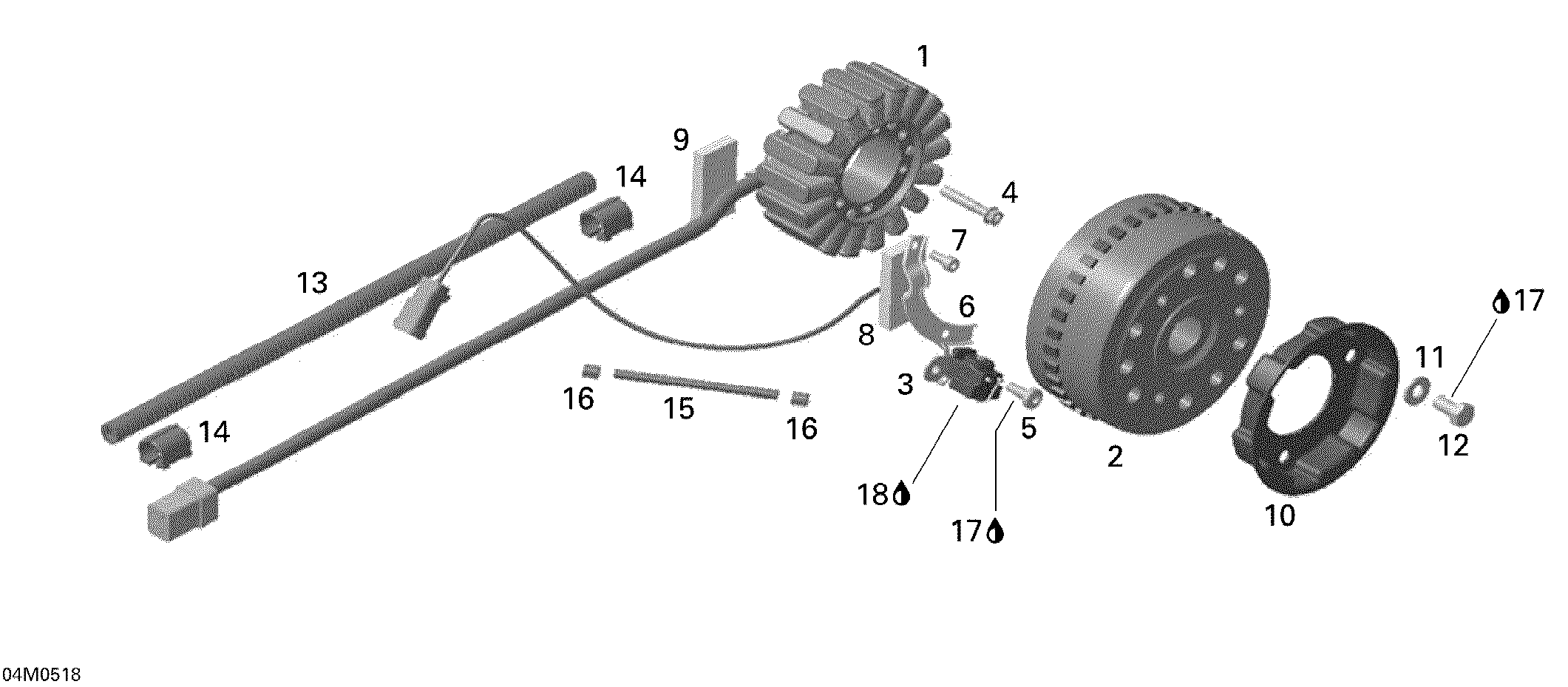

03- Magneto для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1420866065 Stator PlateStator Plate
-
2420866042 FlywheelFlywheel
-
3410922951 Pick-Up Ass'YPick-Up Ass'Y
-
4420440272 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
5420640321 Taptite Screw M6 X 16Taptite Screw M6 X 16
-
6420851870 Retaining PlateRetaining Plate
-
7420640541 Socket Head Screw M5 X 12Socket Head Screw M5 X 12
-
8420960925 Rubber StopperRubber Stopper
-
9420960920 Rubber StopperRubber Stopper
-
10420852532 Starting PulleyStarting Pulley
-
11420827405 Flat WasherFlat Washer
-
12420940161 Hex Screw M8 X 12Hex Screw M8 X 12
-
13420660912 TubeTube
-
14420960892 ClipClip
-
15420460040 TubeTube
-
16420960894 ClipClip
-
17293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
18293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
