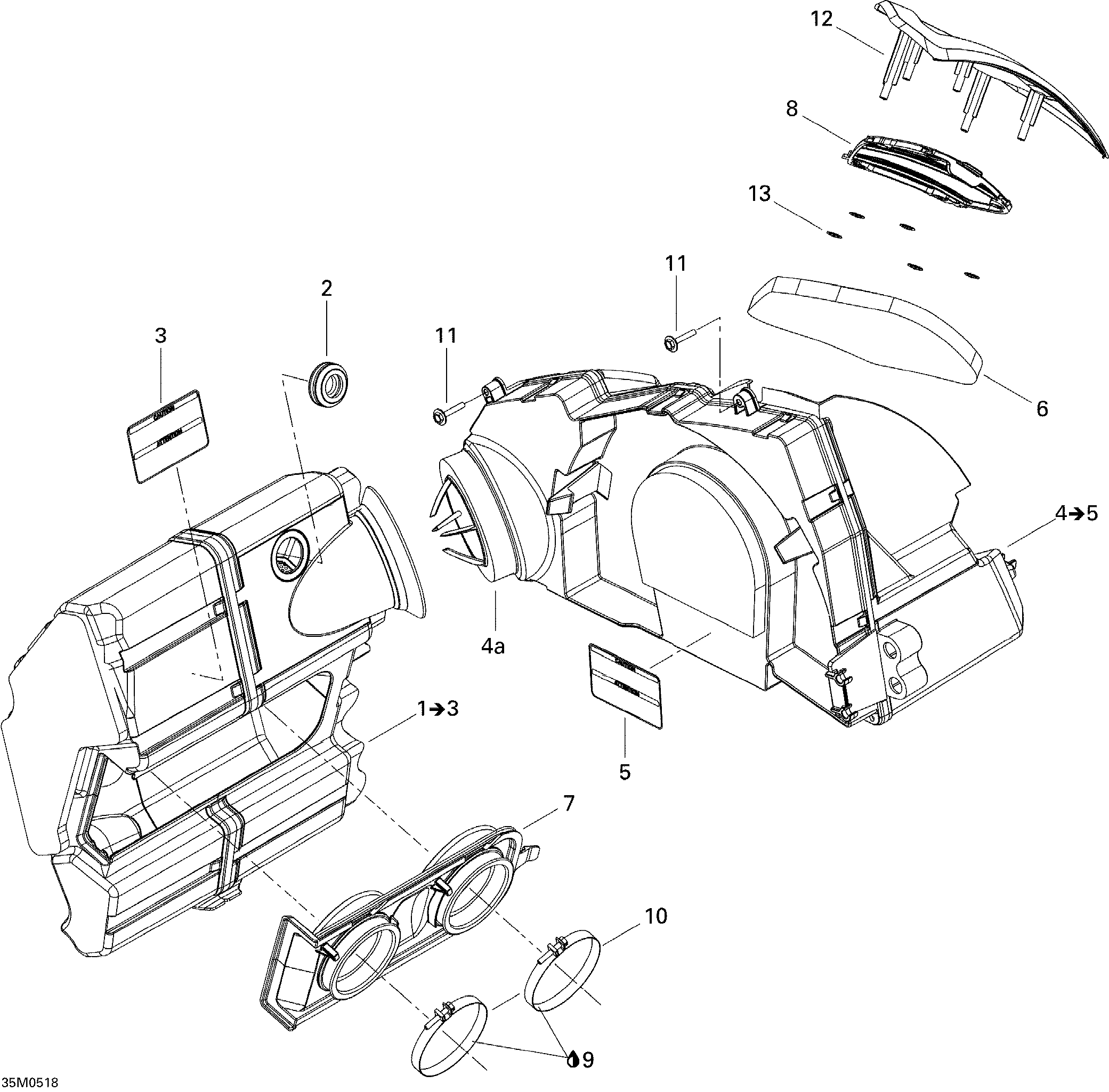

02- Air Intake System для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1508000354 Primary Chamber Ass'y. Includes 1 to 3Primary Chamber Ass'y. Includes 1 to 3
-
2570065500 GrommetGrommet
-
3516002715 Label (air Intake Installation)Label (air Intake Installation)
-
4508000359 Secondary Chamber Ass'y. Includes 4 to 5Secondary Chamber Ass'y. Includes 4 to 5
-
4a508000520 FoamFoam
-
5516002715 Label (air Intake Installation)Label (air Intake Installation)
-
6508000367 Air FilterAir Filter
-
7508000451 Adaptor Plate Ass'yAdaptor Plate Ass'y
-
8508000433 Intake FilterIntake Filter
-
9413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
10508000346 Gemi ClampGemi Clamp
-
11250000101 Screw M4 X 25Screw M4 X 25
-
12508000461 DeflectorDeflector
-
13732610072 Push NutPush Nut
