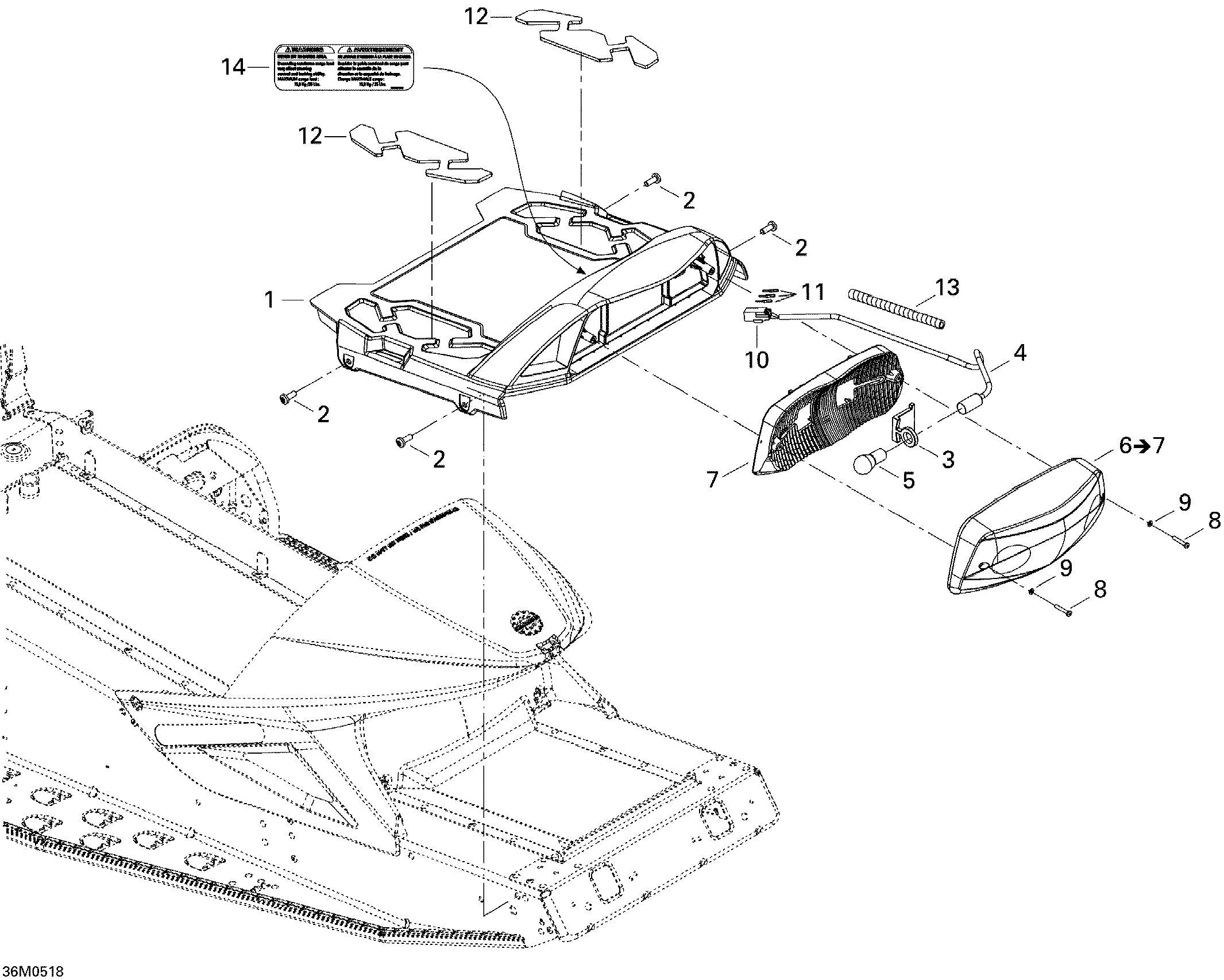

09- Luggage Rack для BRP Ski-Doo Mach Z 1000 SDI - 2005
-
№АртикулНазвание
-
1511000242 Luggage RackLuggage Rack
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3511000431 Bulb SupportBulb Support
-
4511000428 Bulb SocketBulb Socket
-
5410504100 Tail Lamp BulbTail Lamp Bulb
-
6861509300 Lens And Reflector Kit. Includes 6 To 7Lens And Reflector Kit. Includes 6 To 7
-
7510004442 ReflectorReflector
-
8209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
9414516400 WasherWasher
-
10515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
11515175232 Male TerminalMale Terminal
-
12520000481 Rear CarpetRear Carpet
-
13515175442 Tubing, 6 mmTubing, 6 mm
-
14516002666 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
