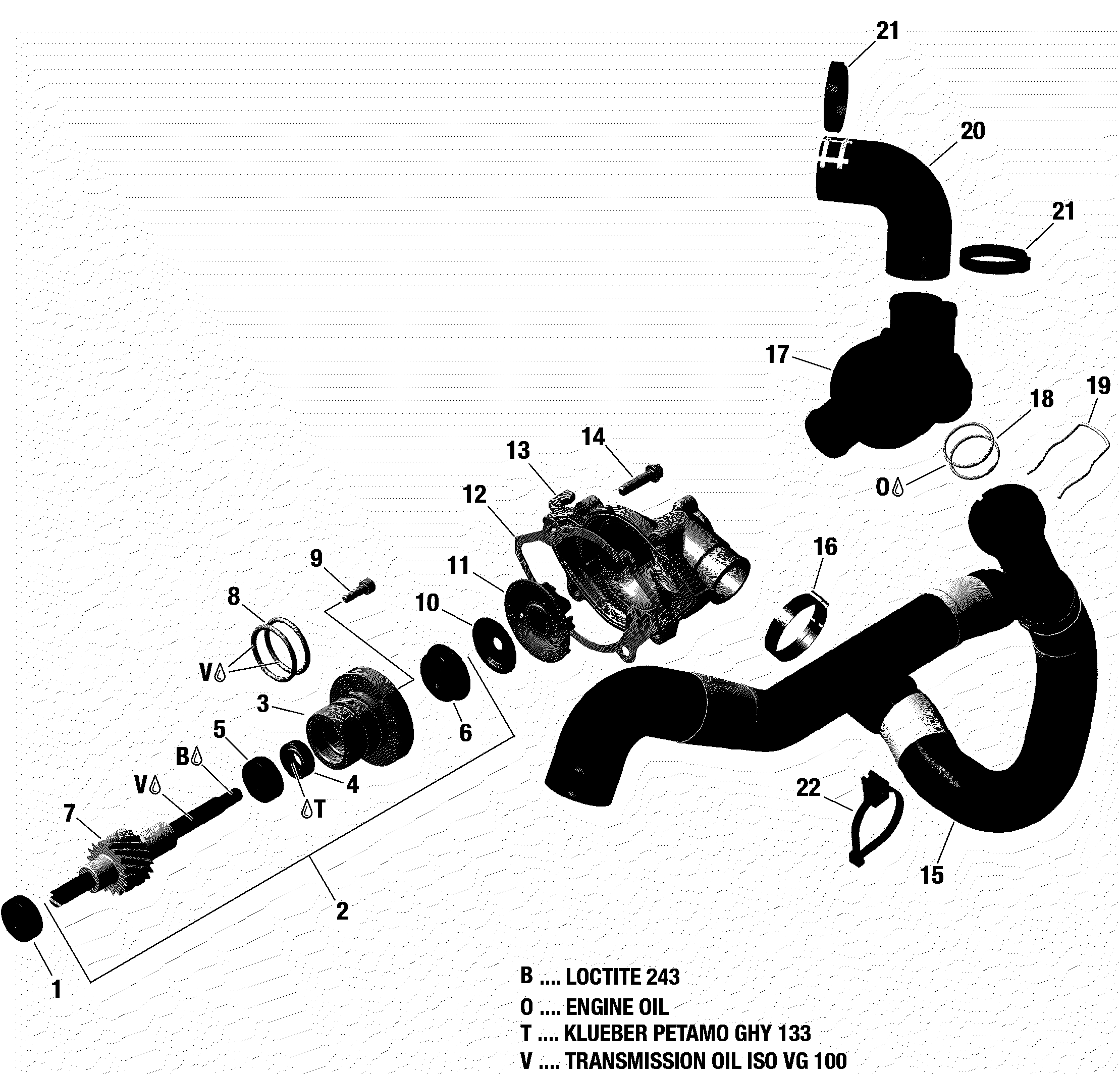

01- Engine Cooling - 598 RS для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
![](/wa-data/public/shop/sheme/bombardier/ski-doo/e25bd4c3-2c67-4528-9936-b8c3d10b1719.png)
-
№АртикулНазвание
-
1420232100 Ball BearingBall Bearing
-
2>8420891479 Water Pump ShaftWater Pump Shaft
-
3420847933 Step CollarStep Collar
-
4420230198 Oil SealOil Seal
-
5420232100 Ball BearingBall Bearing
-
6420650370 Rotary SealRotary Seal
-
8420950890 O-RingO-Ring
-
9420840514 Allen Screw M5 x 16Allen Screw M5 x 16
-
10420944035 Cover WasherCover Washer
-
11420222507 ImpellerImpeller
-
12420931812 GasketGasket
-
13420933633 Water Pump HousingWater Pump Housing
-
14420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420822803 Molded HoseMolded Hose
-
16420951293 Gear ClampGear Clamp
-
17420822837 Thermostat HousingThermostat Housing
-
18420430062 O-RingO-Ring
-
19420939344 Spring ClipSpring Clip
-
20420822820 Hose ReturnHose Return
-
21420951123 Clamp 34.9-38.1MMClamp 34.9-38.1MM
-
22420951652 Tie Rap 200 X 4.6Tie Rap 200 X 4.6
