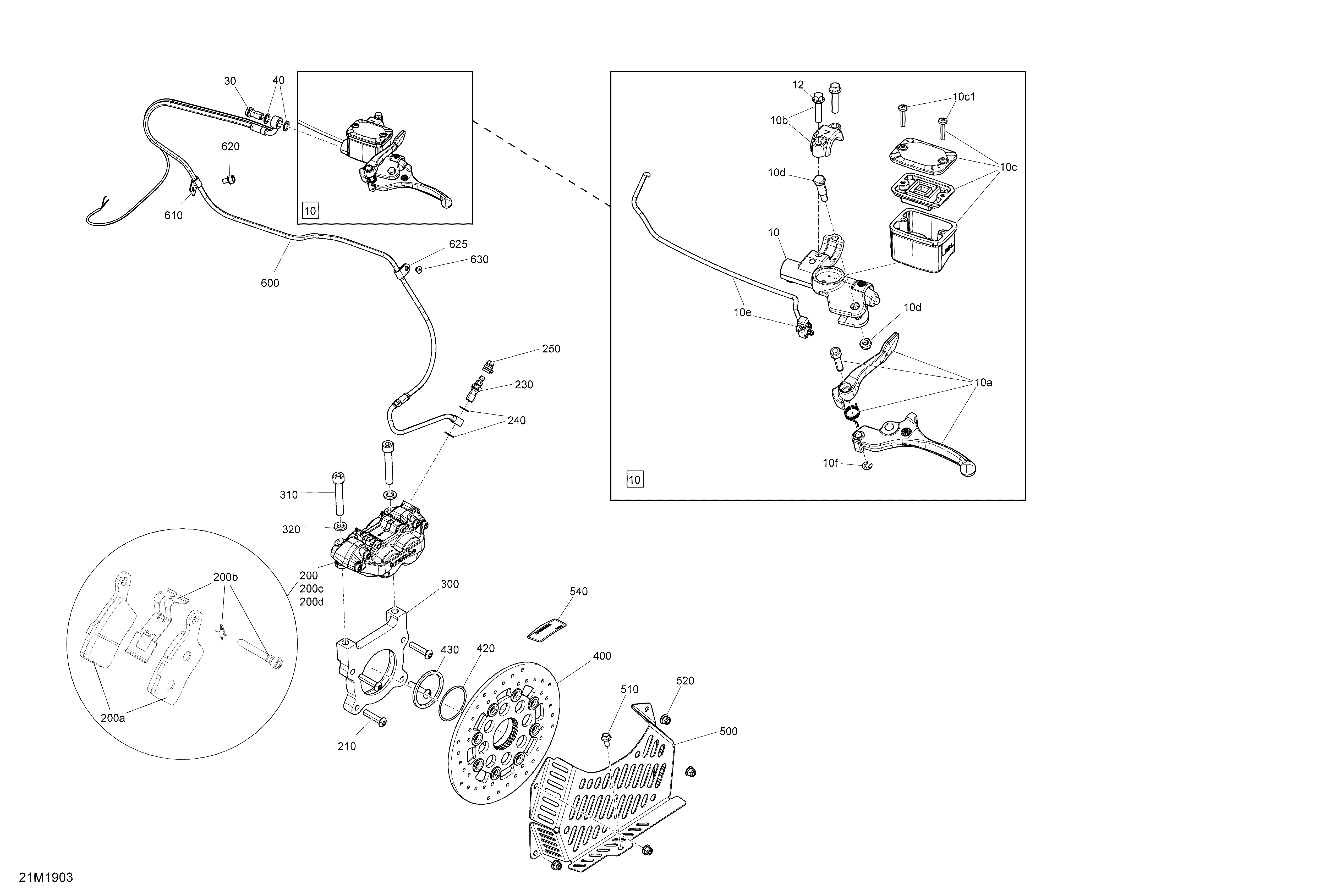

06- Brakes - 600 Racing для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
10507032614 Cylinder Master. Includes 10 to 10fCylinder Master. Includes 10 to 10f
-
10a507032476 Lever With Parking LockLever With Parking Lock
-
10b507032477 Clamp And Screw KitClamp And Screw Kit
-
10c507032478 Master Cylinder Reservoir Ass'y. Includes 10c to 10c1Master Cylinder Reservoir Ass'y. Includes 10c to 10c1
-
10c1415129356 Screw M4 X 20Screw M4 X 20
-
10d415030000 Pin Ass'yPin Ass'y
-
10e507032601 MicroswitchMicroswitch
-
10f414439000 CirclipCirclip
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30507032551 Banjo BoltBanjo Bolt
-
40705601628 Copper WasherCopper Washer
-
200507032613 Brake Caliper Ass'y. Includes 200 to 200dBrake Caliper Ass'y. Includes 200 to 200d
-
200a507032615 Brake Pads KitBrake Pads Kit
-
200b507032616 Pin & Spring KitPin & Spring Kit
-
200c507032617 Spring Plate. Not ShownSpring Plate. Not Shown
-
200d507032618 Spring Clips. Not ShownSpring Clips. Not Shown
-
210250000971 Screw-torx Button Head M8 X 35Screw-torx Button Head M8 X 35
-
230705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
240705601628 Copper WasherCopper Washer
-
250705601190 Bleeder Bolt CapBleeder Bolt Cap
-
300507032647 Brake Caliper SupportBrake Caliper Support
-
310244006060 Socket Screw M10 X 60Socket Screw M10 X 60
-
320503192496 WasherWasher
-
400507032643 Disc Brake Ass'yDisc Brake Ass'y
-
420293300134 O-RingO-Ring
-
430507032612 SpacerSpacer
-
500507032646 Disc Brake GuardDisc Brake Guard
-
510207661254 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
520233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
540516007652 Engine Guard Warning DecalEngine Guard Warning Decal
-
600507032649 Brake HoseBrake Hose
-
610414108400 Open ClampOpen Clamp
-
620210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
625293650257 ClampClamp
-
630293150231 Blind Rivet 3/16Blind Rivet 3/16
