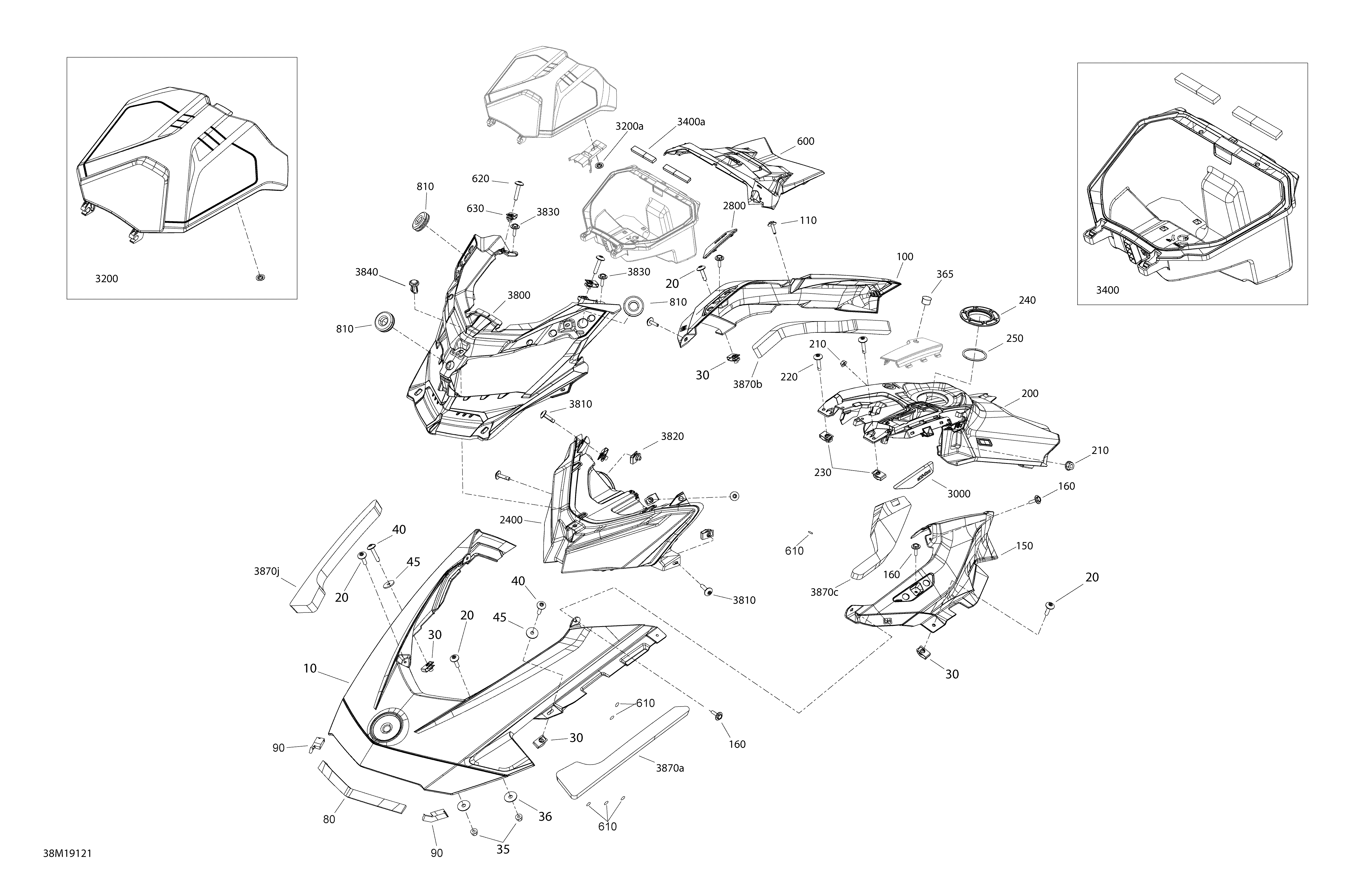

09- Hood - 600 Racing - Europe - Hood для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
![](/wa-data/public/shop/sheme/bombardier/ski-doo/124cabd3-6699-4867-af55-ffd7ca8098a3.png)
-
№АртикулНазвание
-
10517305744 Black, Front HoodBlack, Front Hood
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233151414 Nut Flange Hex. M5Nut Flange Hex. M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
45250200166 WasherWasher
-
80517306592 Front Hood FoamFront Hood Foam
-
90517306593 Hood FoamHood Foam
-
100517306722 RH HoodRH Hood
-
110250000725 Screw M4 X 16Screw M4 X 16
-
150517306721 LH HoodLH Hood
-
160250000725 Screw M4 X 16Screw M4 X 16
-
200517306898 Rear ConsoleRear Console
-
210233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517306602 Console NutConsole Nut
-
250706002839 O-RingO-Ring
-
365572051500 CapCap
-
600517305782 Indicator SupportIndicator Support
-
610518325560 Adhesive PatchAdhesive Patch
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
810517303756 GrommetGrommet
-
2400517306983 Low Beam Ass'yLow Beam Ass'y
-
2500517306984 High Beam Ass'yHigh Beam Ass'y
-
2800517306049 RH Hood PlateRH Hood Plate
-
3000517306050 LH Hood PlateLH Hood Plate
-
3200517305871 Cover Ass'y, Deep Black. Includes 3200 to 3200aCover Ass'y, Deep Black. Includes 3200 to 3200a
-
3200a732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 to 3400aTrunk Ass'y. Includes 3400 to 3400a
-
3400a517305157 Seal JointSeal Joint
-
3800517305746 Deep Black, Headlamp FairingDeep Black, Headlamp Fairing
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3870a517305764 LH Front Hood FoamLH Front Hood Foam
-
3870b517306001 RH Hood FoamRH Hood Foam
-
3870c517306002 LH Hood FoamLH Hood Foam
-
3870j517305763 RH Front Hood FoamRH Front Hood Foam
