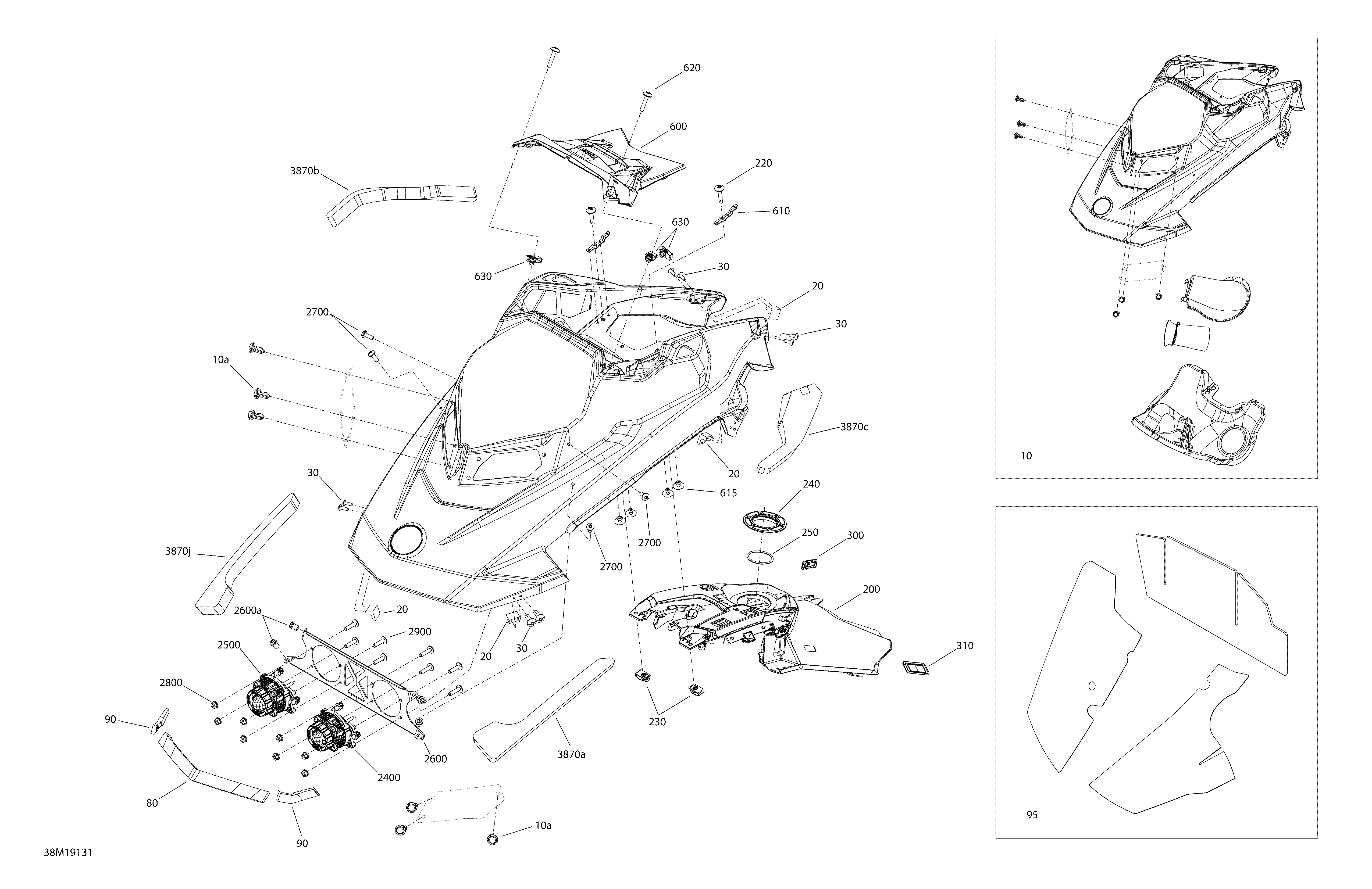

09- Hood - 600 Racing - North America - Hood для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
10517306920 Hood Ass'y. Includes 10 to 10aHood Ass'y. Includes 10 to 10a
-
10a293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
20517307050 HookHook
-
30250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
80517306592 Front Hood FoamFront Hood Foam
-
90517306593 Hood FoamHood Foam
-
95517307074 FoilFoil
-
200517306898 Rear ConsoleRear Console
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517306602 Console NutConsole Nut
-
250706002839 O-RingO-Ring
-
300517306587 RH CapRH Cap
-
310517306588 LH CapLH Cap
-
600517305782 Indicator SupportIndicator Support
-
610517306967 HookHook
-
615293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2400517306983 Low Beam Ass'yLow Beam Ass'y
-
2500517306984 High Beam Ass'yHigh Beam Ass'y
-
2600517307035 Bracket. Includes 2600 to 2600aBracket. Includes 2600 to 2600a
-
2600A293450268 Insert M5 X 0.8Insert M5 X 0.8
-
2700250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
2800233151414 Nut Flange Hex. M5Nut Flange Hex. M5
-
2900250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
3870a517305764 LH Front Hood FoamLH Front Hood Foam
-
3870b517306001 RH Hood FoamRH Hood Foam
-
3870c517306002 LH Hood FoamLH Hood Foam
-
3870j517305763 RH Front Hood FoamRH Front Hood Foam
