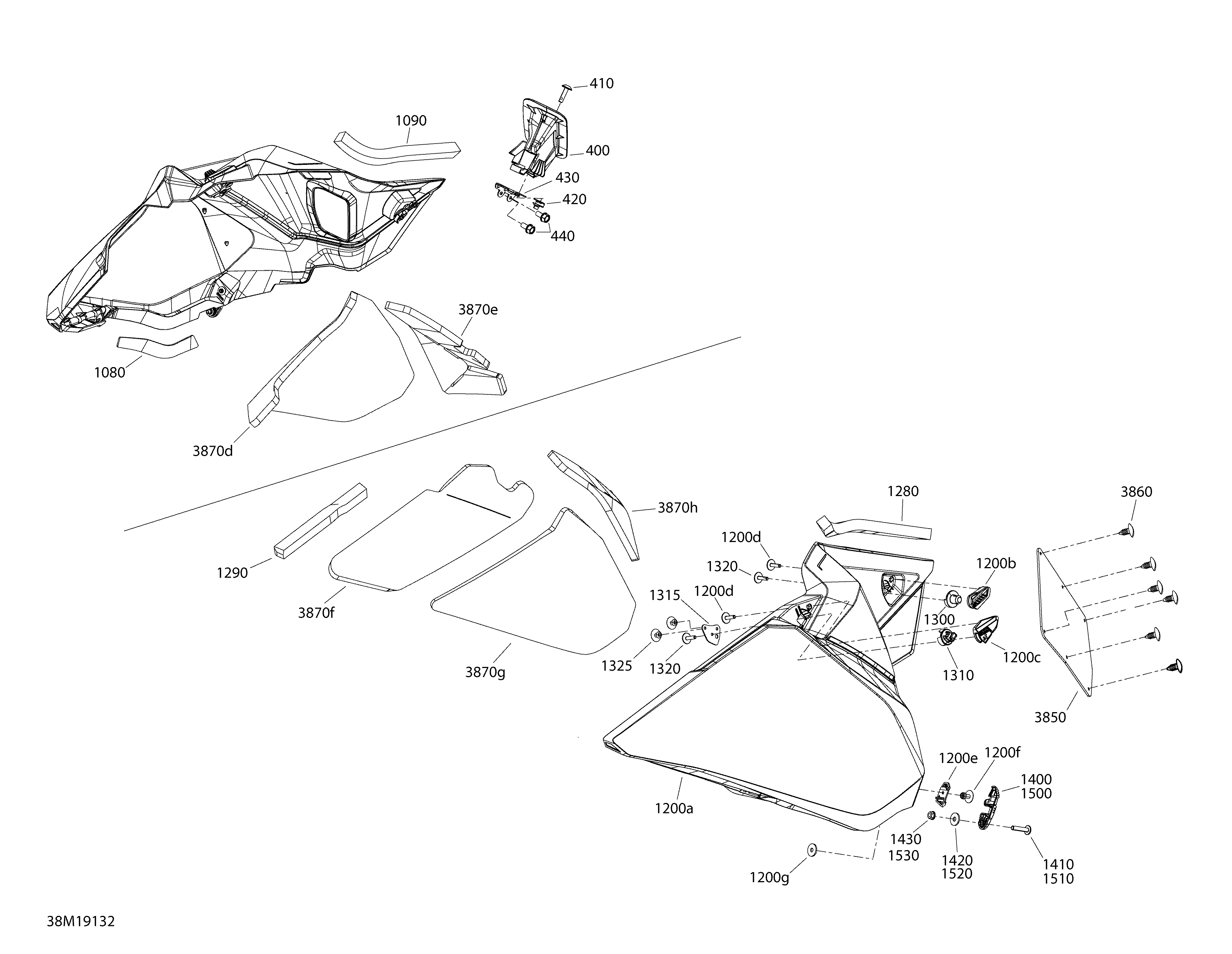

09- Hood - 600 Racing - North America - Panel для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
400517306759 RH ConsoleRH Console
-
410250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
420250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
430517306315 Rope GuideRope Guide
-
440210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
1200a517306871 RH PanelRH Panel
-
1200b517305773 RH Rear LatchRH Rear Latch
-
1200c517305979 RH Front LatchRH Front Latch
-
1200d250000725 Screw M4 X 16Screw M4 X 16
-
1200e517306311 RH HookRH Hook
-
1200f293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200g517124300 WasherWasher
-
1080517306262 Rubber SheetRubber Sheet
-
1090517306480 RH Rear Panel FoamRH Rear Panel Foam
-
1200a517306985 LH PanelLH Panel
-
1200b517305774 LH Rear LatchLH Rear Latch
-
1200c517305980 LH Front LatchLH Front Latch
-
1200d250000725 Screw M4 X 16Screw M4 X 16
-
1200e517306312 LH HookLH Hook
-
1200f293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200g517124300 WasherWasher
-
1280517306479 LH Rear Panel FoamLH Rear Panel Foam
-
1290517306594 FoamFoam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1315517306968 PlatePlate
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1325293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
1400517306309 RH Lower LatchRH Lower Latch
-
1410250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1420250200140 WasherWasher
-
1430233151414 Nut Flange Hex. M5Nut Flange Hex. M5
-
1500517306310 LH Lower LatchLH Lower Latch
-
1510250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
1520250200140 WasherWasher
-
1530233151414 Nut Flange Hex. M5Nut Flange Hex. M5
-
3850517306595 Panel PlatePanel Plate
-
3860414644300 DartDart
-
3870d517306188 RH Central Panel FoamRH Central Panel Foam
-
3870e517306586 RH Rear Panel FoamRH Rear Panel Foam
-
3870f517305769 LH Front Panel FoamLH Front Panel Foam
-
3870g517306189 LH Central Panel FoamLH Central Panel Foam
-
3870h517305771 LH Rear Panel FoamLH Rear Panel Foam
