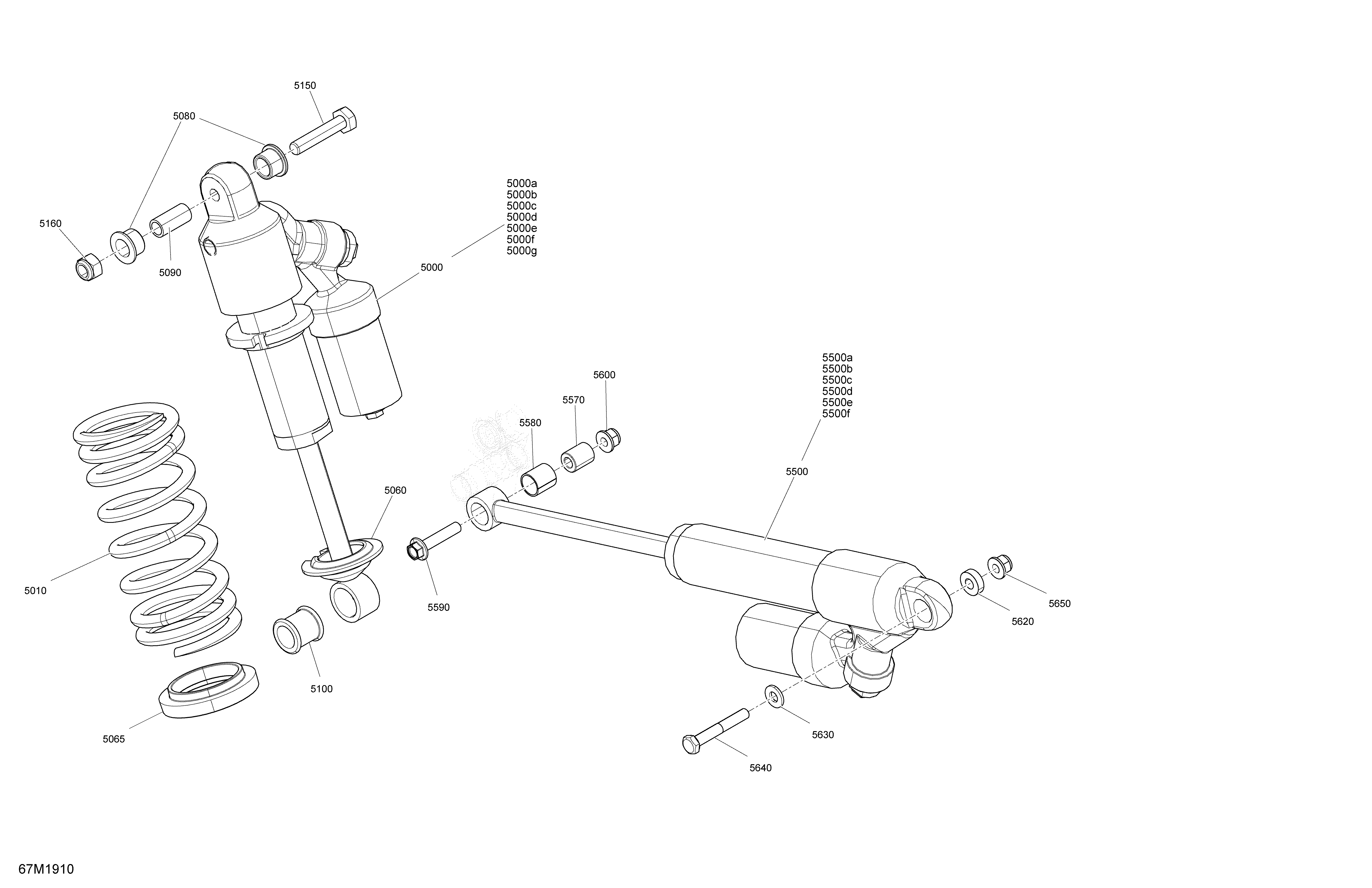

08- Rear Shocks - 600 Racing для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
5000503195333 Center Shock. Includes 5000 to 5000gCenter Shock. Includes 5000 to 5000g
-
5000a415093807 O-RingO-Ring
-
5000b415093806 Piston RingPiston Ring
-
5000c505070398 Air ValveAir Valve
-
5000d505070399 ScrewScrew
-
5000e505070400 O-RingO-Ring
-
5000f715900076 Circlip En CCirclip En C
-
5000g415093804 O-RingO-Ring
-
5010503195390 SpringSpring
-
5060503190271 Spring StopperSpring Stopper
-
5065503192743 Spring SpacerSpring Spacer
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5150207005044 Hex. Screw M10 X 1.5 X 50Hex. Screw M10 X 1.5 X 50
-
5160233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
5500503195334 Rear Shock. Includes 5500 to 5500fRear Shock. Includes 5500 to 5500f
-
5500a415093806 Piston RingPiston Ring
-
5500b505070398 Air ValveAir Valve
-
5500c505070399 ScrewScrew
-
5500d505070400 O-RingO-Ring
-
5500e715900076 Circlip En CCirclip En C
-
5500f415093804 O-RingO-Ring
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5620503190526 SpacerSpacer
-
5630503192494 WasherWasher
-
5640207085556 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
5650233281466 Elastic Flang Nut M8Elastic Flang Nut M8
