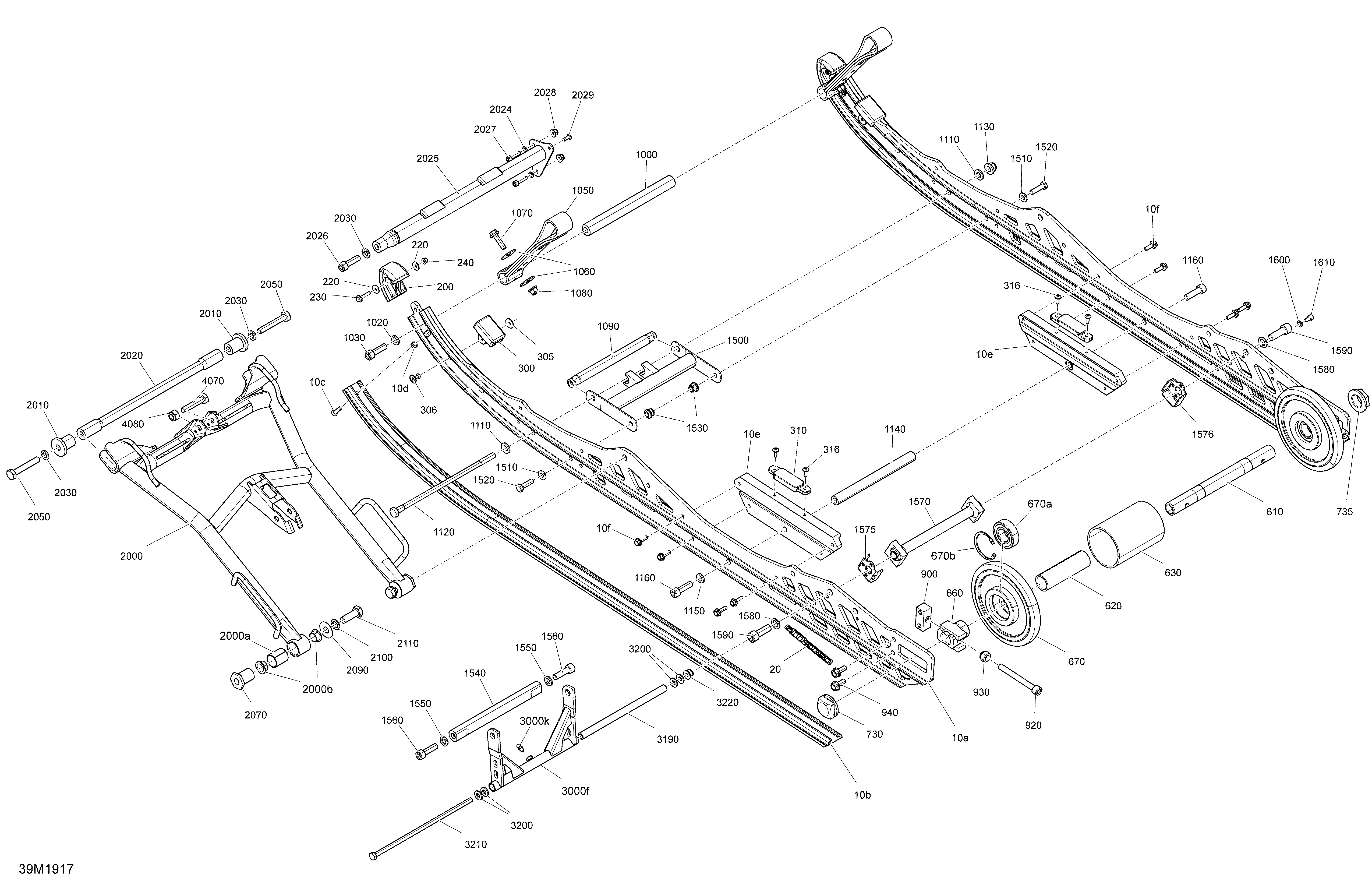

08- Rear Suspension - 600 Racing Lower Parts для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
10a503195317 RunnerRunner
-
10b503191499 Black Slider Shoe 146''Black Slider Shoe 146''
-
10c208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10d232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10e503194559 Rail ReinforcementRail Reinforcement
-
10f207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
20516007816 Runner DecalRunner Decal
-
200503192299 Runner ProtectorRunner Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
240233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503190263 Rail StopperRail Stopper
-
316250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
610503193692 Rear AxleRear Axle
-
620503156000 Center SpacerCenter Spacer
-
630503193693 BushingBushing
-
660503193694 SpacerSpacer
-
670503194127 Wheel 165''. Includes 670 to 670bWheel 165''. Includes 670 to 670b
-
670a293350055 Ball BearingBall Bearing
-
670b415129371 Retaining RingRetaining Ring
-
730503193695 NutNut
-
735503193696 NutNut
-
900503193697 TensionerTensioner
-
920205009087 Socket Head ScrewSocket Head Screw
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
1000503192715 Limit AxleLimit Axle
-
1020503192496 WasherWasher
-
1030205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1050503192360 Stopper StrapStopper Strap
-
1060250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1070207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1090503193435 Pivot AxlePivot Axle
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1140503195355 AxeAxe
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1500503194129 ReinforcementReinforcement
-
1510503192494 WasherWasher
-
1520207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
1530233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1540503192715 Limit AxleLimit Axle
-
1550503192496 WasherWasher
-
1560205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1570503194161 Cam AxleCam Axle
-
1575503194162 PlatePlate
-
1576503194163 PlatePlate
-
1580503192491 WasherWasher
-
1590205523587 Socket Head Screw Scotch Grip Din.912Socket Head Screw Scotch Grip Din.912
-
1600234161471 Lock Washer M6, BlackLock Washer M6, Black
-
1610205061260 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
2000503195324 Front Arm Ass'y. Includes 2000 to 2000bFront Arm Ass'y. Includes 2000 to 2000b
-
2000a503191554 BushingBushing
-
2000b503191555 Swivel BushingSwivel Bushing
-
2010503192721 BushingBushing
-
2020503192713 Slide BushingSlide Bushing
-
2024514053953 WasherWasher
-
2025503195016 AxleAxle
-
2026205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
2027205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
2028233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
2029293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
2030503192496 WasherWasher
-
2050207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
2070503191966 Lower AxleLower Axle
-
2090503190656 WasherWasher
-
2100503192491 WasherWasher
-
2110250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
3000f503194566 Pivot ArmPivot Arm
-
3000k408200700 Grease FittingGrease Fitting
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4070205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
4080233601466 Elastic Locking Nut M10Elastic Locking Nut M10
